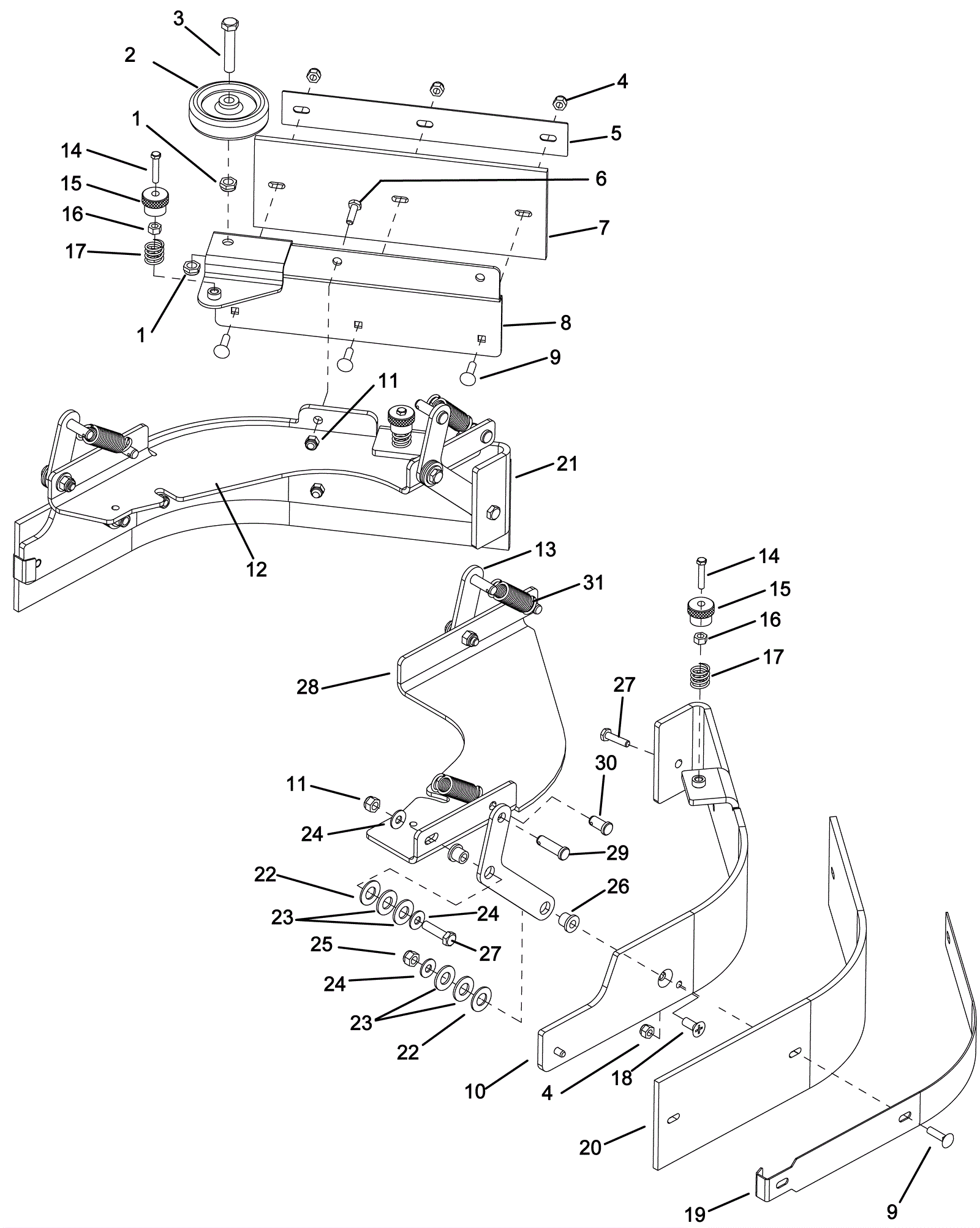

SABERGLIDE 32 Scrub Deck Skirt Assembly - 36 inch

#PartDescriptionPriceReqNotesAvailability
1 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
2 189-0326 Bumper wheel $29.04 1 usually ships 11-24 days
3 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 1 ships same day
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 9 ships same day
5 273-1029 Secondary squeegee strap $29.59 1 usually ships 1-5 days
6 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
7 173-8624 Squeegee blade side $113.30 1 usually ships 1-5 days
8 173-8438 Bracket $106.15 1 usually ships 1-5 days
9 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 9 ships same day
10 273-1030 Left squeegee plate $273.90 1 usually ships 1-5 days
11 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
12 273-1031 Right squeegee plate $130.90 1 usually ships 7-19 days
13 273-0998 Skirt linkage arm $26.73 4 usually ships 1-5 days
14 999-0911 Screw 5/16-18 x 3 hex head stainless steel $4.75 3 ships same day
15 173-4184 Knob $67.10 3 usually ships 7-19 days
16 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
17 173-3384 Compression spring $15.18 3 usually ships 1-5 days
18 999-1393 Screw 5/16-18 x 1 flat head phillips stainless steel $2.55 2 ships same day
19 173-8441 Squeegee side strap $43.01 2 usually ships 1-5 days
20 173-8440 Squeegee side blade linatex $194.70 2 usually ships 7-19 days
21 173-8439 Squeegee plate $251.90 1 usually ships 1-5 days
22 173-3964 Thrust washer $6.44 8 ships same day
23 999-0566 Washer 1/2 flat nylon $0.99 16 ships same day
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
25 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
26 173-3116 Flanged bearing $8.47 8 usually ships 7-19 days
27 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 6 ships same day
28 273-1032 Left squeegee plate $111.10 1 usually ships 1-5 days
29 173-9499 Clevis pin $7.81 4 usually ships 1-5 days
30 173-3378 Clevis pin $6.88 4 usually ships 1-5 days
31 173-8442 Extension spring $27.45 4 usually ships 7-19 days
