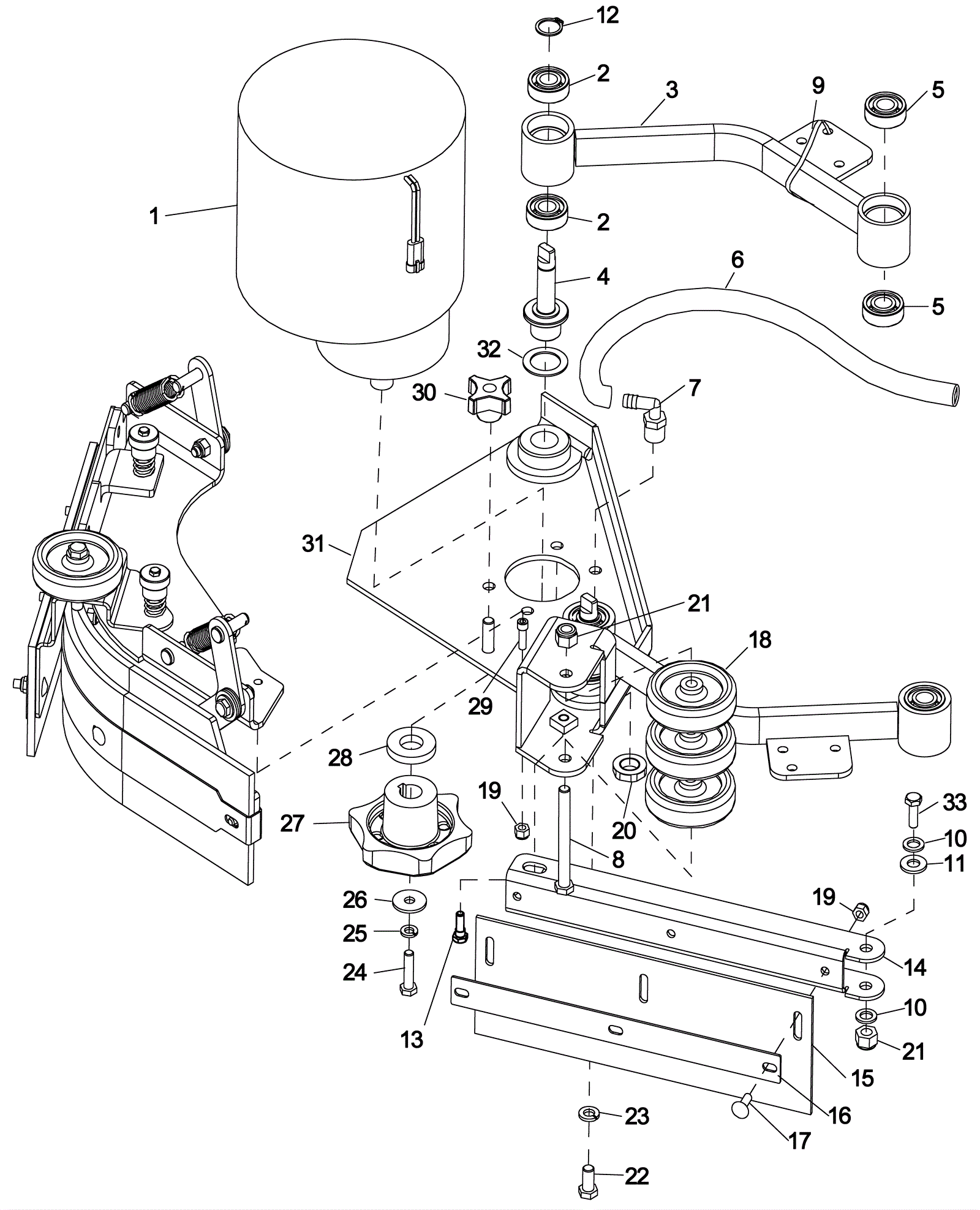

SABERGLIDE 32 Retractable Scrub Deck Assembly - 36 inch

#PartDescriptionPriceReqNotesAvailability
1a 273-6108 36V brush motor $1,551.00 1 usually ships 1-5 days
1b 173-1576 Carbon brush (pkg of 4) $78.10 1 ships same day
2 173-1753 Bearing $86.90 4 usually ships 1-5 days
3 273-1022 Swing linkage $391.60 2 usually ships 1-5 days
4 173-1751 Drive cylindrical scrub shaft $146.30 2 usually ships 1-5 days
5 273-1023 Ball bearing $46.75 4 usually ships 1-5 days
6 173-0569 Hose assembly $3.87 1 usually ships 7-19 days
7 173-1572 Hosebarb 3/8 x 3/8 inch $9.96 1 ships same day
8 999-0796 Bolt 3/8-16 x 3 3/4 hex head stainless steel $2.32 1 ships same day
9 173-3169 Wire tie $1.03 1 usually ships 1-5 days
10 999-1416 Washer 7/16 flat stainless steel $0.99 2 ships same day
11 173-3944 Washer 2/5 nylon $2.00 1 usually ships 1-5 days
12 173-3507 Retainer ring $3.03 2 usually ships 1-5 days
13 999-1392 Bolt 3/8 x 3/8 shoulder stainless steel $12.45 1 ships same day
14 273-1025 Swing skirt channel bracket $83.05 1 usually ships 1-5 days
15 273-0948 Swing blade skirt $59.96 1 usually ships 7-19 days
16 273-1026 Swing skirt strap $21.49 1 usually ships 1-5 days
17 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 ships same day
18 189-0326 Bumper wheel $29.04 3 usually ships 11-24 days
19 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
20 173-4130 Nut 3/8 plastic nickel plated thread (OBSOLETE) $12.98 1 usually ships 7-19 days
21 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
22 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
23 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
24 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
25 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
26 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
27 173-1569 Star drive hub $113.32 1 usually ships 7-19 days
28 173-2569 Washer .77 x 1.31 flat stainless steel $7.32 1 usually ships 7-19 days
29 999-0338 Screw 1/4-20 x 1/2 socket head shoulder $8.75 1 ships same day
30 173-1025 Knob $21.12 1 usually ships 7-19 days
31 273-1027 Deck swing assembly $359.70 1 usually ships 1-5 days
32 173-7174 Washer 1-1/64 x 2 x 5/64 pleated $14.30 2 usually ships 1-5 days
33 999-9076 Screw 3/8 -16 x 2 1/4 hex head stainless steel $1.38 1 ships same day
