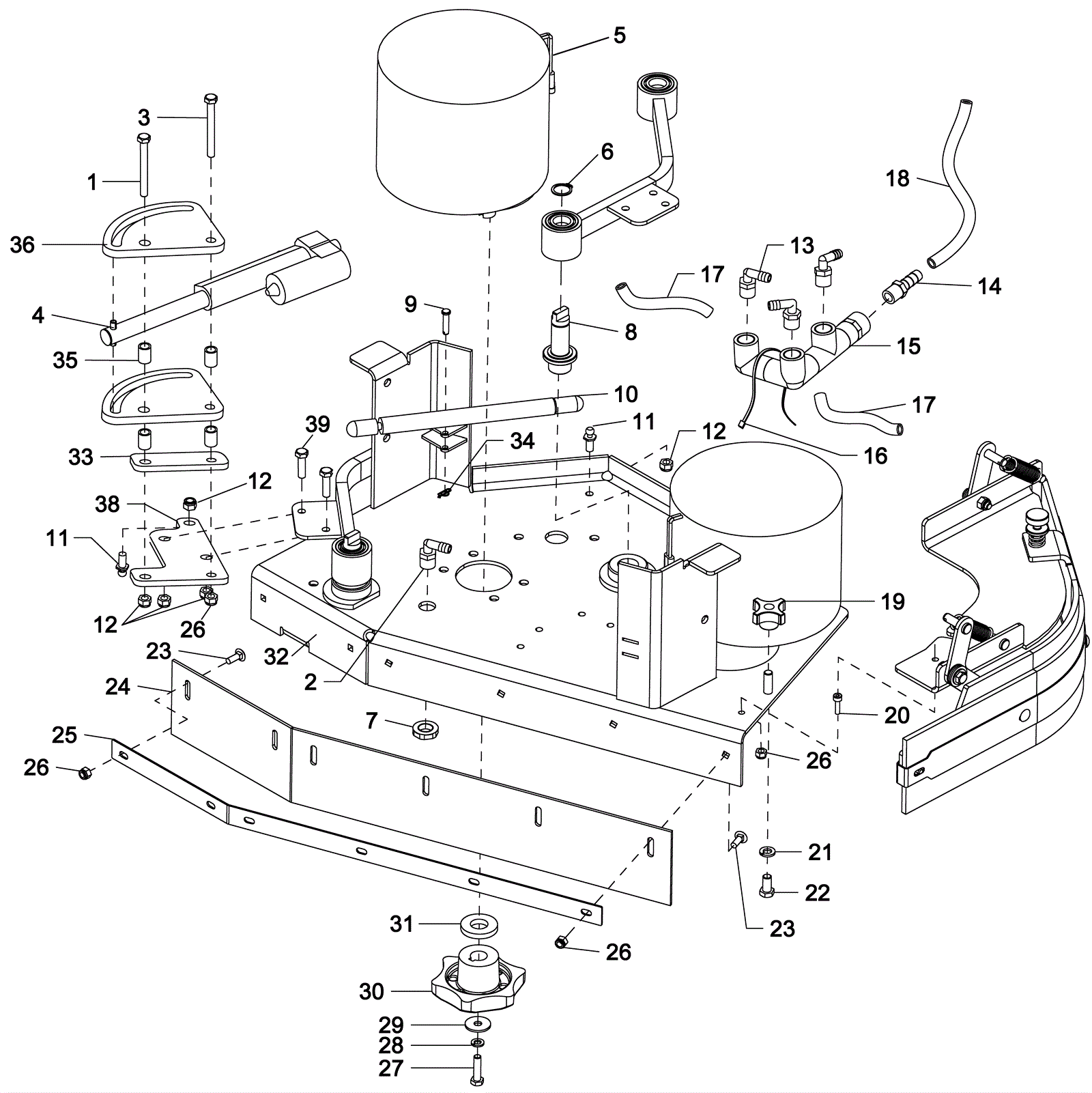

Main Scrub Deck Assembly - 36 inch

#PartDescription ReqNotesAvailability
1 999-0911 Screw 5/16-18 x 3 hex head stainless steel 1
2 173-1572 Hosebarb 3/8 x 3/8 inch 2
3 999-1096 Bolt 1/4-20 x 3 hex head stainless steel 1
4 273-1013 Actuator assembly 1
5a 273-6108 36V brush motor (OBSOLETE) 2
5b 173-1576 Carbon brush (pkg of 4) 1
6 173-4748 External snap ring (OBSOLETE) 2
7 173-4130 Nut 3/8 plastic nickel plated thread (OBSOLETE) 2
8 273-1014 Pivot shaft 2
9 173-9503 Clevis pin 1
10 273-1015 300 newtons gas spring 1
11 173-4089 Gas spring ball stud 2
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel 5
13 273-1016 90 degree fitting 1/2 x 3/8 inch 3
14 173-3396 Hosebarb 1
15 173-4133 Solution feed manifold 1
16 173-3169 Wire tie 2
17 173-4933 Nylon braided hose 3/8 x 7 1/2 inch 2
18 173-3054 Nylon braided hose 1
19 173-1025 Knob 1
20 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 1
21 999-0034 Washer 3/8 split lock plain finish 8
22 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
23 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 6
24 273-0947 Front skirt gum rubber 1
25 273-1017 Front skirt strap 1
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
27 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
28 999-0028 Washer 5/16 split lock plain finish 2
29 999-1364 Washer 5/16 x 1 fender zinc finish 2
30 173-1569 Star drive hub 2
31 173-2569 Washer .77 x 1.31 flat stainless steel 2
32 173-8632 36 inch scrub deck 1
33 273-1018 Spacer plate 1
34 173-1130 Cotter ring 1
35 273-1019 Spacer 4
36 273-1020 Actuator retainer plate 2
38 273-1021 Actuator retainer bracket 1
39 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 2
