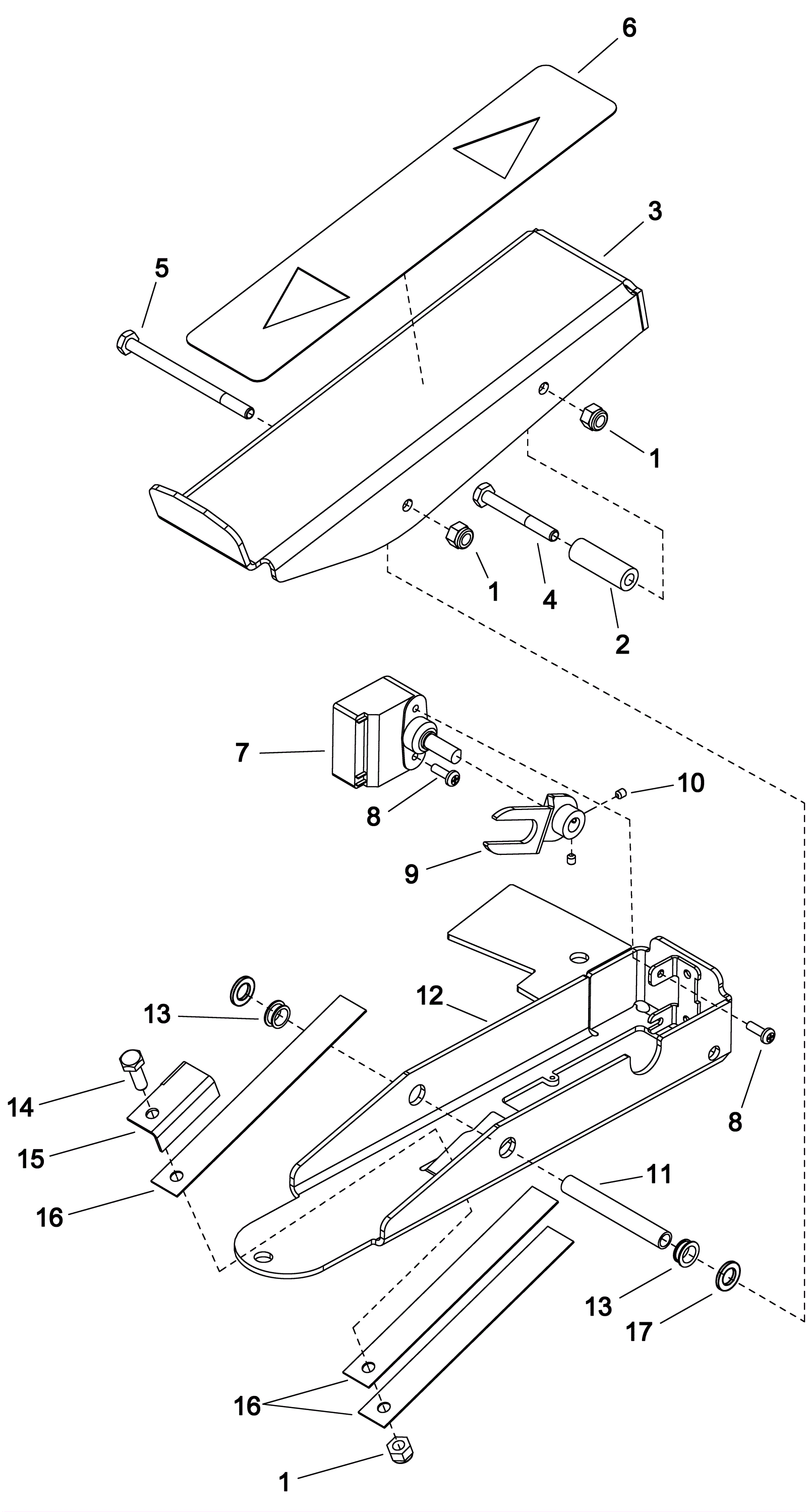

SABERGLIDE 32 Forward and Reverse Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
2 273-0981 Spacer(OBSOLETE) $5.28 1 usually ships 7-19 days
3 273-0982 Pedal $77.00 1 usually ships 1-5 days
4 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 1 ships same day
5 999-0912 Bolt 1/4-20 x 3 1/2 18-8 hex head stainless steel $1.27 1 ships same day
6 273-0984 Pedal pad $19.58 1 usually ships 1-5 days
7 273-0985 Throttle potentimeter (OBSOLETE) $426.80 1 usually ships 7-19 days
8 999-1386 Screw 8-18 x 1/2 pan head phillips type b zinc $1.87 2 ships same day
9 273-0987 Throttle link $88.00 1 usually ships 7-19 days
10 999-9156 Screw M4-.7 x 4mm cup point set $0.99 2 usually ships 11-24 days
11 273-0988 Tube (OBSOLETE) $34.21 1 usually ships 7-19 days
12 273-0989 Pedal base $141.90 1 usually ships 1-5 days
13 173-3275 Flanged bearing $6.11 2 ships same day
14 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
15 173-3582 Spring alignment bracket $36.52 1 usually ships 7-19 days
16 173-3273 Flat spring $41.58 3 ships same day
17 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
