TITAN 20

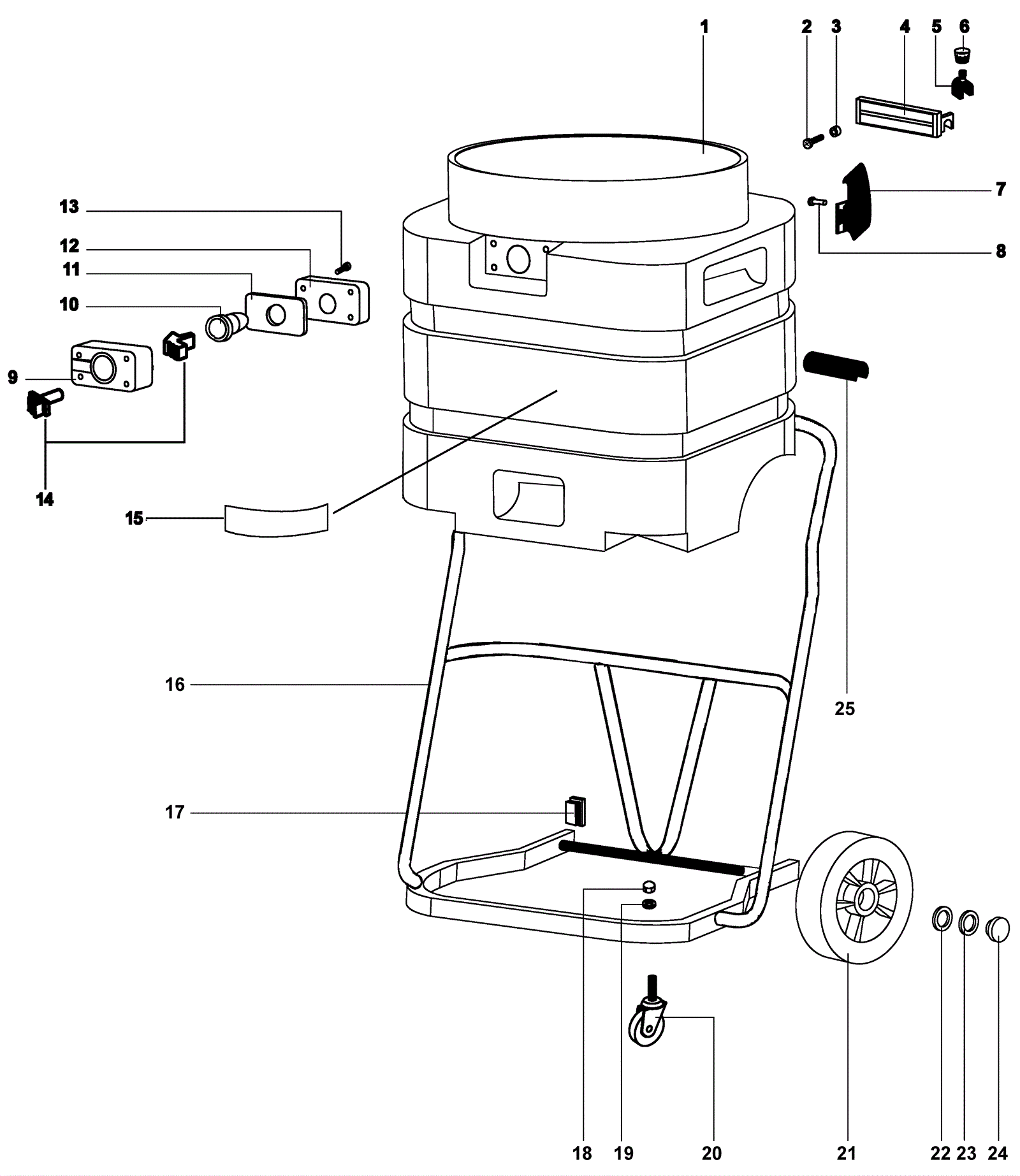

Tank and Cart Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
N/S
273-5407
2 piece curved wand
$119.90
usually ships 7-19 days
1
173-4279
Tank
$478.50
1
usually ships 1-5 days
2
203-0307
Screw M5 x 30mm
$0.99
4
usually ships 1-5 days
3
203-0341
Washer plastic
$1.36
4
usually ships 1-5 days
4
173-4280
Latch hook
$14.33
1
usually ships 7-19 days
5
203-0367
Swivel
$2.27
2
usually ships 1-5 days
6
203-0368
Release knob
$0.99
2
usually ships 1-5 days
7
203-0306
Latch
$8.45
2
usually ships 5-15 days
8
203-0340
Rivet
$0.99
4
ships same day
9
203-0339
Hose adapter
$15.85
1
usually ships 5-15 days
10
203-0311
Deflector
$6.93
1
ships same day
11
203-0308
Gasket
$3.65
1
usually ships 5-15 days
12
203-0364
Tank adapter
$3.08
1
ships same day
13
203-0320
Screw M5 x 35mm
$1.34
4
usually ships 5-15 days
14
203-0312
Push button
$0.99
1
usually ships 5-15 days
15
173-4269
Titan decal
$23.98
1
usually ships 1-5 days
16
173-4281
Base
$734.80
1
usually ships 7-19 days
17
203-0370
Plug
$0.99
2
usually ships 1-5 days
18
203-0372
Nut M10
$2.19
2
usually ships 1-5 days
19
203-0371
Washer M10
$0.99
2
usually ships 1-5 days
20
203-0373
Caster wheel
$20.19
2
usually ships 5-15 days
21
173-5406
Wheel
$102.30
2
usually ships 7-19 days
22
173-4282
Washer
$9.46
2
usually ships 1-5 days
23
173-4283
Plastic retainer
$7.21
2
usually ships 1-5 days
24
173-4284
Cap
$6.44
2
usually ships 1-5 days
25
203-0360
Handle grip
$1.78
2
usually ships 5-15 days
