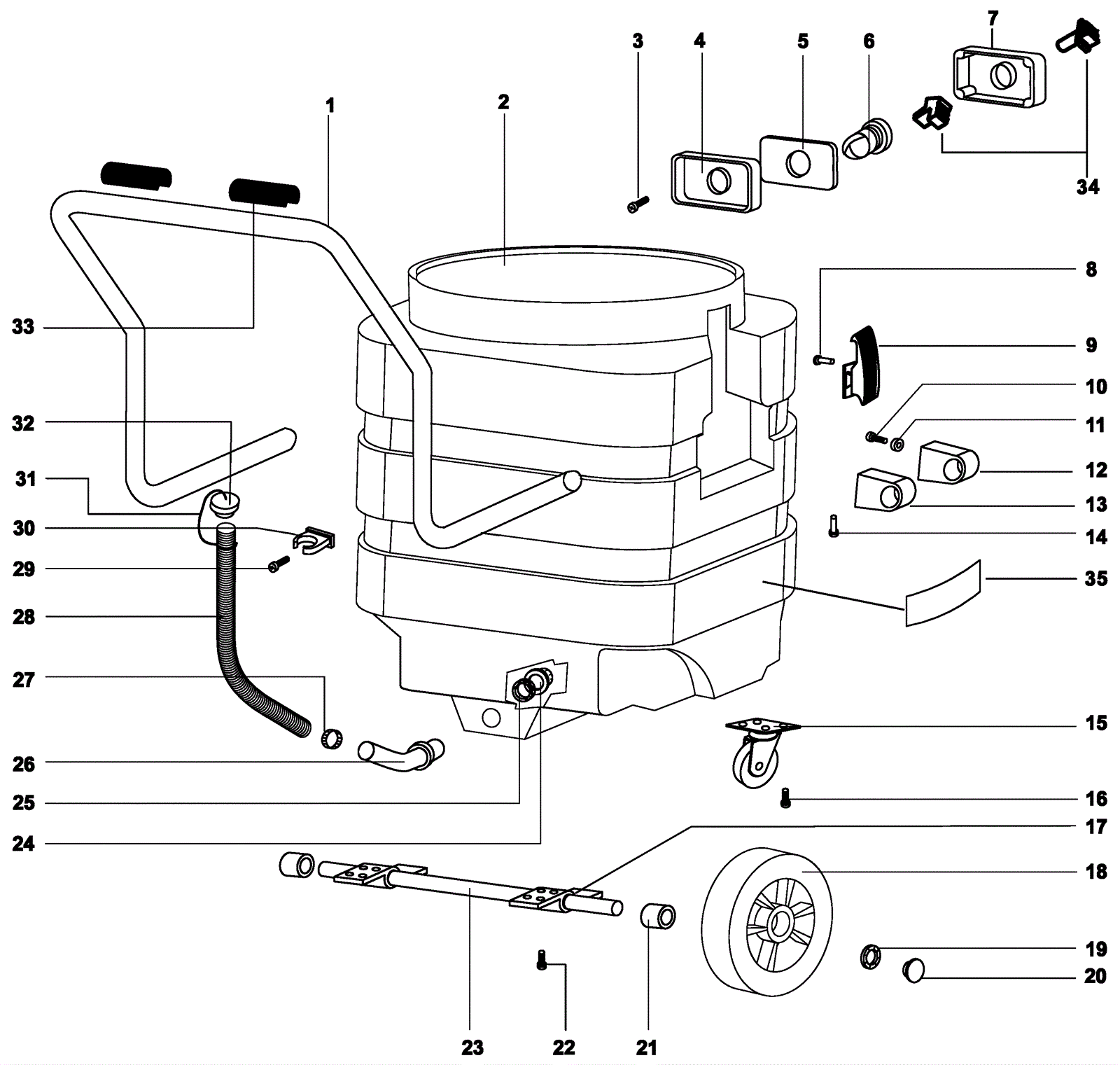

TITAN T716 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-0336 Handle $76.82 1 usually ships 1-5 days
2 203-0337 Tank $304.94 1 usually ships 5-15 days
3 N/A Not available Call for price 4 (Screw M5 x 30mm, obsolete) usually ships 3-26 days
4 203-0338 Tank retainer $4.75 1 usually ships 5-15 days
5 203-0308 Gasket $3.65 1 usually ships 5-15 days
6 203-0311 Deflector $6.93 1 ships same day
7 203-0339 Hose adapter $15.85 1 usually ships 5-15 days
8 203-0340 Rivet $0.99 4 ships same day
9 203-0306 Latch $8.45 2 usually ships 5-15 days
10 203-0320 Screw M5 x 35mm $1.34 8 usually ships 5-15 days
11 203-0341 Washer plastic $1.36 8 usually ships 1-5 days
12 203-0342 Left side handle support $3.12 2 usually ships 1-5 days
13 203-0343 Right side handle support (OBSOLETE) $2.81 2 usually ships 1-5 days
14 203-0305 Rivet M5 x 19mm $0.99 2 usually ships 1-5 days
15 203-0344 Caster wheel $18.91 2 usually ships 5-15 days
16 203-0315 Screw M4 x 15mm $0.99 8 usually ships 5-15 days
17 203-0345 Axle support $31.15 2 usually ships 5-15 days
18 203-0346 Wheel $31.14 2 usually ships 5-15 days
19 203-0347 End cap $1.56 2 usually ships 5-15 days
20 203-0348 Axle cap $1.56 2 ships same day
21 203-0349 Wheel spacer $0.99 2 usually ships 1-5 days
22 203-0276 Screw M5 x 20mm $0.99 8 usually ships 5-15 days
23 203-0350 Axle $15.72 1 usually ships 1-5 days
24 203-0351 Nut flange $5.64 1 usually ships 1-5 days
25 203-0352 Gasket $3.38 1 usually ships 1-5 days
26 203-0353 Elbow $16.29 1 usually ships 1-5 days
27 203-4620 Clamp $1.84 1 usually ships 5-15 days
28 203-0355 Drain hose $22.69 1 usually ships 5-15 days
29 203-0356 Screw M5 x 25mm $1.10 1 usually ships 5-15 days
30 203-0357 Hose clip $8.97 1 usually ships 5-15 days
31 203-0358 Plug strap $6.51 1 usually ships 5-15 days
32 203-0359 Hose plug $7.52 1 usually ships 5-15 days
33 203-0360 Handle grip $1.78 2 usually ships 5-15 days
34 173-4278 Two-piece push button (blue) $6.38 1 usually ships 1-5 days
35 173-4269 Titan decal $23.98 1 usually ships 1-5 days
N/S 203-1247 Flex hose 1 1/2 x 10 foot $64.87 1 ships same day
