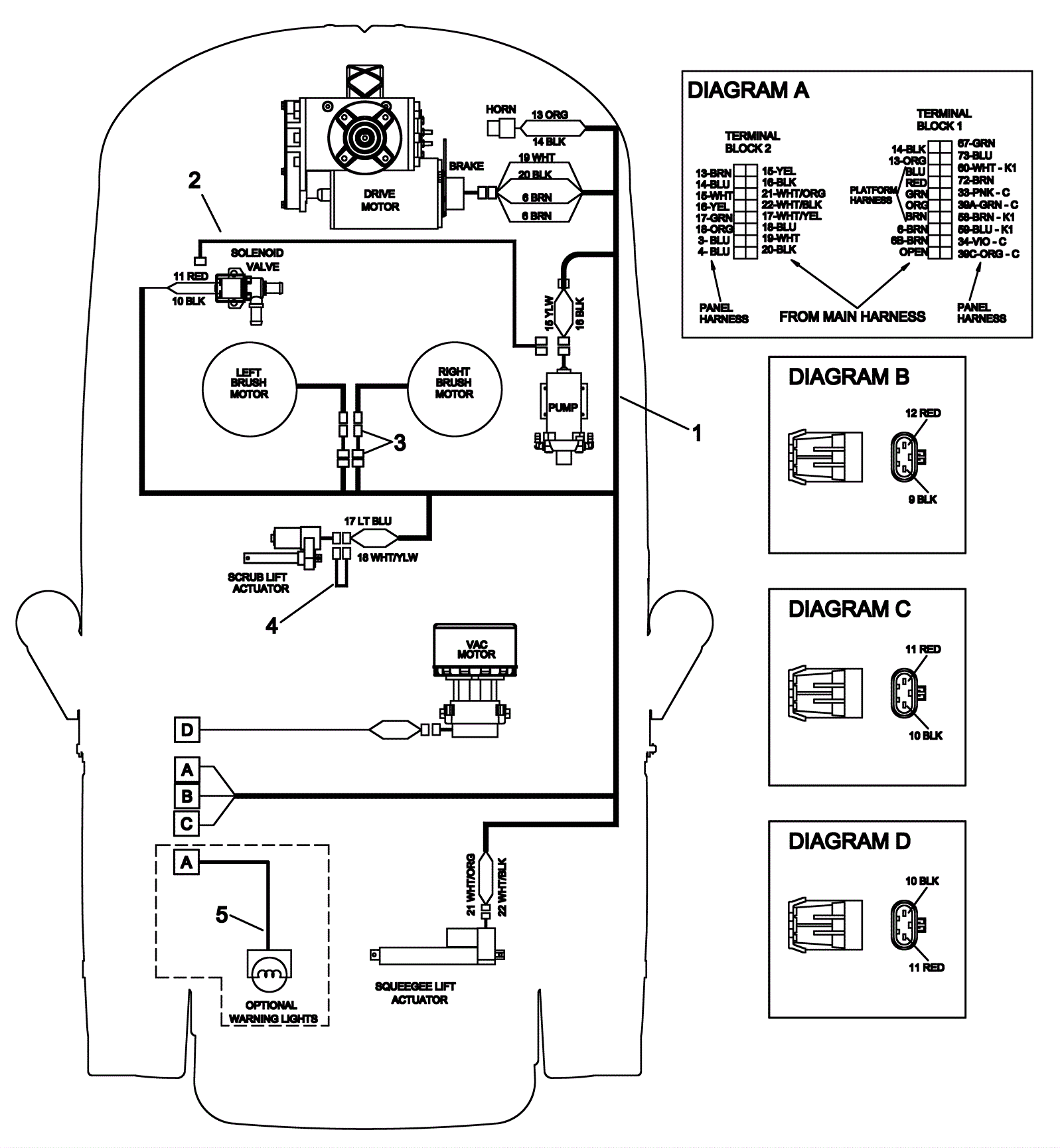

Wiring Diagram - Main Harness - After 01.2009
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
273-5997
Main harness
$340.00
1
usually ships 1-5 days
2
273-5998
Pump jumper harness
$20.20
1
(cylindrical only)
usually ships 1-5 days
3
273-5999
Brush motor harness
$163.00
2
(cylindrical only)
usually ships 1-5 days
4
273-6000
Brush actuator harness
$5.00
1
(cylindrical only)
usually ships 1-5 days
5
273-6001
Warning lights harness
$110.22
1
(optional)
usually ships 1-5 days
