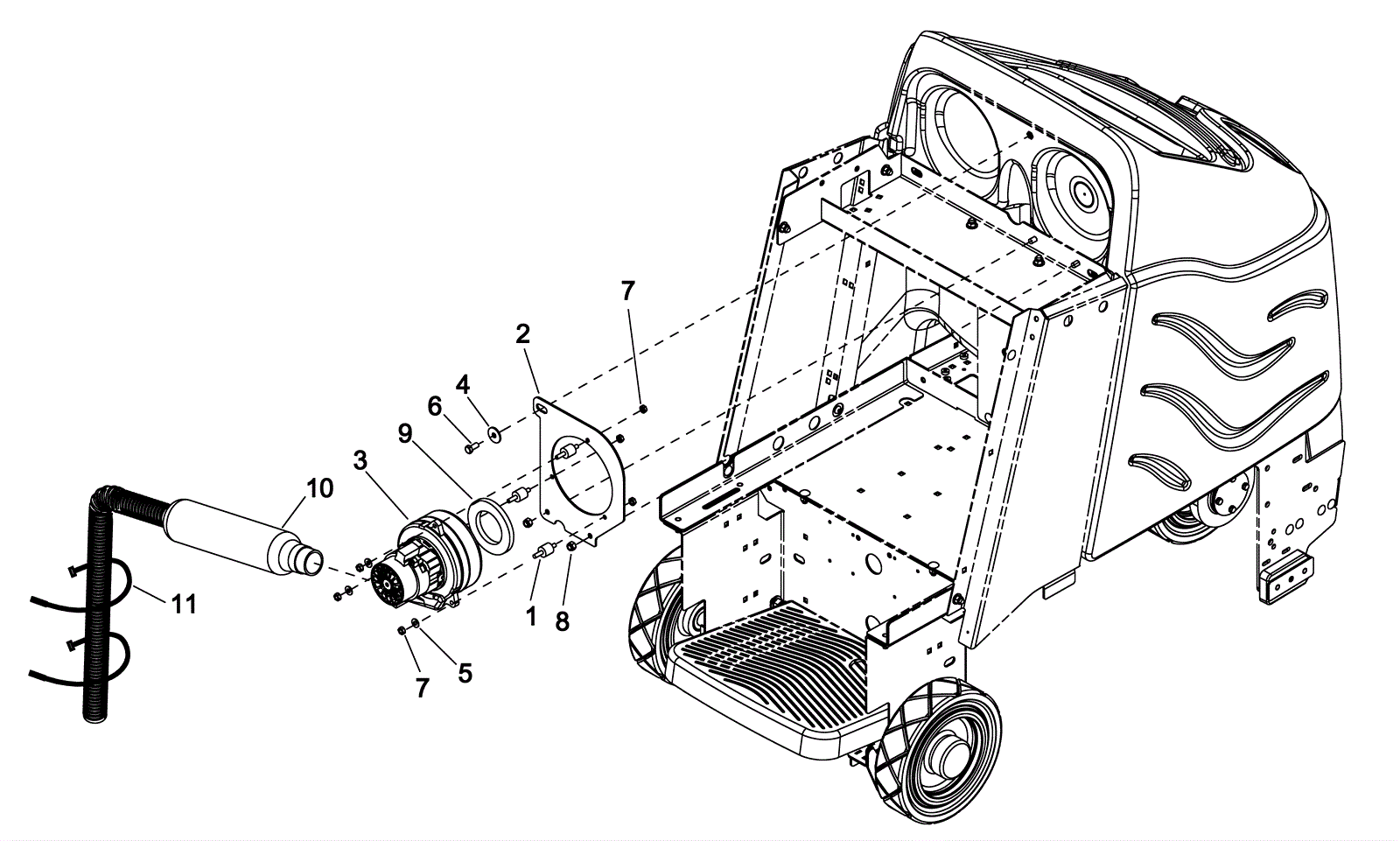

GLADIATOR SCXU24X Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5984 Rubber isolator $39.16 3 usually ships 1-5 days
2 273-5985 Vacuum motor plate (OBSOLETE) $33.07 1 usually ships 7-19 days
3a 173-9151 36V 2 stage vacuum motor $295.90 1 ships same day
3b 991-1912 36V 2 stage tangential vac motor A+ $218.67 1 (NON-OEM) usually ships 5-16 days
4 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
6 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
7 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 6 ships same day
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
9 273-0910 Vacuum bracket gasket $28.93 1 usually ships 7-19 days
10 273-5986 Muffler assembly $216.70 1 usually ships 1-5 days
11 173-3236 Wire tie $6.77 2 usually ships 7-19 days
