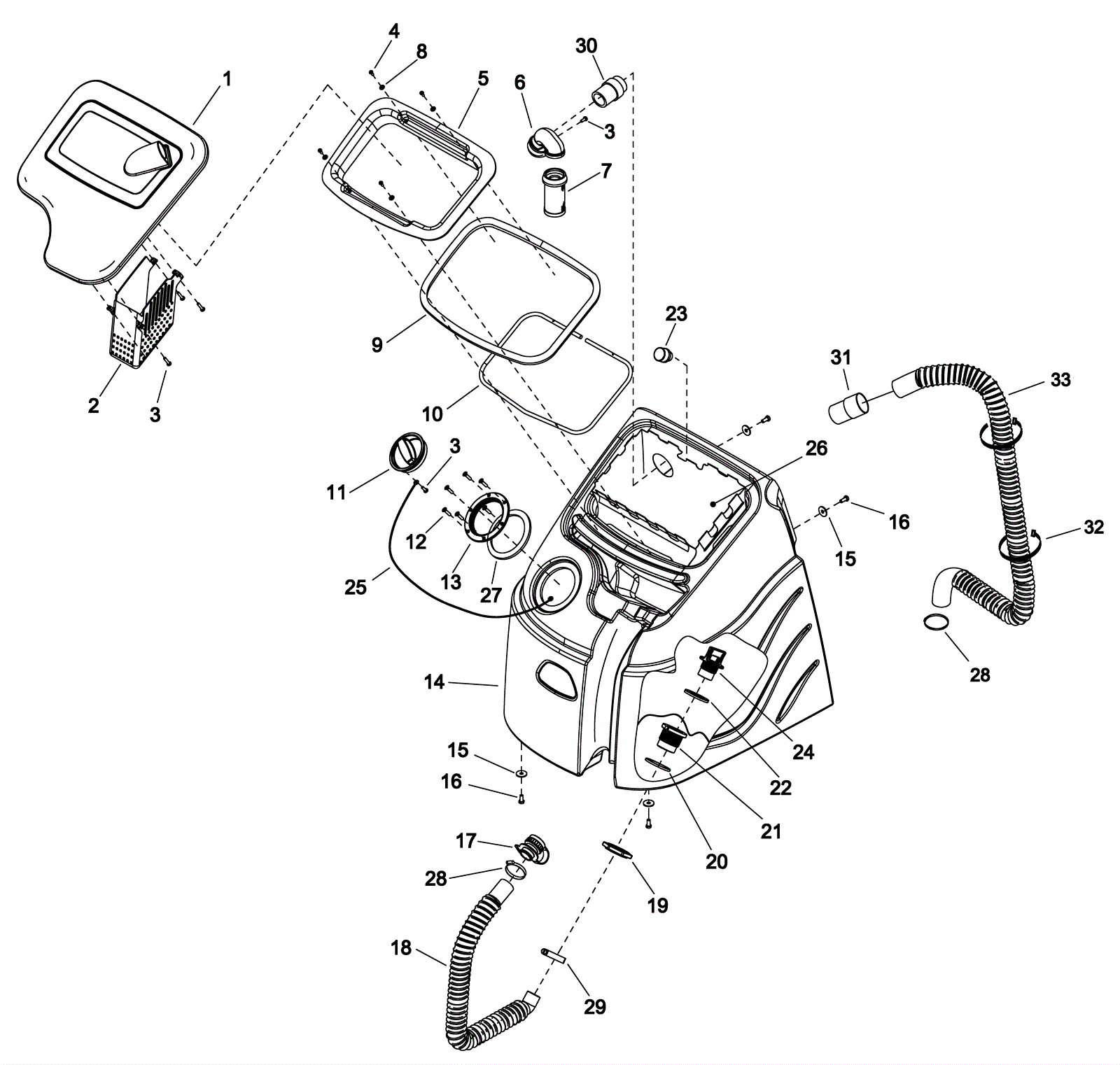

GLADIATOR SCXU24X Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5966 Tank lid $201.27 1 usually ships 11-16 days
2 273-6097 Dome strainer basket $111.82 1 ships same day
3 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 6 usually ships 11-16 days
4 173-4649 Screw 10-32 x 1/2 torx stainless steel $2.46 4 usually ships 11-16 days
5 273-5967 Bag collar $249.70 1 usually ships 11-16 days
6 273-5968 Float elbow assembly $144.77 1 ships same day
7 173-5336 Float cage assembly $47.43 1 ships same day
8 273-5969 Washer .19 thick $0.99 4 usually ships 11-16 days
9 273-5970 Tank lid gasket (OBSOLETE) $57.20 1 usually ships 11-16 days
10 273-5971 Bag frame $111.82 1 usually ships 11-16 days
11 273-5972 Fill port lid $37.66 1 ships same day
12 999-1141 Screw 8 x 3/4 pan head phillips zinc plated $0.99 6 ships same day
13 273-5973 4 inch fill port rim $50.03 1 ships same day
14 273-5974 Tank (blue) $1,122.86 1 usually ships 1-5 days
15 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 4 ships same day
16 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 4 ships same day
17 173-8564 Drain plug $46.31 1 ships same day
18 173-7416 Drain hose $84.74 1 usually ships 11-16 days
19 273-5975 Drain fitting nut $25.19 1 usually ships 11-16 days
20 273-5976 Tank drain gasket (OBSOLETE) $9.35 1 usually ships 11-16 days
21 273-5977 Drain fitting $36.61 1 usually ships 11-16 days
22 273-5978 Drain plug gasket assembly $2.40 1 usually ships 11-16 days
23 273-5979 Strainer $38.49 1 usually ships 11-16 days
24 273-5980 Drain plug $28.60 1 usually ships 11-16 days
25 173-8262 Eye lanyard with loop $44.61 1 usually ships 11-16 days
26 173-7396 Bladder bag(OBSOLETE) $196.90 1 usually ships 11-16 days
27 273-5981 Gasket $14.60 1 usually ships 11-16 days
28 997-2000 Hose clamp $2.37 1 ships same day
29 997-2007 Hose clamp $2.07 1 ships same day
30 273-5982 Tube assembly $71.21 1 usually ships 11-16 days
31 993-0014 CUFF, HOSE 1.5 inch BLK A 2161 $4.49 1 usually ships 1-3 days
32 173-3236 Wire tie $7.24 2 usually ships 11-16 days
33a 173-7397 Hose assembly $168.31 1 (disk) usually ships 11-16 days
33b 273-5983 Hose assembly $97.11 1 (cylindrical) usually ships 11-16 days
