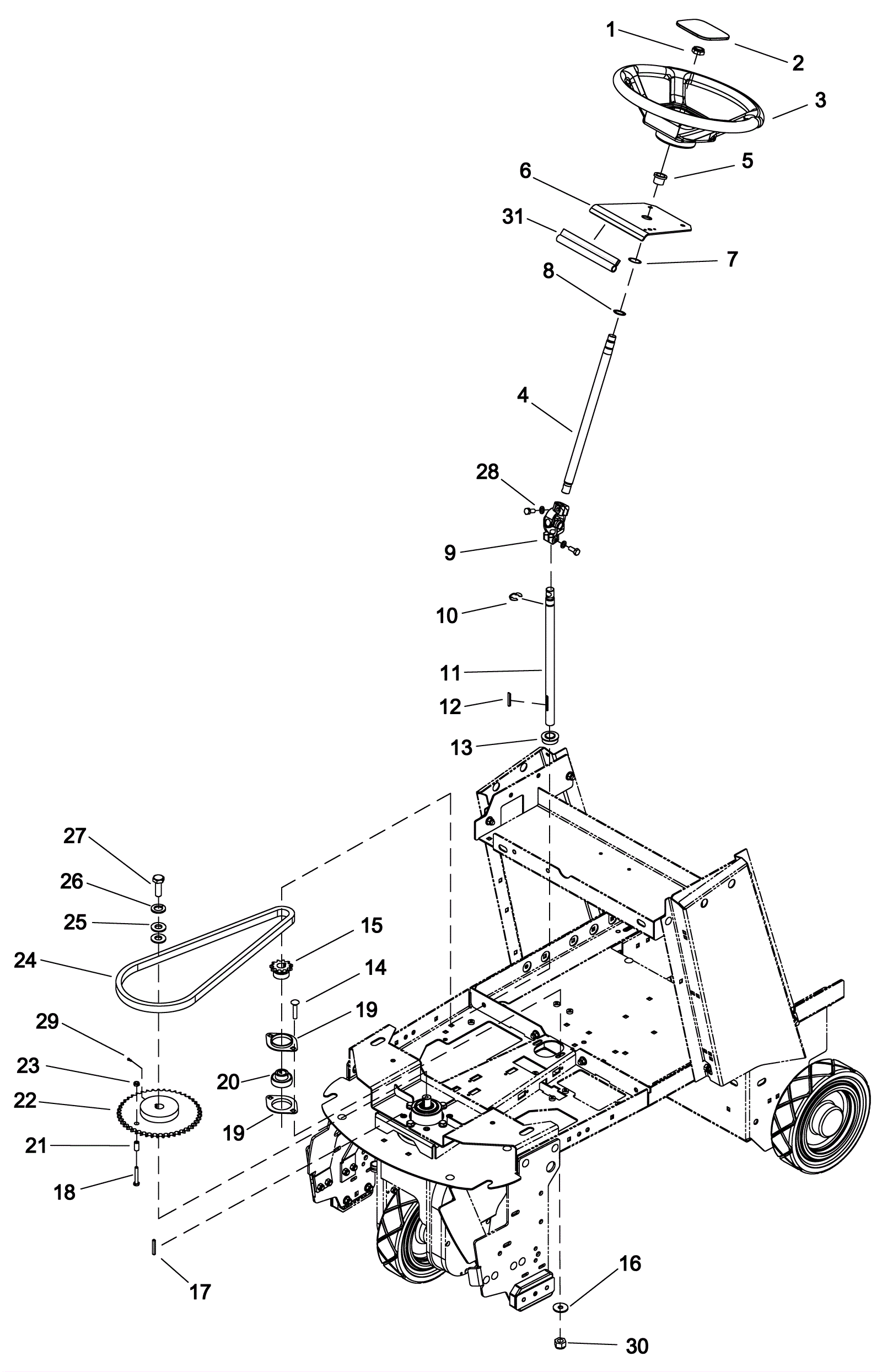

CHARIOT ISCRUB SERIES 2 Steering Assembly - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-5057 Nut 5/8-16 elastic stop $0.99 1 usually ships 11-15 days
2 173-5550 Steering wheel cover $20.01 1 usually ships 11-15 days
3 173-5551 Steering wheel $351.92 1 (includes item 2) usually ships 11-15 days
4 173-5552 Upper steering shaft (OBSOLETE) $91.85 1 usually ships 11-15 days
5 173-7161 Flanged bearing $16.13 1 usually ships 11-15 days
6 273-5962 Upper steering support bracket $86.35 2 usually ships 1-5 days
7 173-0928 Nut 7/8 pushlock $5.50 1 usually ships 1-5 days
8 273-5963 3/4 inch retaining ring $5.76 1 usually ships 1-5 days
9 173-5554 Universal female joint $196.56 1 usually ships 11-15 days
10 173-3445 Ring clip $20.57 1 usually ships 11-15 days
11 173-5555 Lower steering shaft $90.63 1 usually ships 11-15 days
12 173-5556 Square keyway $5.89 1 usually ships 11-15 days
13 173-3446 Flanged bearing $75.33 1 usually ships 11-15 days
14 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
15 173-5557 Sprocket $54.74 1 usually ships 11-15 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
17 173-9111 Square keyway $5.50 1 usually ships 11-15 days
18 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
19 173-3536 Flanged bearing $14.36 2 usually ships 11-15 days
20 173-5558 3/4 inch ball bearing $17.18 1 usually ships 11-15 days
21 173-5559 Spacer $52.14 1 usually ships 1-5 days
22 173-5560 Steering sprocket $143.59 1 usually ships 11-15 days
23 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
24a 991-0101 Chain (sold by the link) $0.55 38 usually ships 4-8 days
24b 991-0102 1/2 links roller chain $3.08 1 usually ships 4-8 days
24c 991-0103 Master link $1.87 1 ships same day
25 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
26 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
27 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
28 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
29 173-5563 Screw M6 x 25mm set nickel plated $36.72 1 usually ships 1-5 days
30 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
31 273-5965 Seal $5.17 1 usually ships 1-5 days
