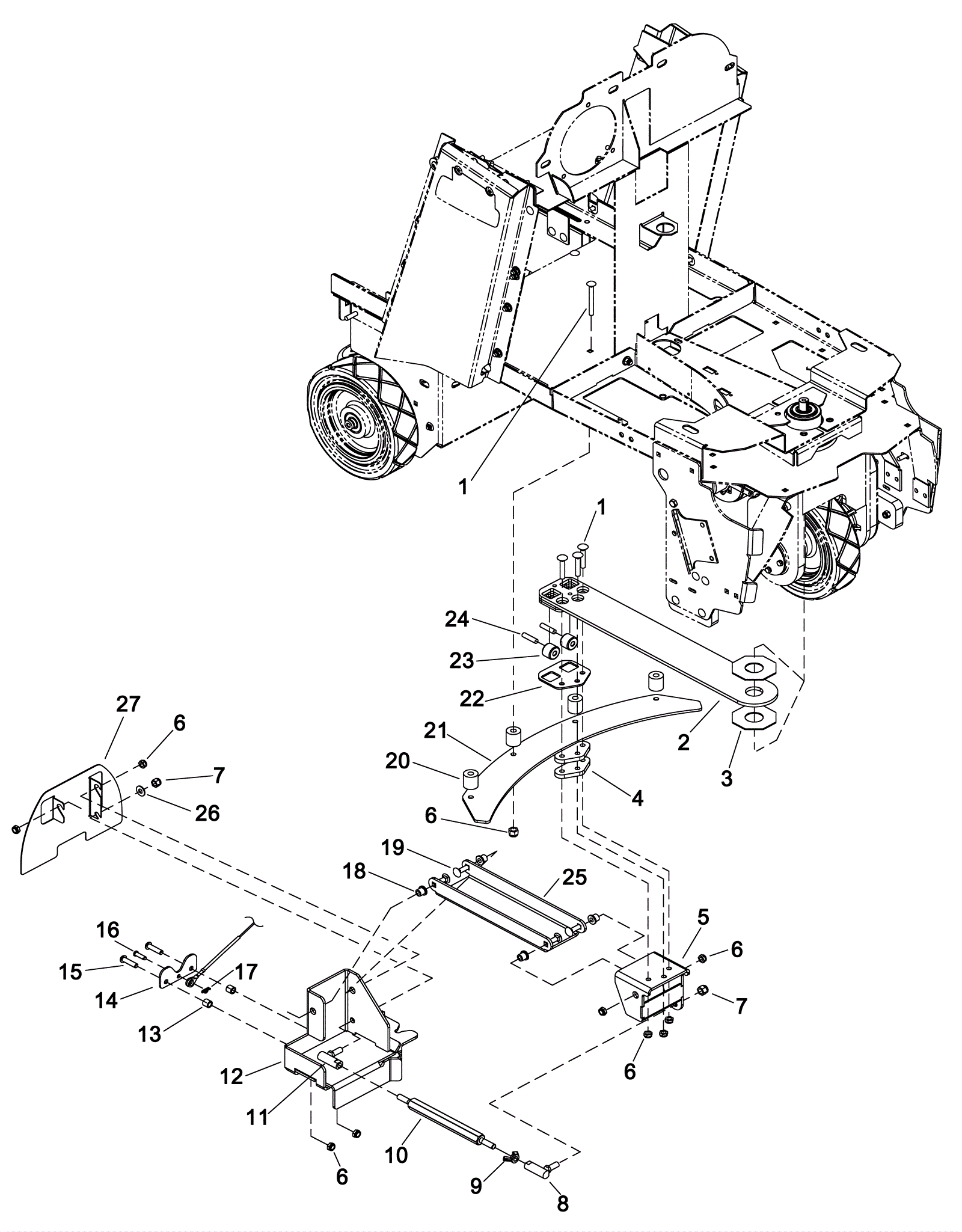

GLADIATOR SCXU24X Squeegee Swing Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0404 Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc $0.99 7 ships same day
2 273-5947 Side pivot bracket $211.20 1 usually ships 7-19 days
3 273-5948 Washer 1 1/4 octagon $43.78 2 usually ships 7-19 days
4 273-5949 Spacer plate $36.85 2 usually ships 1-5 days
5 273-5950 Pivot mounting bracket $124.30 1 usually ships 7-19 days
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 13 ships same day
7 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 2 ships same day
8 173-1594 Right ball joint assembly $35.20 1 usually ships 7-19 days
9 999-1394 Nut 3/8-24 wing stainless steel $9.88 1 ships same day
10 273-5952 Adjustment rod $189.20 1 usually ships 7-19 days
11 173-1584 Left ball joint $41.47 1 usually ships 7-19 days
12 273-5953 Quick connect bracket $279.40 1 usually ships 7-19 days
13 173-4095 Spacer (OBSOLETE) $0.99 2 usually ships 7-19 days
14 273-5954 Cable retaining plate $21.89 1 usually ships 1-5 days
15 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 2 usually ships 7-19 days
16 173-9269 Clevis pin $5.50 1 usually ships 1-5 days
17 173-1130 Cotter ring $2.42 1 ships same day
18 173-3116 Flanged bearing $8.47 4 usually ships 7-19 days
19 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
20 273-5866 Spacer $31.46 4 usually ships 1-5 days
21 273-5955 Swing plate $72.05 2 usually ships 7-19 days
22 273-5956 Wheel retainer plate $23.54 1 usually ships 1-5 days
23 273-5957 Wheel $45.32 2 usually ships 1-5 days
24 273-5958 Pin $37.84 2 usually ships 1-5 days
25 273-5959 Swing bracket $83.60 1 usually ships 7-19 days
26 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
27 273-5961 Cable guard plate $50.27 1 usually ships 7-19 days
