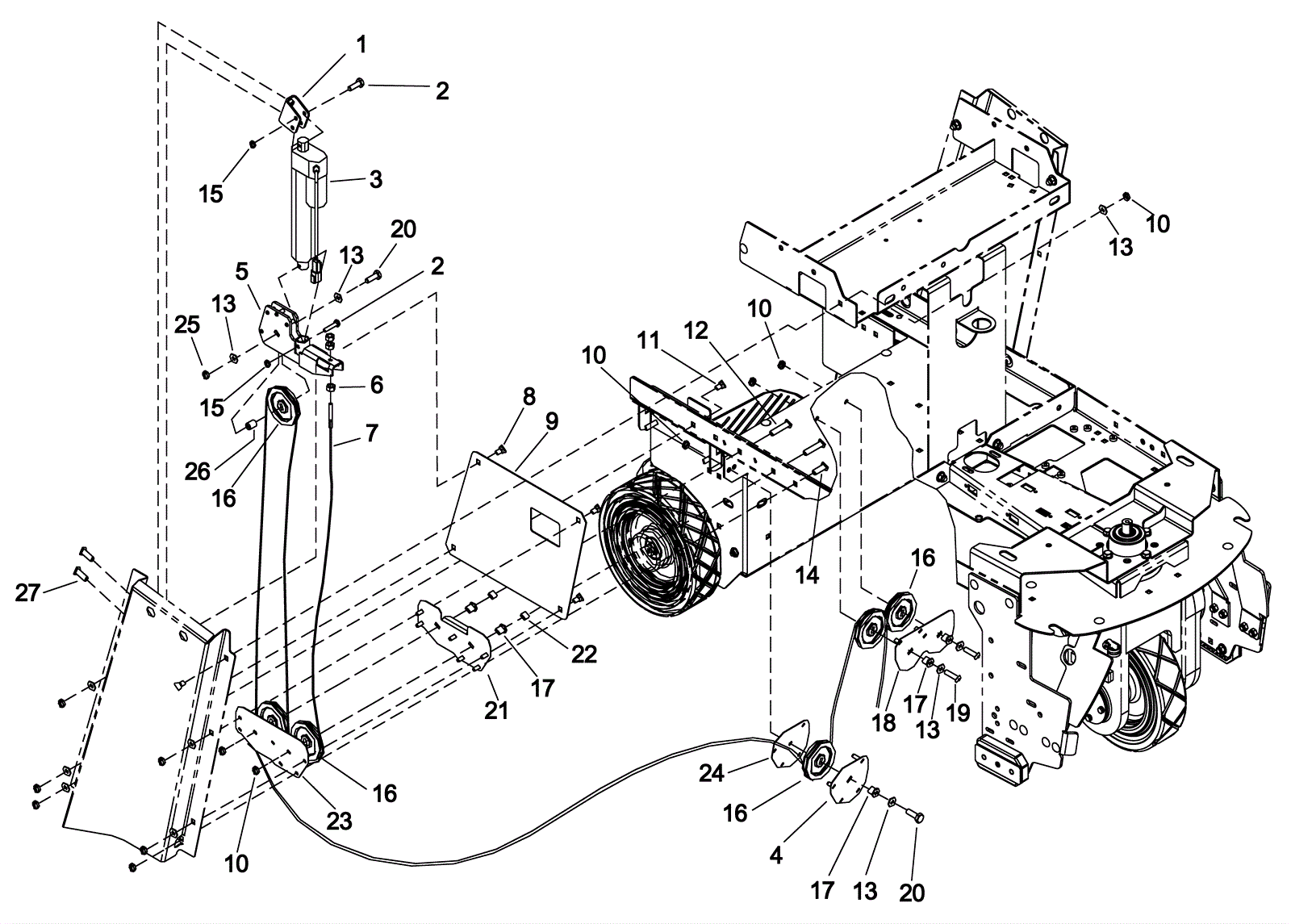

GLADIATOR SCXU24X Basic Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-0014 Actuator mounting bracket $64.90 1 usually ships 1-5 days
2 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
3 273-0015 Stroke actuator with mounting bracket $580.80 1 (includes 1) usually ships 7-19 days
4 273-0016 Mounting plate $53.13 1 usually ships 1-5 days
5 273-0017 Pulley mounting bracket $216.70 1 usually ships 1-5 days
6 999-0952 Nut 1/4-28 hex stainless steel $0.99 3 ships same day
7 273-0018 Squeegee lifting cable $37.40 1 usually ships 7-19 days
8 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 4 usually ships 7-19 days
9 273-0020 Cover $48.40 1 usually ships 7-19 days
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 9 ships same day
11 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 3 ships same day
12 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
14 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
15 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
16 273-0021 Plastic pulley $52.80 6 usually ships 7-19 days
17 273-0024 Flanged bearing $9.02 5 usually ships 7-19 days
18 273-0025 Pulley mounting plate $42.24 1 usually ships 1-5 days
19 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 2 usually ships 7-19 days
20 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 2 ships same day
21 273-0026 Pulley retainer bracket $89.10 1 usually ships 1-5 days
22 173-4095 Spacer (OBSOLETE) $0.99 2 usually ships 7-19 days
23 273-0027 Pulley retainer bracket $21.89 1 usually ships 1-5 days
24 273-0028 Pulley retainer plate $16.39 1 usually ships 1-5 days
25 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
26 173-3117 Bearing $8.75 1 usually ships 1-5 days
27 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 2 ships same day
