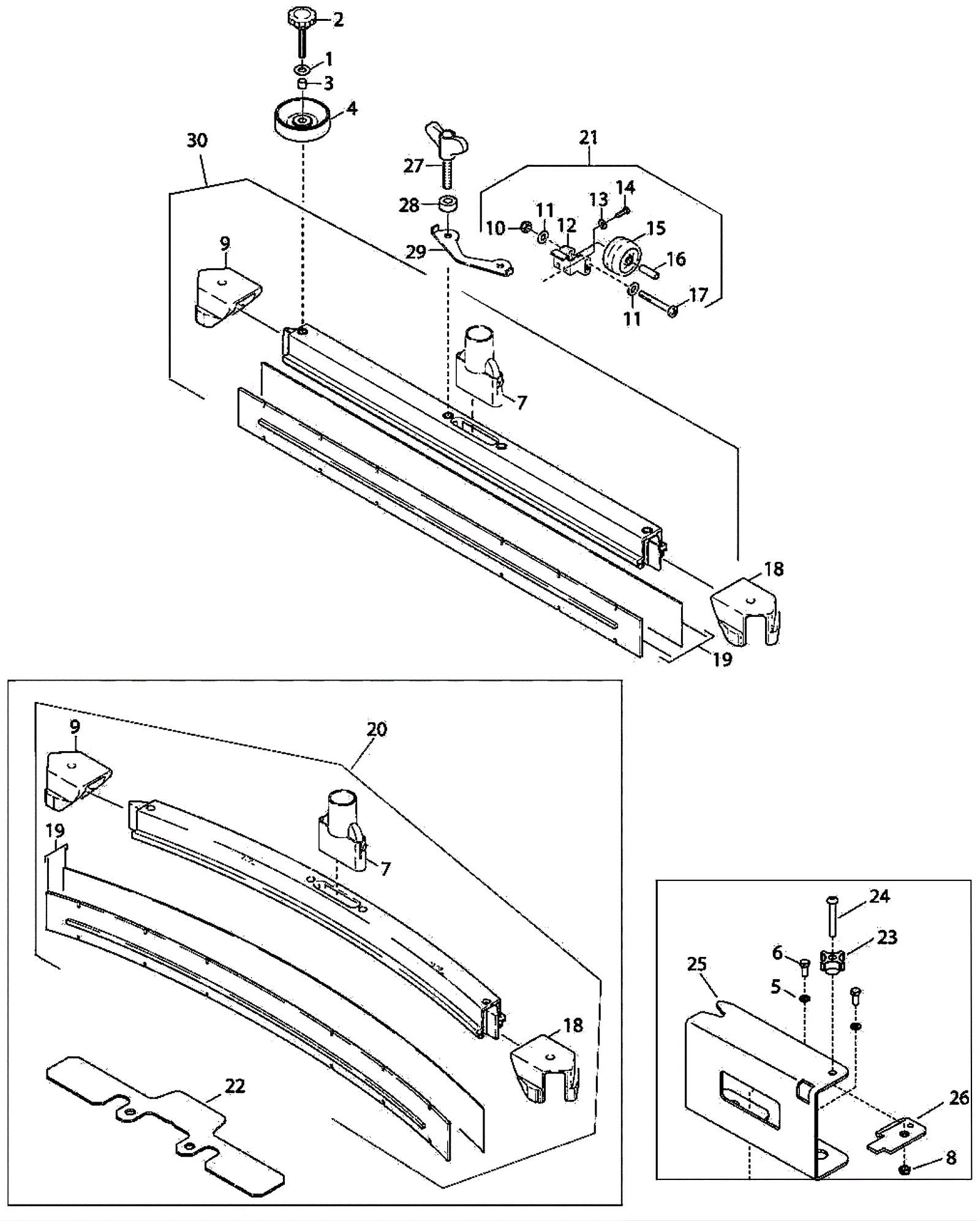

CHARIOT ISCRUB SERIES 2 Squeegee Assembly - 26 inch Cylindrical - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
2 273-7072 Star knob $21.10 2 usually ships 7-19 days
3 273-5924 Sleeve suction bar $8.30 2 usually ships 7-19 days
4 273-5925 Guide wheel $24.10 2 usually ships 7-19 days
5 999-0674 Washer M8 split lock plain finish $0.99 2 ships same day
6 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
7 183-0314 Intake tube $8.53 1 usually ships 1-5 days
8 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
9 273-3475 Left and right end pieces $79.50 1 usually ships 7-19 days
10 183-0304 Hex nut $1.18 2 usually ships 1-5 days
11 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
12 183-0320 Bracket (Obsolete) $25.53 2 usually ships 1-5 days
13 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
14 183-0323 Screw M5-.8 x 10mm stainless steel $1.71 4 usually ships 1-5 days
15 183-0301 Wheel $25.72 2 usually ships 8-21 days
16 183-0303 Axle $31.20 2 usually ships 8-21 days
17 999-0781 Screw M6-1 x 45mm hex head $0.99 2 ships same day
19a 173-7420 Squeegee blade 26 inch kit urethane (pkg of 2) $83.00 1 ships same day
19b 173-7421 35 inch squeegee blade kit standard (pkg of 2) $201.04 1 usually ships 7-19 days
20 273-3480 36 inch squeegee assembly $734.00 1 (includes 7, 9,18, 19 and 22) usually ships 7-19 days
21 183-0299 Support wheels kit $72.61 1 (includes 10-17) usually ships 8-21 days
22 273-5929 Weight $107.00 1 usually ships 7-19 days
23 173-1025 Knob $19.20 1 ships same day
24 273-5921 Screw 3/8-16 x 2 1/2 button head stainless steel $9.50 1 usually ships 1-5 days
25 273-5930 Mounting bracket $92.69 1 usually ships 7-19 days
26 273-5919 Locking bracket $71.00 1 usually ships 7-19 days
27 373-4987 Wing screw M8x30 $6.40 2 ships same day
28 273-5932 Sleeved bushing $12.20 2 usually ships 7-19 days
29 183-0308 Plate $16.81 1 usually ships 1-5 days
30 273-7774 33 inch straight polyurethane squeegee assembly (850mm) $1,210.00 1 (includes 7, 9, 18 and 19) usually ships 7-19 days
