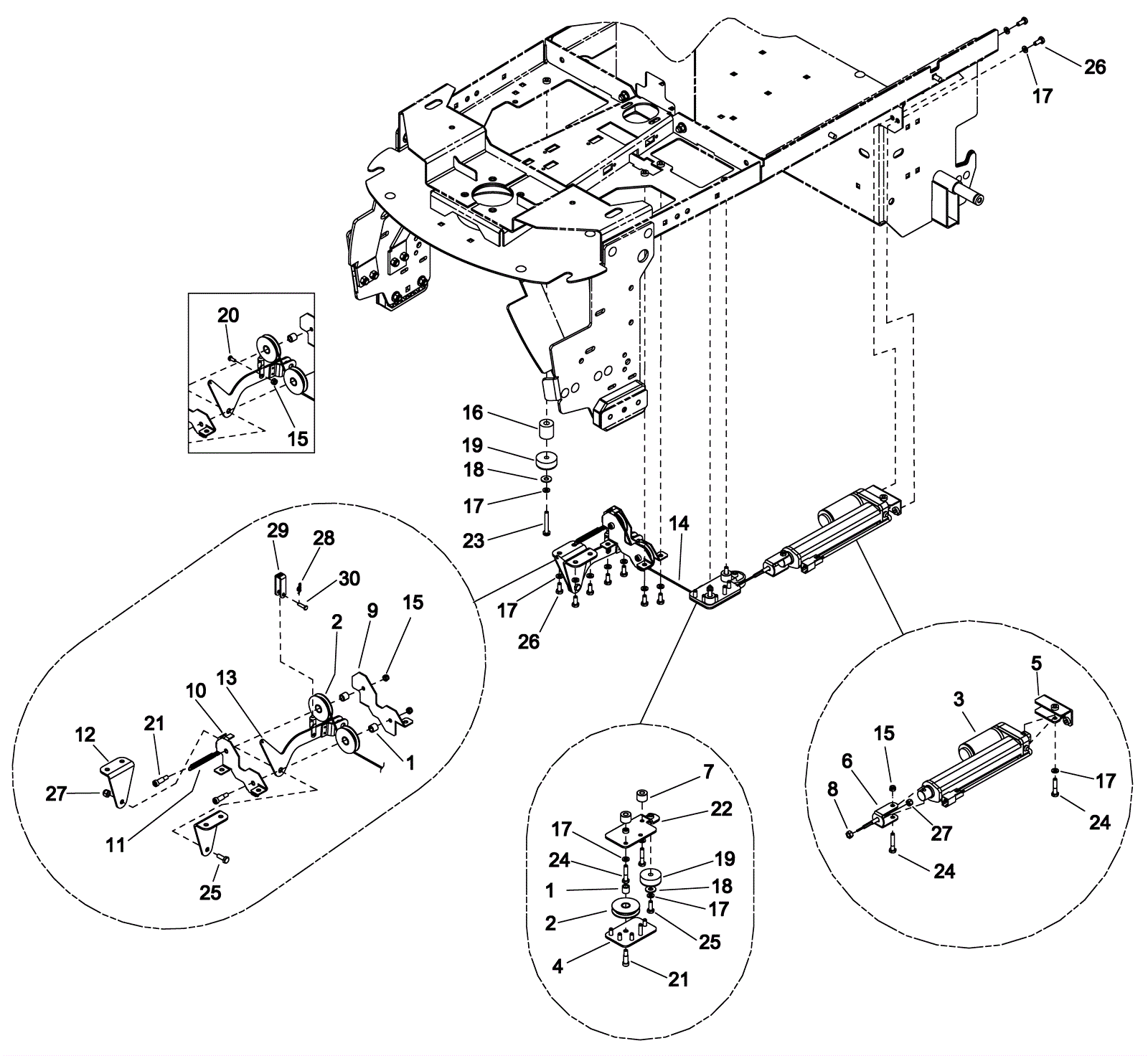

CHARIOT ISCRUB SERIES 2 Scrub Deck Lift Assembly - 26 Inch Cylindrical - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 273-5869 Spacer $34.00 3 usually ships 1-5 days
2 273-5870 2 inch pulley $52.50 3 usually ships 1-5 days
3 273-5871 36V actuator $388.00 1 usually ships 1-5 days
4 273-5872 Cable retainer plate assembly $48.90 1 usually ships 1-5 days
5 273-5873 Actuator bracket assembly $36.70 1 usually ships 1-5 days
6 273-5874 Cable yoke $24.90 1 usually ships 1-5 days
7 273-5875 Spacer $32.70 2 usually ships 1-5 days
8 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
9 273-5876 Rear pulley plate $40.20 1 usually ships 1-5 days
10 273-5877 Front pulley plate $65.00 1 usually ships 1-5 days
11 273-5878 Extension spring $15.53 1 usually ships 1-5 days
12 273-5879 Pivot bracket $22.40 2 usually ships 1-5 days
13 273-5880 Bellcrank assembly $46.90 1 usually ships 1-5 days
14 273-5881 Lifting cable assembly $171.00 1 usually ships 7-19 days
15 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
16 273-5866 Spacer $28.60 1 usually ships 1-5 days
17 999-1049 Washer 1/4 split lock zinc plated $0.99 15 ships same day
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
19 173-3703 Rubber bumper $16.40 2 usually ships 1-5 days
20 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 1 ships same day
21 273-5883 Shoulder bolt 5/16 x 5/8 inch $22.80 3 usually ships 1-5 days
22 273-5884 Pulley mount plate assembly $94.50 1 usually ships 1-5 days
23 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 1 ships same day
24 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
25 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
26 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 10 ships same day
27 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
28 173-1130 Cotter ring $2.20 1 usually ships 7-19 days
29 273-5885 Bracket $25.60 1 usually ships 1-5 days
30 173-5110 Clevis pin $6.75 1 usually ships 1-5 days
