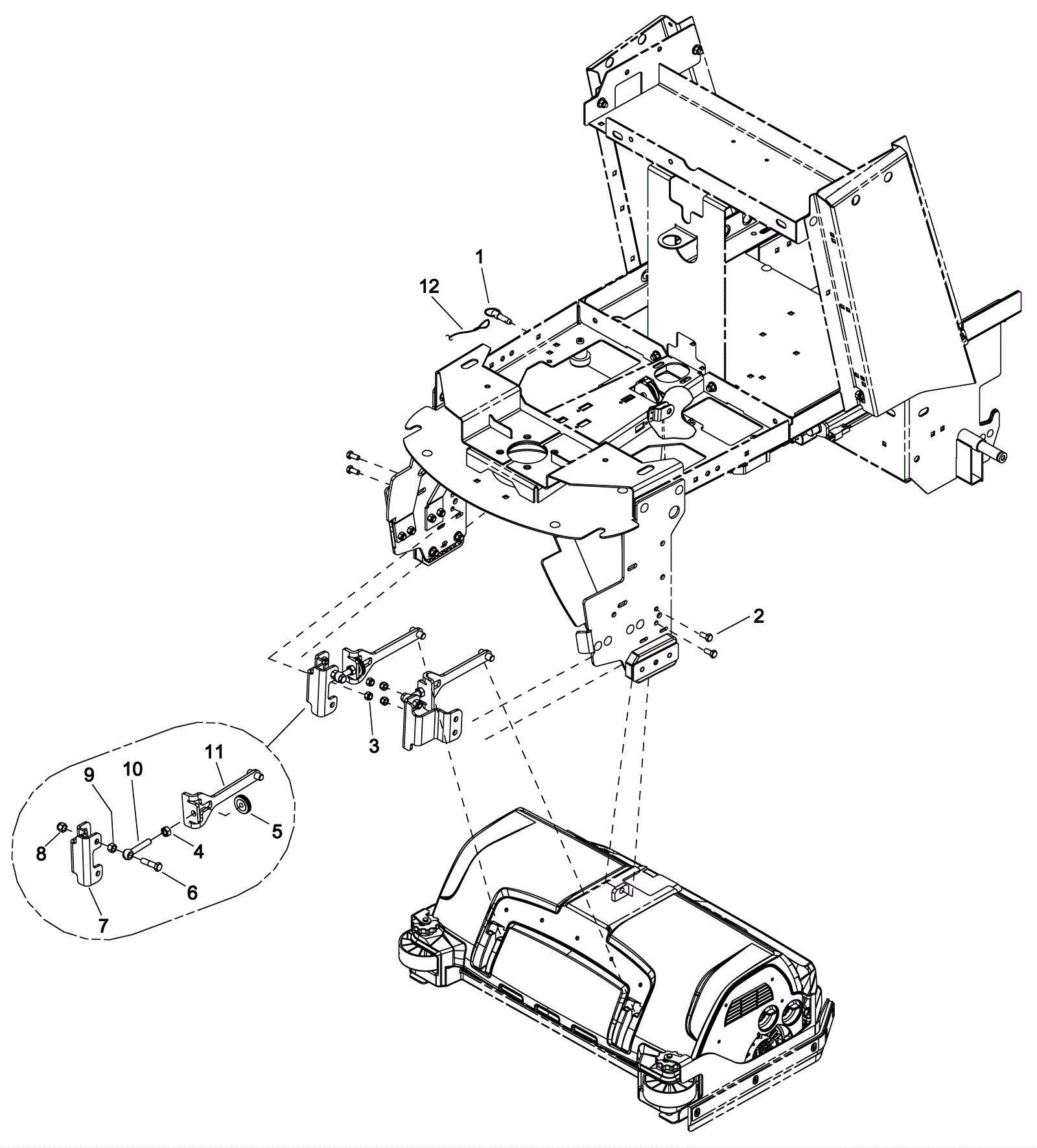

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-5854
|
Locking pin |
$133.67
|
1 |
|
usually ships 1-5 days |
2 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
4 |
273-5855
|
Nut M10 hex |
$1.90
|
2 |
|
usually ships 11-15 days |
5 |
273-5856
|
Nut M10 knurled |
$12.24
|
2 |
|
usually ships 11-15 days |
6 |
999-0350
|
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
7 |
273-5857
|
Linkage bracket |
$62.98
|
2 |
|
usually ships 11-15 days |
8 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
$1.03
|
2 |
|
usually ships 11-15 days |
9 |
999-0170
|
Nut 3/8-16 hex plain finish |
$0.99
|
2 |
|
ships same day |
10 |
273-5858
|
Eye screw |
$47.31
|
2 |
|
ships same day |
11a |
273-7279
|
Tension rod add-on kit |
$63.56
|
2 |
(includes 11b and 11c) |
usually ships 11-15 days |
11b |
273-7277
|
Screw M10 x 70 eye |
$29.07
|
2 |
|
usually ships 11-15 days |
11c |
273-7278
|
Tie rod |
$168.31
|
2 |
|
usually ships 1-5 days |
12 |
273-0003
|
Nylon strap |
$3.26
|
1 |
|
usually ships 1-5 days |
