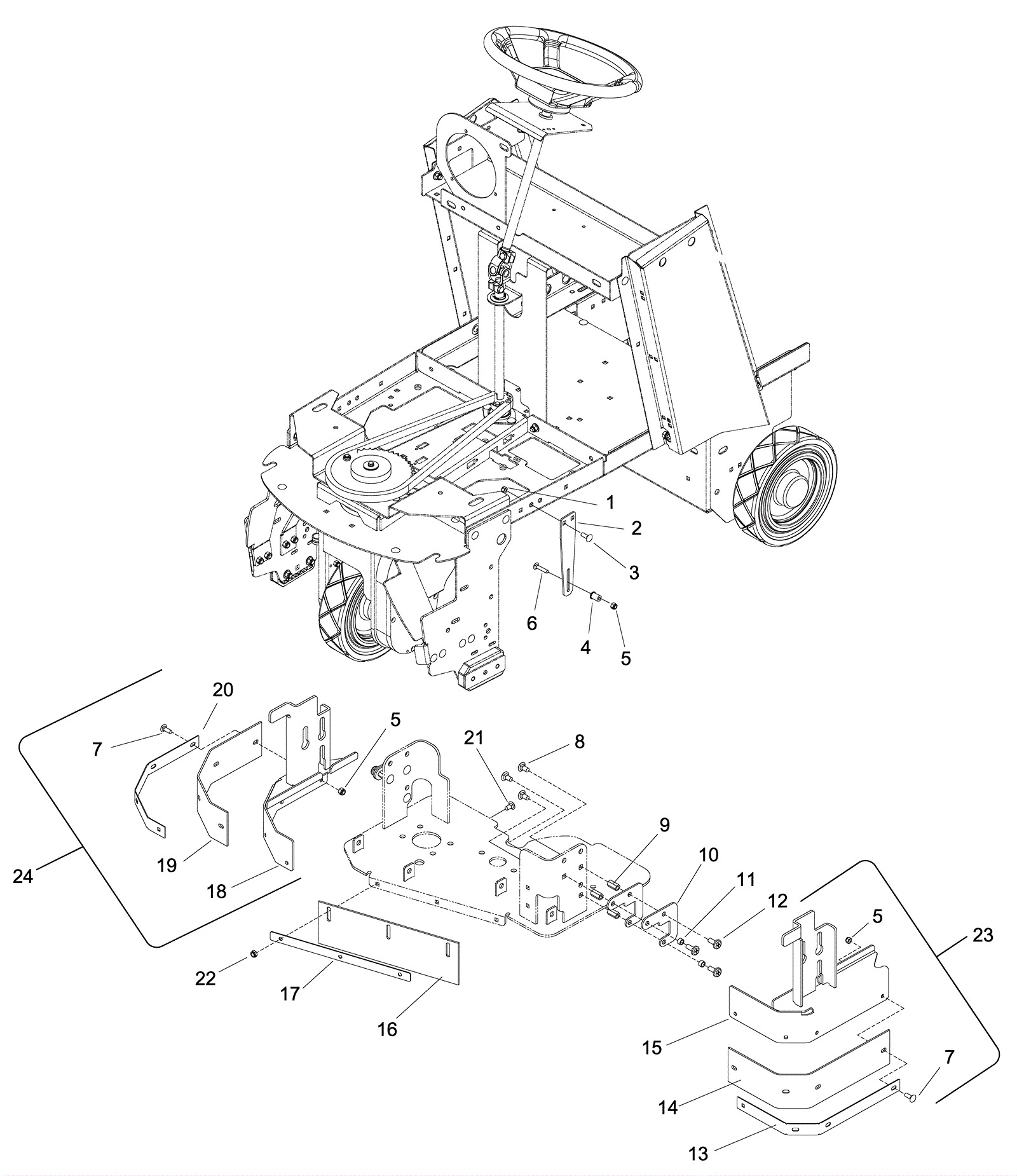

CHARIOT ISCRUB SERIES 2 Scrub Deck Skirts Assembly - 24 inch Disk - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 273-5886 Bracket $20.60 2 usually ships 1-5 days
3 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
4 173-8258 Flanged bearing $10.30 2 ships same day
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
6 173-2580 Screw 1/4-20 x 1 1/4 carriage (OBSOLETE) $2.58 2 usually ships 7-19 days
7 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
8 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.38 6 usually ships 7-19 days
9 173-4088 Nut 5/16-18 hex coupling stainless steel $27.80 6 usually ships 7-19 days
10 273-5887 Plate $28.30 4 usually ships 1-5 days
11 273-5888 Spacer $24.10 4 usually ships 7-19 days
12 173-4632 Screw M12 x 1.25mm pan head phillips stainless steel $5.80 6 usually ships 7-19 days
13 273-5889 Left skirt band $35.61 1 usually ships 7-19 days
14 273-0035 24 inch left skirt blade $24.40 1 ships same day
15 273-5890 Left skirt bracket $199.00 1 usually ships 1-5 days
16 273-0037 Front skirt blade $48.11 1 usually ships 7-19 days
17 273-5891 Front skirt band $36.60 1 usually ships 7-19 days
18 273-5892 Right skirt bracket $192.00 1 usually ships 1-5 days
19 273-0036 24 inch right skirt blade $24.40 1 ships same day
20 273-5893 Right skirt band $35.61 1 usually ships 7-19 days
21 273-5894 Screw 1/4-20 x 5/8 carriage head stainless steel $3.00 3 usually ships 1-5 days
22 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 ships same day
23 273-5895 Left skirt kit $339.00 1 (includes 5, 7, 13, 14, 15) usually ships 7-19 days
24 273-5896 Right skirt kit $277.00 1 (includes 5, 7, 18, 19, 20) usually ships 7-19 days
