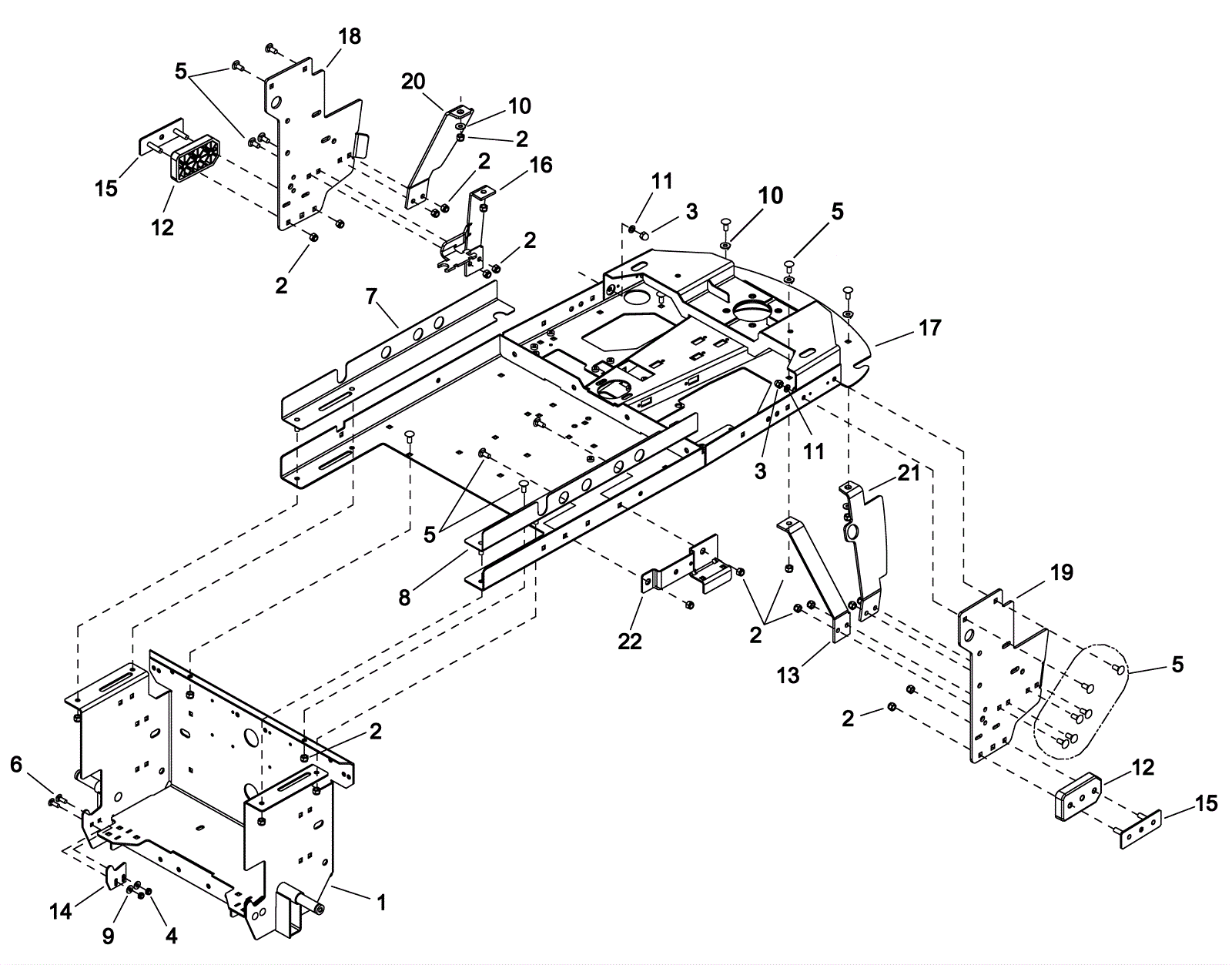

CHARIOT ISCRUB SERIES 2 Lower Frame Assembly - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-5462 Rear axle weldment $597.00 1 usually ships 1-5 days
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 24 ships same day
3 999-1458 Nut 5/16-18 acorn nickel plated $0.99 4 ships same day
4 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
5 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 20 ships same day
6 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
7 173-5463 Right hand slide tray $127.00 1 usually ships 1-5 days
8 173-6037 Left hand slide tray $127.00 1 usually ships 1-5 days
9 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
11 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
12 173-5460 Tipping bar pad $58.50 2 usually ships 7-19 days
13 173-5459 Right hand rear bracket $57.00 1 usually ships 1-5 days
14 173-5468 Plate $15.10 2 usually ships 1-5 days
15 173-7193 Pad retainer plate $32.00 2 usually ships 1-5 days
16a 273-5790 Left rear bracket $58.50 1 (disk) usually ships 1-5 days
16b 173-5465 Left hand rear bracket $57.00 1 (cylindrical) usually ships 1-5 days
17 273-5791 Main frame $767.00 1 usually ships 7-19 days
18 273-5792 Left linkage bracket $75.00 1 usually ships 1-5 days
19 273-5793 Right linkage bracket $75.00 1 usually ships 1-5 days
20 273-5794 Left front brace bracket $46.90 1 usually ships 1-5 days
21 273-5795 Right front brace bracket $44.00 1 usually ships 1-5 days
22 273-5796 Strainer bracket $45.10 1 usually ships 1-5 days
