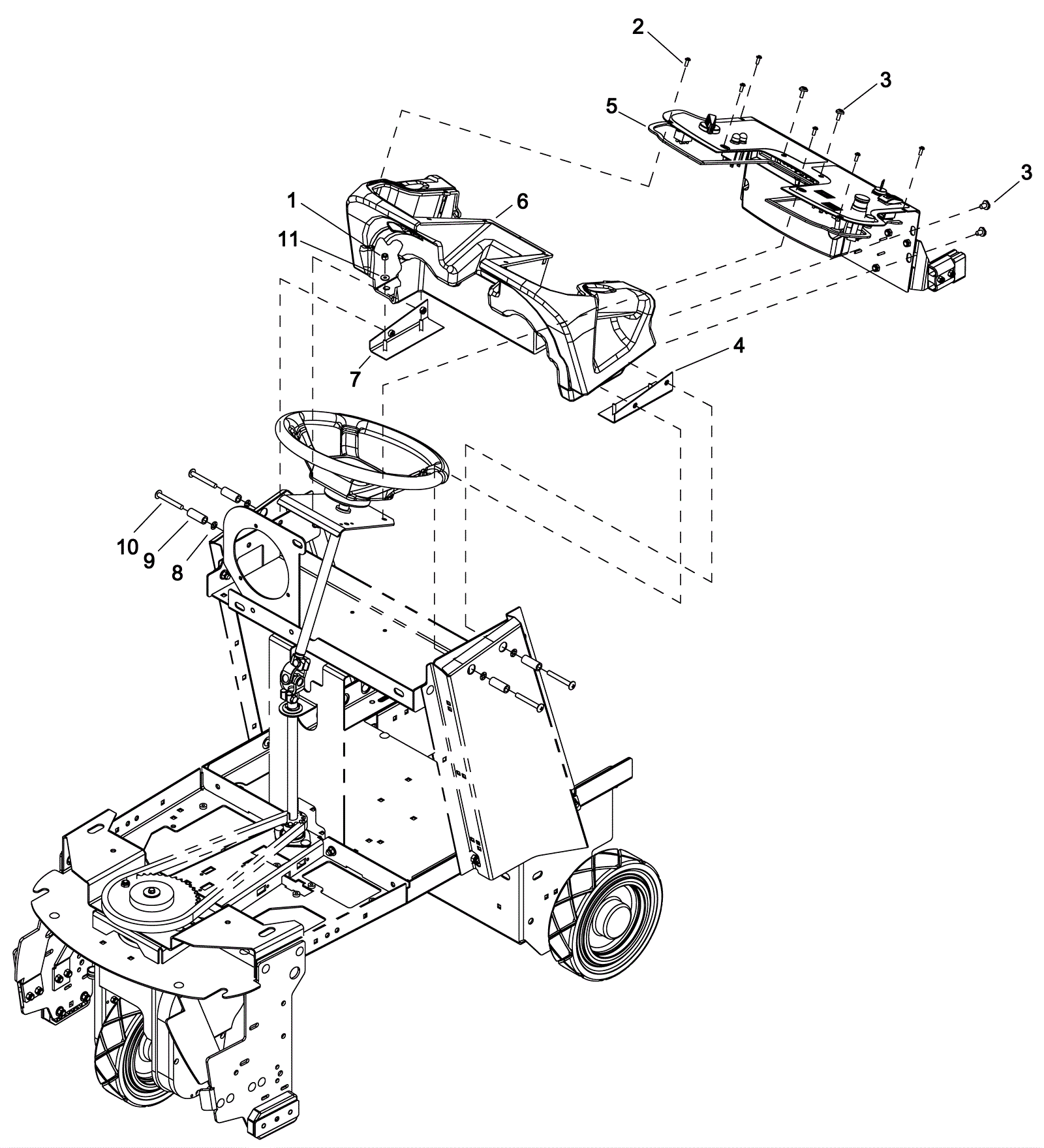

CHARIOT ISCRUB SERIES 2 Control Panel Housing Assembly - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
2 173-4649 Screw 10-32 x 1/2 torx stainless steel $1.93 6 usually ships 7-19 days
3 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 6 ships same day
4 273-5781 Left console mounting bracket $47.43 1 usually ships 1-5 days
5 173-4650 Gasket $7.45 3 usually ships 1-5 days
6 273-5782 Console $276.00 1 usually ships 1-5 days
7 273-5783 Right console mounting bracket $55.50 1 usually ships 1-5 days
8 173-4733 Washer 5/16 retension pushnut $1.92 4 usually ships 1-5 days
9 173-4734 Spacer $26.80 4 usually ships 1-5 days
10 999-1340 Screw 5/16-18 x 2 1/2 truss head stainless steel $2.90 4 usually ships 1-5 days
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
