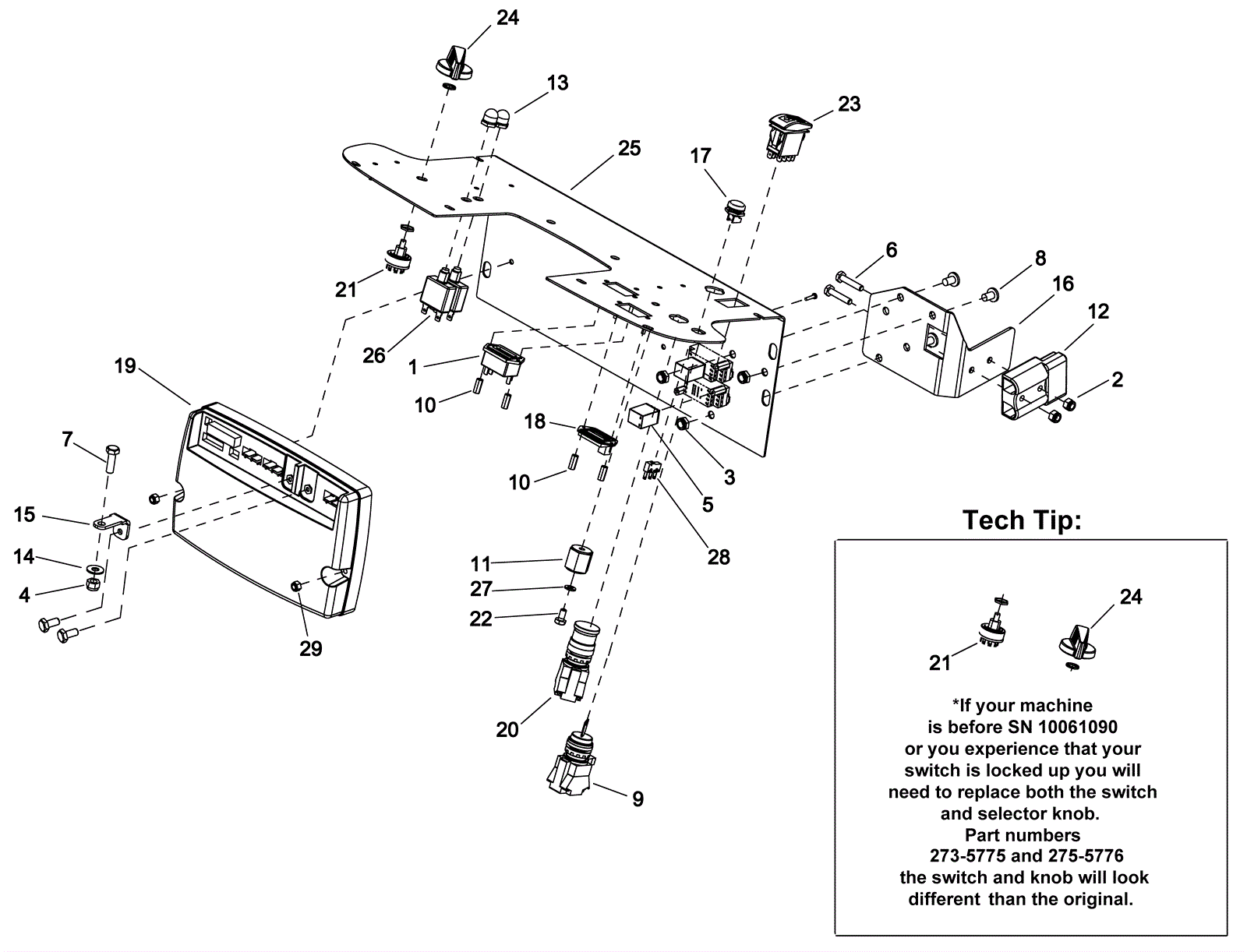

CHARIOT ISCRUB SERIES 2 Control Panel Assembly - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 273-5769 Hour meter $95.19 1 usually ships 7-19 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
4 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 1 ships same day
5 273-0912 5amp relay $22.40 2 usually ships 7-19 days
6 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
7 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 ships same day
8 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 3 ships same day
9a 173-8560 Master key switch $299.05 1 usually ships 7-19 days
9b 173-3958 Key (pkg of 2) $27.10 1 ships same day
10 173-1520 Nylon standoff $6.05 14 ships same day
11 173-1145 Insulated stand-off $20.50 1 usually ships 7-19 days
12 991-2112 175amp charger plug with pins (gray) SB175 $12.87 1 ships same day
13 273-5770 Push button boot $19.90 2 usually ships 7-19 days
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
15 173-4366 Bracket $6.00 1 usually ships 1-5 days
16 273-5771 Bracket $37.40 1 usually ships 1-5 days
17 273-0914 Button assembly $26.20 1 (horn) usually ships 7-19 days
18 273-5772 36V battery meter $156.00 1 usually ships 7-19 days
19a 273-0911 Drive controller $1,750.00 1 (disk) usually ships 7-19 days
19b 273-5773 Drive controller $1,680.00 1 (cylindrical) usually ships 1-5 days
20 273-5774 Emergency stop switch $152.00 1 ships same day
21 273-5775 7 position rotary switch $114.00 1 (before SN 10061090 - if your switch locks up you will need to replace both switch and selector knob - reference 21 and 24) usually ships 7-19 days
22 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
23 273-0913 Switch $85.50 1 (directional control) usually ships 7-19 days
24 273-5776 Selector knob $15.50 1 (before SN 10061090 - if your switch locks up you will need to replace both switch and selector knob - reference 21 and 24) ships same day
25 273-5777 Control panel $164.00 1 usually ships 1-5 days
26a 273-5778 18amp circuit breaker $25.60 2 (disk) (brush motor) usually ships 7-19 days
26b 273-5779 30amp circuit breaker $44.10 2 (cylindrical) (brush motor) usually ships 1-5 days
27 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
28 273-5780 Micro switch $25.00 1 (horn) usually ships 7-19 days
29 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
