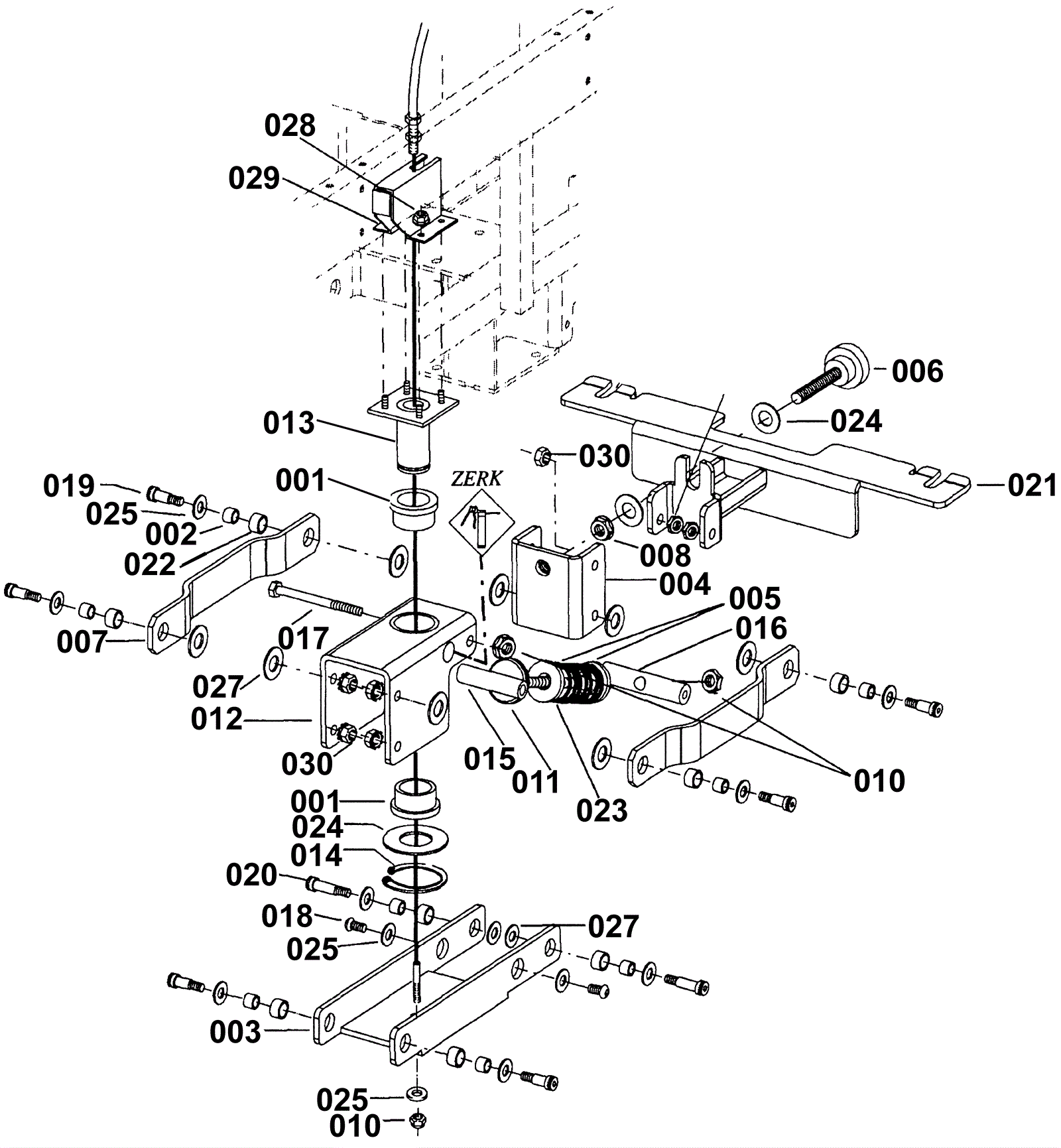

TRIDENT TR24 Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1226 1. ID x 1.25 OD x 75 Long flange bearing $14.88 2 usually ships 1-5 days
002 173-1230 9/16 OD x 7/16 ID x 5/16 Long brushing $1.47 6 usually ships 1-5 days
003 173-1238 Squeegee linkage bracket (OBSOLETE) $89.32 1 usually ships 1-5 days
004 173-1234 Squeegee lift bracket (OBSOLETE) $41.49 1 usually ships 1-5 days
005 173-1232 Squeegee spring cap $24.24 2 usually ships 1-5 days
006 173-1236 3/8-16 x 2.25 inch long knob $31.97 1 usually ships 1-5 days
007 173-1237 Squeegee lift linkage (OBSOLETE) $34.13 2 usually ships 1-5 days
008 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 1 ships same day
010 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
011 173-3872 Squeegee camber lock nut $13.98 1 usually ships 1-5 days
012 173-1227 Squeegee pivot assembly $133.10 1 usually ships 1-5 days
013 173-0919 Squeegee pivot plate assembly $112.20 1 usually ships 1-5 days
014 173-1062 1.0 extension snap hd ring $5.50 1 usually ships 1-5 days
016 173-1241 spring adjust rod (OBSOLETE) $41.66 1 usually ships 1-5 days
017 173-1146 1/4-20 x 1.25 stud $1.10 1 usually ships 1-5 days
018 999-0383 Screw 1/4-20 x 1/2 button head socket cap plain finish $0.99 2 ships same day
019 173-1228 Bolt 5/16 OD x 1/2 long shoulder $4.29 6 usually ships 1-5 days
020 173-1239 Bolt 5/16 x 3/4 shoulder $12.21 2 usually ships 14-22 days
021 173-1235 Squeegee support assembly (OBSOLETE) $122.91 1 usually ships 1-5 days
022 173-1229 7/16 OD x 5.16 ID x 21/64 long spacer $27.39 8 usually ships 1-5 days
023 173-1233 1.1 inch D x 1.35 inch Wide x 3.5 inch long Spring $68.89 1 usually ships 1-5 days
024 173-7174 Washer 1-1/64 x 2 x 5/64 pleated $14.30 1 usually ships 1-5 days
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 11 ships same day
026 173-2548 Washer M10 x 30mm plated $3.70 2 usually ships 14-22 days
027 173-5026 Squeegee pivot linkage washer $5.78 4 usually ships 1-5 days
028 173-2472 Nut 10-32 with star washer $0.99 4 usually ships 1-5 days
029 173-1223 C17/20 lift cable pulley bracket $43.78 1 usually ships 1-5 days
030 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
031 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
