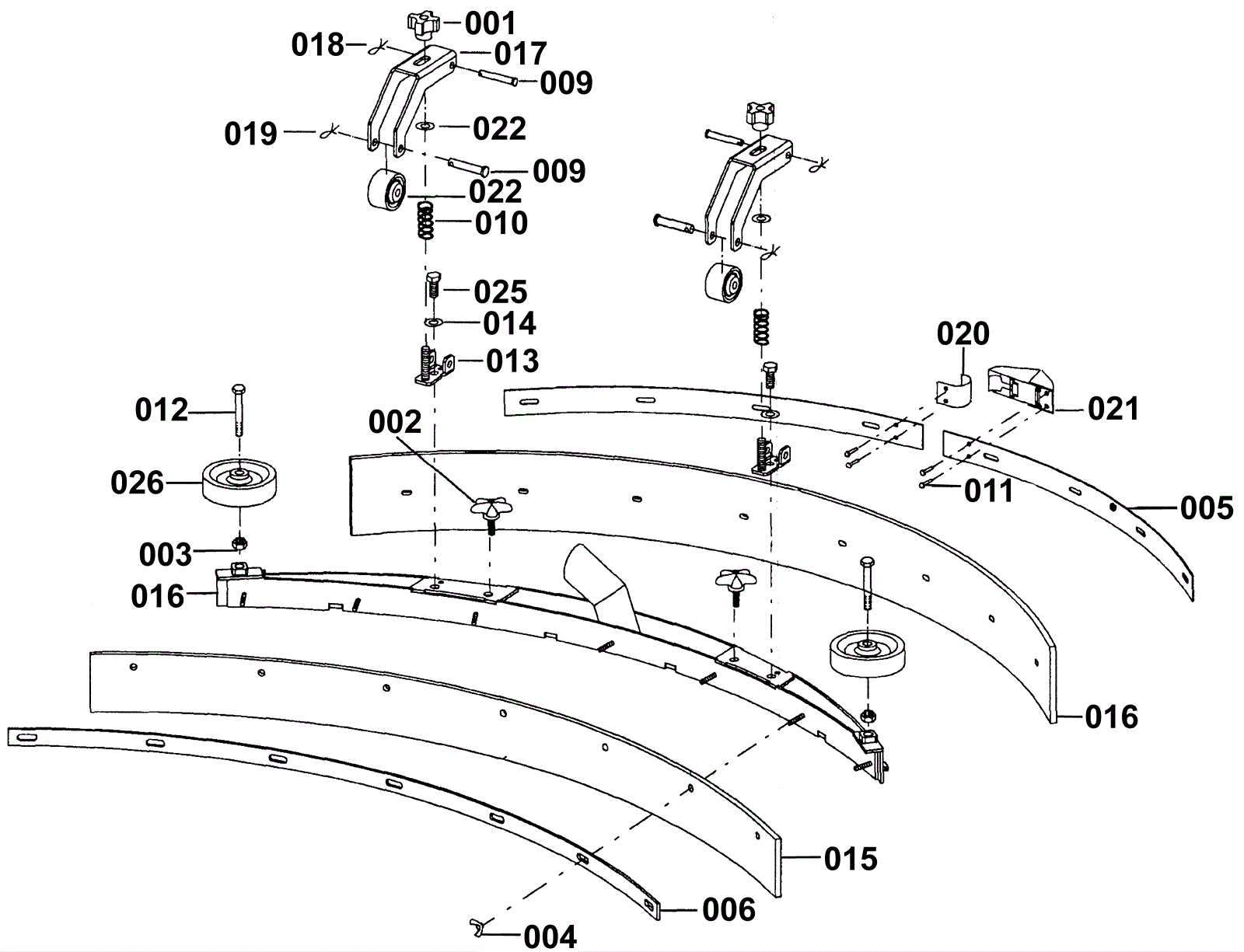

TRIDENT TR24 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1736 Knob $13.42 2 usually ships 14-22 days
002 173-5145 5/16-18 x 1 stud knob $19.29 2 usually ships 1-5 days
003 999-0247 Nut 3/8-16 hex jam plain finish $0.99 2 ships same day
004 173-5027 Nut 1/4-20 wing locking $2.97 7 usually ships 14-22 days
005 173-5147 Squeegee plate rear retaining $34.32 2 usually ships 14-22 days
006 173-5148 Squeegee plate front retaining $90.38 1 usually ships 1-5 days
007 173-7172 Squeegee plate right adjustment $65.45 2 usually ships 1-5 days
009 173-1726 Clevis pin $4.49 2 usually ships 1-5 days
010 173-3181 Clevis pin $7.10 2 ships same day
011 173-2797 Rivet $1.57 4 usually ships 14-22 days
012 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
013 999-0662 Screw 1/4-20 x 2 round head phillips zinc plated $0.99 2 ships same day
014 189-0353 Compression spring $15.65 2 usually ships 14-22 days
015 173-5157 Squeegee blade 24 inch die cut front (OBSOLETE) $59.40 1 usually ships 14-22 days
016 173-5158 Squeegee blade 24 inch die cut rear (OBSOLETE) $83.60 1 usually ships 14-22 days
017 173-7173 Squeegee height adjustment $52.47 2 usually ships 1-5 days
018 173-1130 Cotter ring $2.42 2 ships same day
019 173-1480 Cotter ring $2.12 2 ships same day
020 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
021 170-7029 Keeper $3.75 1 ships same day
022 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
023 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
025 173-3028 Roller wheel $33.56 2 ships same day
026 189-0326 Bumper wheel $29.04 2 usually ships 14-27 days
