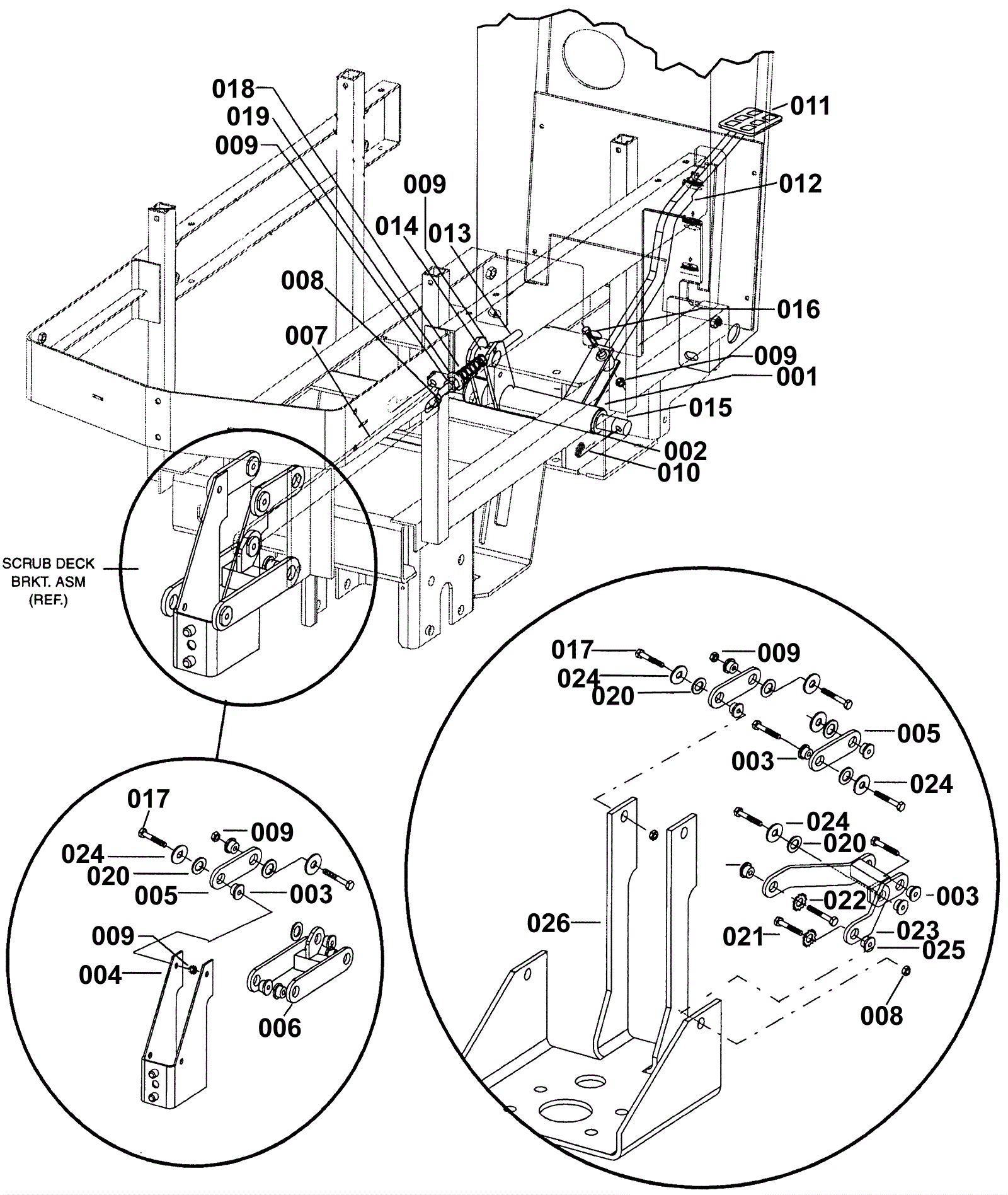

TRIDENT TR24 Scrub Deck Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Scrub deck linkage assembly usually ships 3-26 days
002 173-7161 Flanged bearing $15.07 2 usually ships 14-22 days
003 173-7162 Bushing 3/4 x 3/8 x 1/2 bronze $8.64 9 On 20 inch model, quantity is 7 usually ships 1-5 days
004 173-7163 Scrub deck linkage assembly (OBSOLETE) $116.89 1 usually ships 1-5 days
005 173-7164 3 inch pleated arm linkage (OBSOLETE) $39.24 2 usually ships 1-5 days
006 173-7165 Arm bracket linkage assembly (OBSOLETE) $140.57 2 usually ships 1-5 days
007 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
008 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 1 On 20 inch model, quantity is 2 usually ships 14-22 days
009 173-0489 Cotter pin $0.99 1 On 20 inch model, quantity is 7 usually ships 1-5 days
010 173-7167 Pedal pad (OBSOLETE) $20.48 2 usually ships 1-5 days
011 173-7168 Scrub deck pedal assembly (OBSOLETE) $75.90 1 usually ships 1-5 days
012 173-7168 Scrub deck pedal assembly (OBSOLETE) $75.90 1 usually ships 1-5 days
013 173-1983 Deck Front Pivot Spring Rod (OBSOLETE) $12.36 1 usually ships 1-5 days
014 173-1982 deck lift front pivot rod (OBSOLETE) $42.74 1 usually ships 1-5 days
015 173-7169 Rod 3/4 x 8-45/64 (OBSOLETE) $33.13 1 usually ships 1-5 days
016 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 1 ships same day
017 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 9 On 20 inch model, quantity is 7 ships same day
018 173-1894 Term connector $65.45 1 usually ships 1-5 days
019 999-0617 Washer 3/8 x 1 flat stainless steel $1.65 1 ships same day
020 999-9154 Washer 3/4 flat nylon $1.45 5 usually ships 12-18 days
021 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 On 20 inch model, quantity is 2 ships same day
022 999-1144 Washer 3/8 external star lock stainless steel $0.99 2 On 20 inch model, quantity is 2 ships same day
023 173-7170 Scrub deck linkage assembly (OBSOLETE) $151.60 1 On 20 inch model, quantity is 1 usually ships 1-5 days
024 999-0328 Washer 7/16 USS flat $0.99 5 ships same day
025 173-1192 threaded .74 OD x 3/8-16 Br Brushing $92.40 2 On 20 inch model, quantity is 2 usually ships 1-5 days
026 173-7171 Scrub deck mounting plate (OBSOLETE) $117.84 1 On 20 inch model, quantity is 1 usually ships 1-5 days
