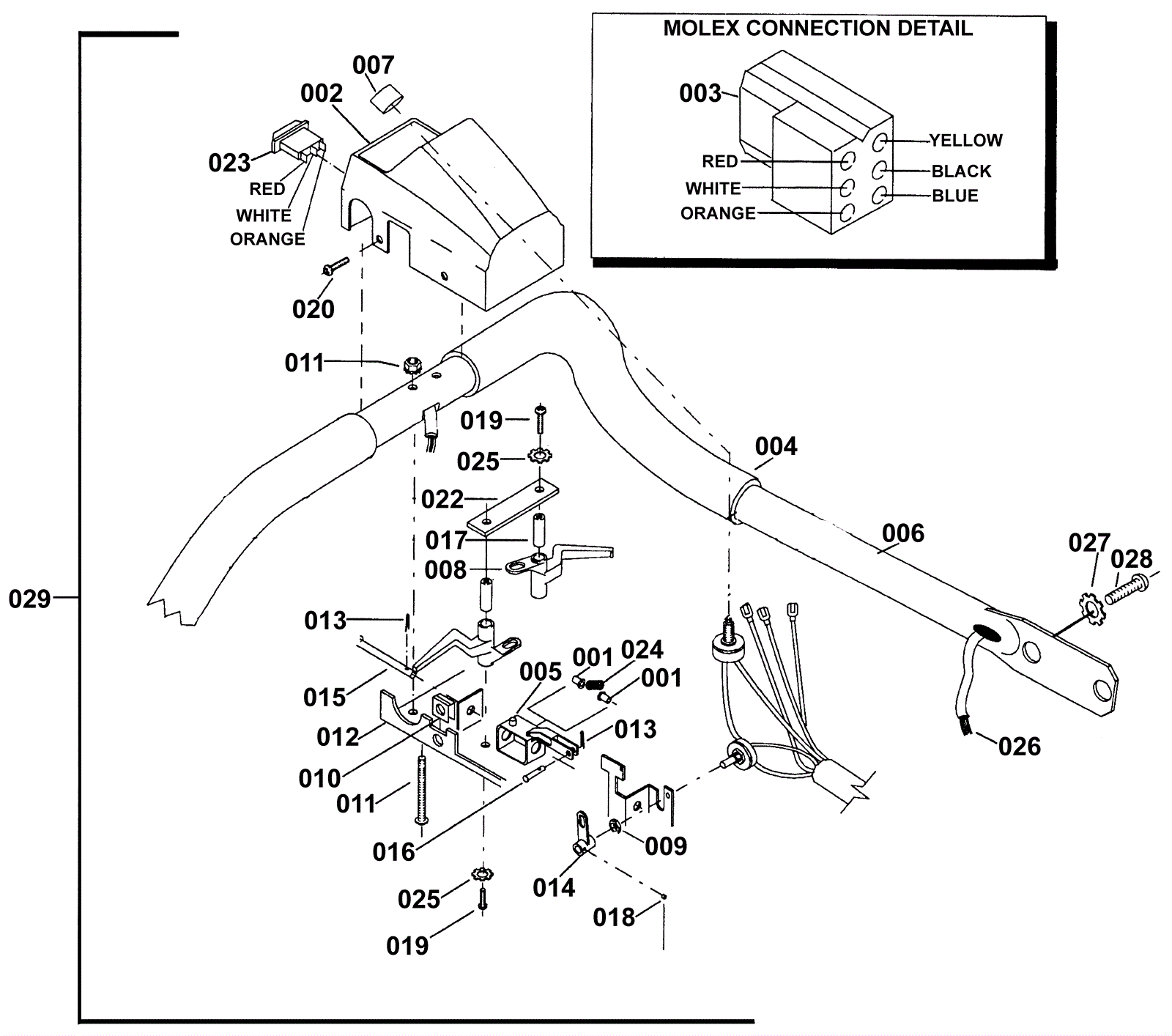

TRIDENT TR24 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1036 Propel control brushing $18.10 2 usually ships 1-5 days
002 173-1029 Propel Handle Cover (OBSOLETE) $72.89 1 usually ships 1-5 days
003 173-4052 Connector Molex 6 Pin receptacle $5.17 1 usually ships 14-22 days
004 173-1043 Handle x 9.5 inch Grip $3.39 2 usually ships 14-22 days
005 173-1035 Lever Centering Guide $38.58 1 usually ships 1-5 days
006 173-1044 Propel 14-7/8 handle (OBSOLETE) $155.32 1 usually ships 1-5 days
007 173-1041 Speed control knob $18.04 1 usually ships 14-22 days
008 173-1032 Propel Control Handle Lever $25.74 2 usually ships 1-5 days
009 173-3896 Nut 3/8-27 Panel $0.99 1 usually ships 14-22 days
010 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 4 usually ships 14-22 days
011 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
012 173-1034 Propel Control Plate Assembly $89.65 1 usually ships 1-5 days
013 173-1039 Cotter Pin 1/16 x 3/4 $0.99 2 usually ships 1-5 days
014 173-1042 Potentiometer pivot (OBSOLETE) $20.94 1 usually ships 14-22 days
015 173-1033 Clevis Pin $5.08 1 usually ships 1-5 days
016 173-1038 Pin Clevis 3/16 x 1/12 $3.87 1 usually ships 1-5 days
017 173-1031 Handle Lever Pivot Rod $46.86 2 usually ships 1-5 days
018 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 1 ships same day
019 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
020 173-2566 Screw #10 x 1/2 pan head $1.03 4 ships same day
021 999-0744 Screw 10-32 x 1 3/4 pan head phillips zinc plated $0.99 2 ships same day
022 173-1030 Lever Pivot Support $17.49 1 usually ships 1-5 days
023 173-1040 36VDC SPST illuminated switch $53.79 1 usually ships 14-22 days
024 173-1037 Comp..36 D x 1.12L x .04W Spring $8.99 1 usually ships 1-5 days
025 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
026 173-1045 Propel wiring harness $198.40 1 usually ships 1-5 days
027 999-1144 Washer 3/8 external star lock stainless steel $0.99 4 ships same day
028 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
029 173-7160 Handle propel assembly (OBSOLETE) $777.79 Includes 001-028 usually ships 1-5 days
