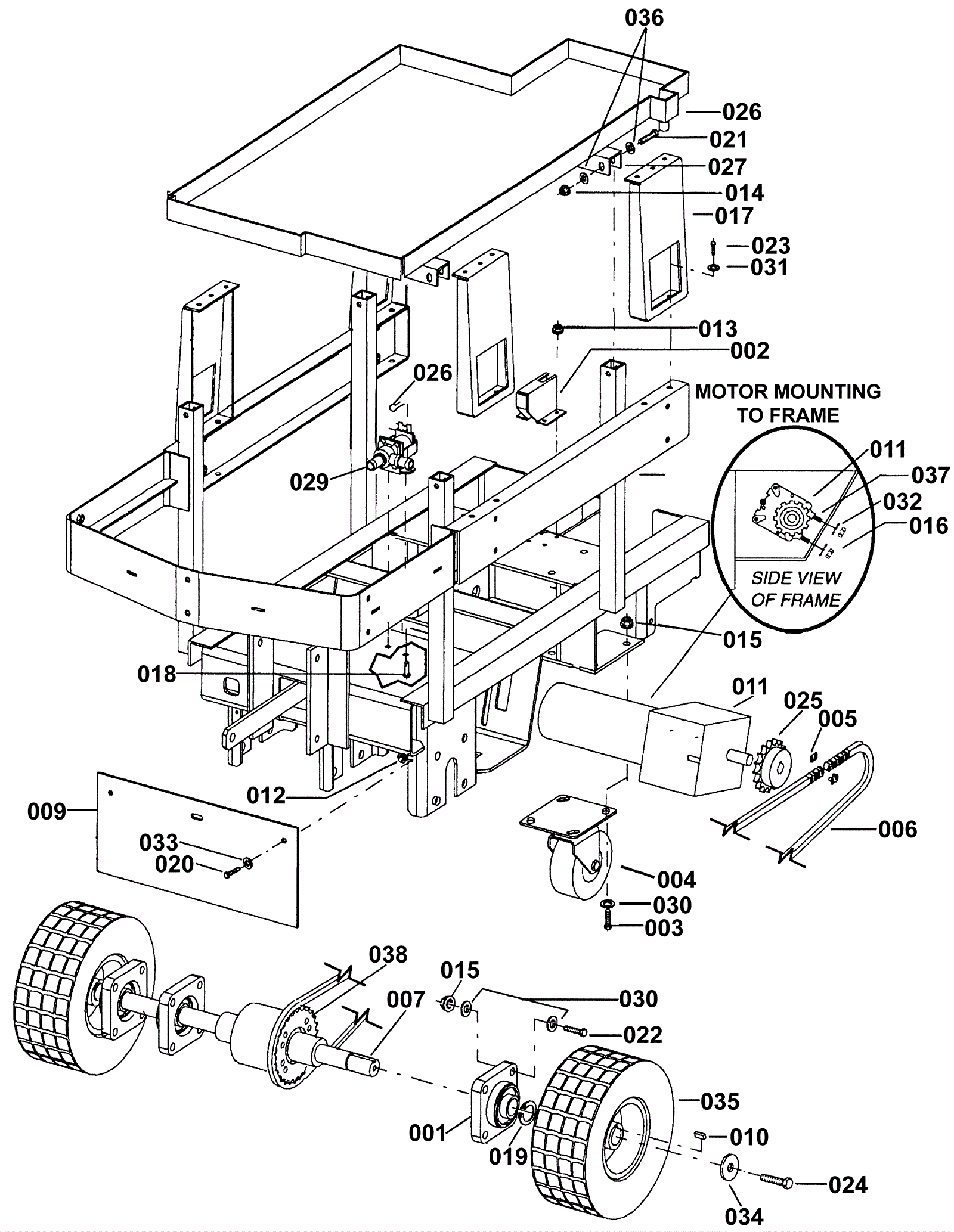

TRIDENT TR24 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1063 Differential bearing $253.51 3 usually ships 1-5 days
002 173-1223 C17/20 lift cable pulley bracket $43.78 1 usually ships 1-5 days
003 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
004 173-0422 4 inch swivel caster wheel $172.70 2 ships same day
005 173-1065 Master link #40 1/2 chain $6.55 1 usually ships 1-5 days
006 173-7132 Chain 1/2 x 23-1/2 inches (OBSOLETE) $26.92 1 usually ships 1-5 days
007 173-7133 Differential 1 x 19-5/8 inches $303.11 1 usually ships 1-5 days
008 173-7134 Frame assembly (OBSOLETE) $942.68 1 usually ships 1-5 days
009 173-7135 Splash guard (OBSOLETE) $20.04 1 usually ships 1-5 days
010 189-0323 Square keyway $35.72 2 usually ships 14-27 days
011 173-7136 Motor 24v 1/2 hp 101 rpm $1,320.00 1 usually ships 14-22 days
012 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 11 ships same day
014 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
015 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 33 usually ships 14-22 days
016 999-1142 Nut 5/16-24 nylock insert lock zinc plated $0.99 4 ships same day
017 173-7137 Panel plate bracket (OBSOLETE) $64.67 4 usually ships 1-5 days
018 173-1474 Clevis pin $0.99 2 usually ships 1-5 days
019 173-1062 1.0 extension snap hd ring $5.50 2 usually ships 1-5 days
020 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 3 ships same day
021 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 4 ships same day
022 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 12 ships same day
023 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
024 999-1143 Bolt 5/16-24 x 3/4 hex head stainless steel $1.01 2 ships same day
025 173-7138 Sprocket 5/8 $101.75 1 usually ships 1-5 days
026 173-7139 Battery tray liner (OBSOLETE) $118.53 1 usually ships 1-5 days
027 173-7140 Battery tray assembly (OBSOLETE) $226.28 1 usually ships 1-5 days
028 173-1130 Cotter ring $2.42 2 ships same day
029 189-0343 24V solenoid valve with hosebarb $120.82 1 usually ships 1-5 days
030 999-0617 Washer 3/8 x 1 flat stainless steel $1.65 32 ships same day
031 999-0017 Washer 1/4 external star lock $0.99 8 ships same day
032 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
033 999-0006 Washer 3/16 flat zinc plated $0.99 3 ships same day
034 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
035 N/A Not available Call for price 2 (Wheel) usually ships 3-26 days
036 999-0123 Washer 1/4 SAE flat zinc plated $0.99 8 ships same day
037 173-7141 Screw 5/16-24 x 1-1/4 socket head stainless steel $2.64 4 usually ships 1-5 days
038 173-7142 Sprocket 1/2 $102.51 1 Service item usually ships 1-5 days
