SABER CUTTER 32

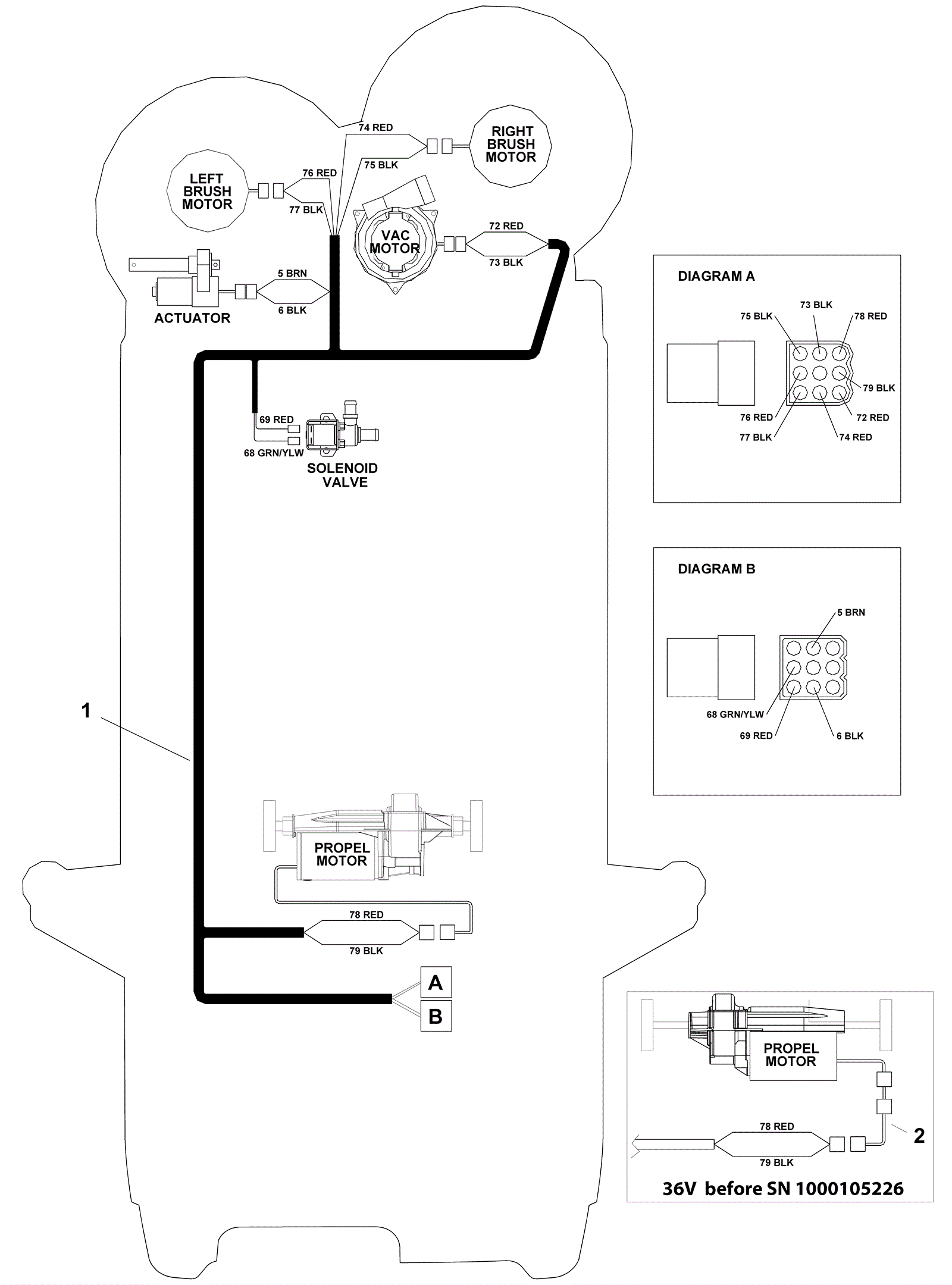

Main Harness Wiring Diagram
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
173-8353
Main harness
$309.55
1
usually ships 14-22 days
2
173-1766
Polarity jumper wire assembly
$93.58
1
(36V) (before SN 1000105226)
usually ships 14-22 days
