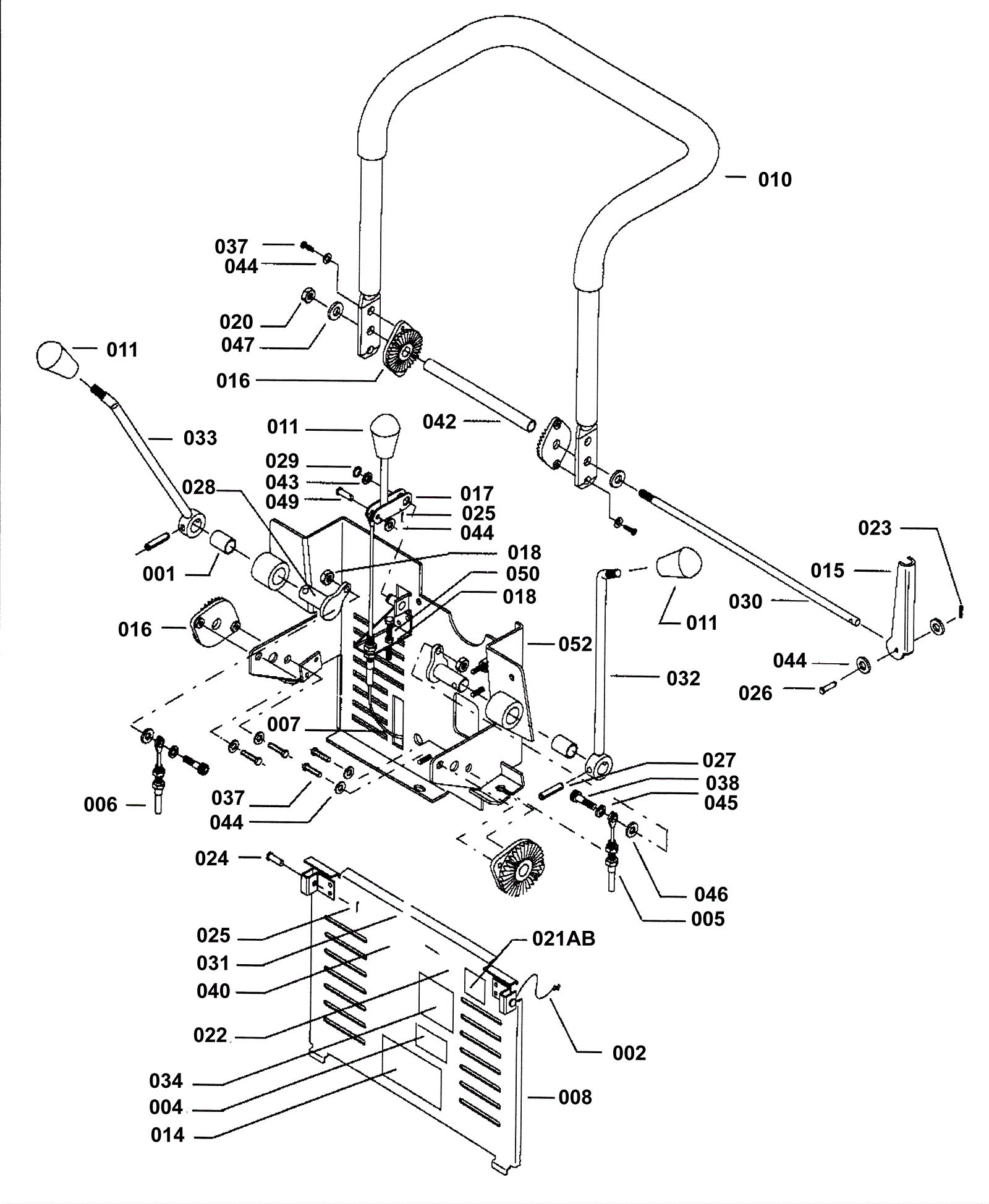

POWERTEC C17 Mechanical Control Assembly - After SN 5000001

#PartDescriptionPriceReqNotesAvailability
001 173-5089 Bearing .753 x .627 1.0 L $2.53 2 usually ships 1-5 days
002 173-5090 Rear compartment door cable $32.89 2 usually ships 1-5 days
004 173-1723 2 percent grade decal $4.29 1 usually ships 1-5 days
005 173-5091 Scrub deck cable (OBSOLETE) $58.16 1 usually ships 7-19 days
006 173-7529 Squeegee cable assembly (OBSOLETE) $149.60 1 usually ships 7-19 days
007 173-5093 Solution cable $40.15 1 usually ships 7-19 days
008 173-5094 Rear compartment door (OBSOLETE) $203.06 1 usually ships 1-5 days
010 173-4571 Handle with foam (OBSOLETE) $124.94 1 usually ships 1-5 days
011 173-1901 Solution lever knob $18.70 3 usually ships 1-5 days
014 173-4590 Charge warning label (OBSOLETE) $10.01 1 usually ships 1-5 days
015 173-0418 Handle locking lever $31.90 1 usually ships 7-19 days
016 173-5097 Handle adjustment lock $96.80 4 usually ships 7-19 days
017 173-5098 Solution lever $99.00 1 usually ships 1-5 days
018 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
020 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 1 ships same day
021 173-4591 Charger warning label (OBSOLETE) $4.58 1 usually ships 1-5 days
022 173-2073 Roll pin $0.99 1 usually ships 7-19 days
023 173-1130 Cotter ring $2.42 1 ships same day
024 173-1474 Clevis pin $0.99 2 usually ships 1-5 days
025 173-1130 Cotter ring $2.42 3 ships same day
026 173-0419 Clevis pin $8.47 1 usually ships 7-19 days
027 173-5100 Pin 1/4 x 1.0 roll $5.06 2 usually ships 1-5 days
028 173-5101 Cable lever pivot (OBSOLETE) $55.99 2 usually ships 1-5 days
029 173-3429 3/8 snap ring (OBSOLETE) $2.66 1 usually ships 7-19 days
030 173-5102 Handle adjustment rod $38.03 1 usually ships 1-5 days
031 N/A Not available Call for price 1 (Lock rod) usually ships 3-26 days
032 173-5104 Scrub deck lift rod assembly (OBSOLETE) $72.93 1 usually ships 1-5 days
033 173-5105 Squeegee lift rod assembly (OBSOLETE) $70.47 1 usually ships 1-5 days
034 173-0253 Warning explosion decal $13.97 1 usually ships 1-5 days
035 173-1529 Windsor service card (OBSOLETE) $6.05 1 usually ships 1-5 days
036 173-1530 Service card band $3.70 1 usually ships 1-5 days
037 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel $0.99 8 usually ships 1-5 days
038 173-5107 Bolt 5/16 x 3/8 shoulder $10.01 2 usually ships 1-5 days
040 173-1037 Comp..36 D x 1.12L x .04W Spring $8.99 1 usually ships 1-5 days
042 173-5108 Handle adjustment tube (OBSOLETE) $31.80 1 usually ships 1-5 days
043 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
044 999-0998 Washer #10 flat stainless steel $0.99 11 ships same day
046 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
047 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
049 173-5110 Clevis pin $7.43 1 usually ships 1-5 days
050 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.99 1 usually ships 1-5 days
052 173-5111 Rear panel assembly (OBSOLETE) $170.51 1 usually ships 1-5 days
