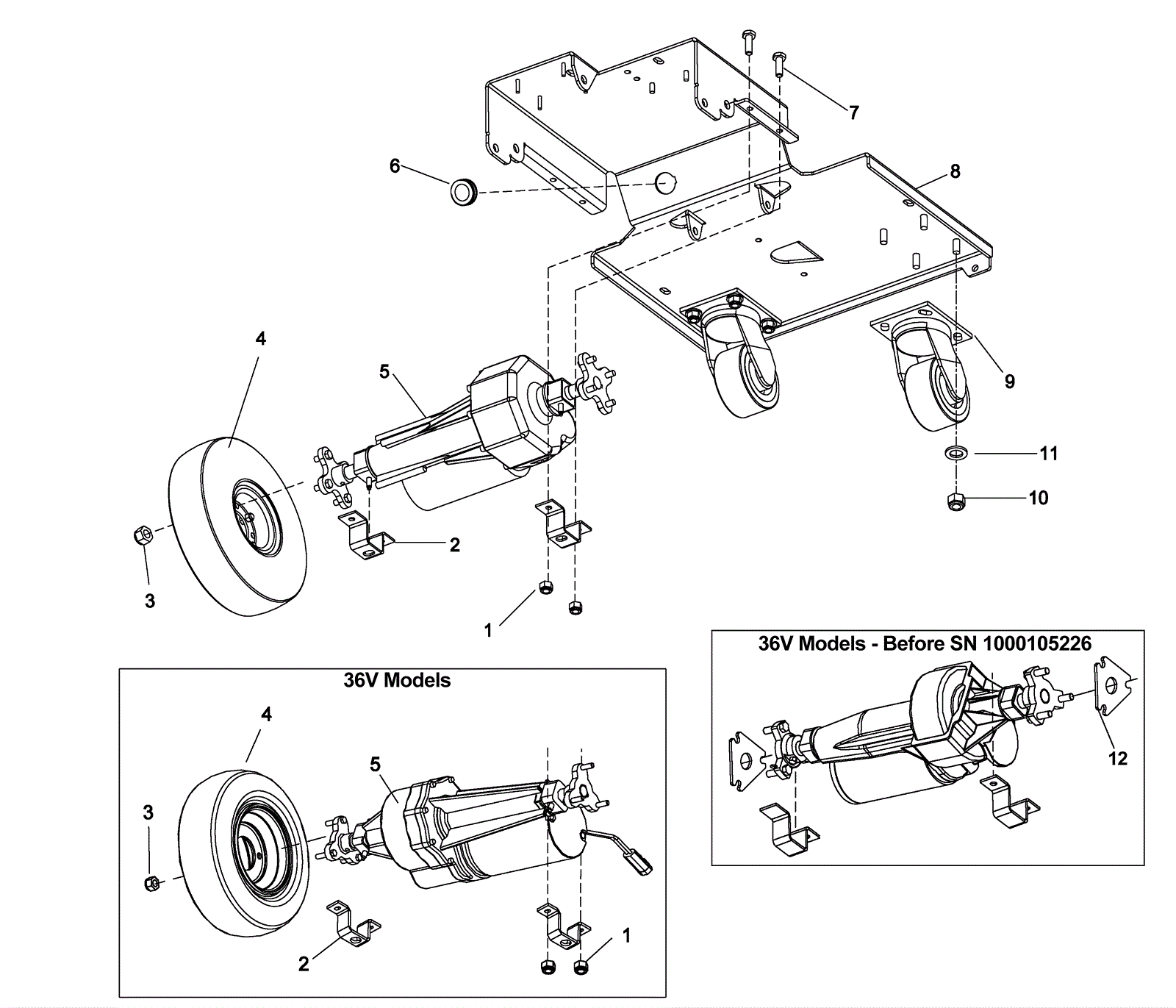

SABER CUTTER 32 Wheels and Frame Assembly - 24V and 36V Standard and Deluxe

#PartDescription ReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4 usually ships 11-14 days
2a 173-8343 Transaxle mounting bracket (OBSOLETE) 2 (24V standard and deluxe) usually ships 14-20 days
2b 173-4301 Transaxle mount bracket 2 (36V standard and deluxe) usually ships 1-5 days
3a 999-0296 Nut 5/16-24 nylon insert lock stainless steel 8 (24V standard and deluxe) usually ships 11-14 days
3b 173-3990 Nut 7/16-20 wheel 6 (36V standard and deluxe) usually ships 1-5 days
4a 173-1701 10 inch knobby wheel assembly 2 usually ships 14-20 days
4b 189-0349 10 inch non-marking foam filled wheel assembly 2 (optional) usually ships 14-20 days
4c 173-1699 10 inch solid wheel 2 (optional) usually ships 14-20 days
4d 173-3294 12 inch knobby foam filled wheel assembly (black) (OBSOLETE) 2 (36V standard and deluxe) usually ships 14-20 days
4e 173-3290 12 inch solid wheel assembly (OBSOLETE) 2 (36V standard and deluxe) usually ships 1-5 days
5a 189-0347 24V drive motor axle 1 (includes 5b-5d) usually ships 14-20 days
5b 173-8344 24V transaxle brush set 1 usually ships 14-20 days
5c 173-8345 Transaxle hub kit 1 (after SN 1000094309) usually ships 14-20 days
5d 173-8346 Woodruff key 1 (after SN 1000094309) usually ships 14-20 days
5e 173-1779 Drive motor axle 1 (36V standard and deluxe) usually ships 1-5 days
5f 173-1576 Carbon brush (pkg of 4) 1 (36V standard and deluxe) usually ships 14-20 days
5g 173-9038 Transaxle hub kit 1 (36V standard and deluxe) usually ships 1-5 days
6 173-1681 Grommet 1 usually ships 14-20 days
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4 usually ships 11-14 days
8a 173-8347 Main frame 1 (24V standard and deluxe) usually ships 1-5 days
8b 173-4302 Main frame 1 (36V standard and deluxe) usually ships 1-5 days
9a 991-2006 Caster wheel assembly (red) 2 usually ships 14-22 days
9b 173-4346 4 inch caster wheel 2 usually ships 14-20 days
9c 991-2008 4 inch caster wheel with bearings (red) 2 (NON-OEM) usually ships 14-22 days
10a 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 8 (24V standard and deluxe) usually ships 11-14 days
10b 999-0488 Nut 3/8-16 flange lock serrated zinc plated 8 (36V standard and deluxe) usually ships 11-14 days
11 999-0617 Washer 3/8 x 1 flat stainless steel 8 (24V standard and deluxe) usually ships 11-14 days
12 173-4303 Transaxle spacer 2 (before SN 1000105226) (36V standard and deluxe) usually ships 1-5 days
