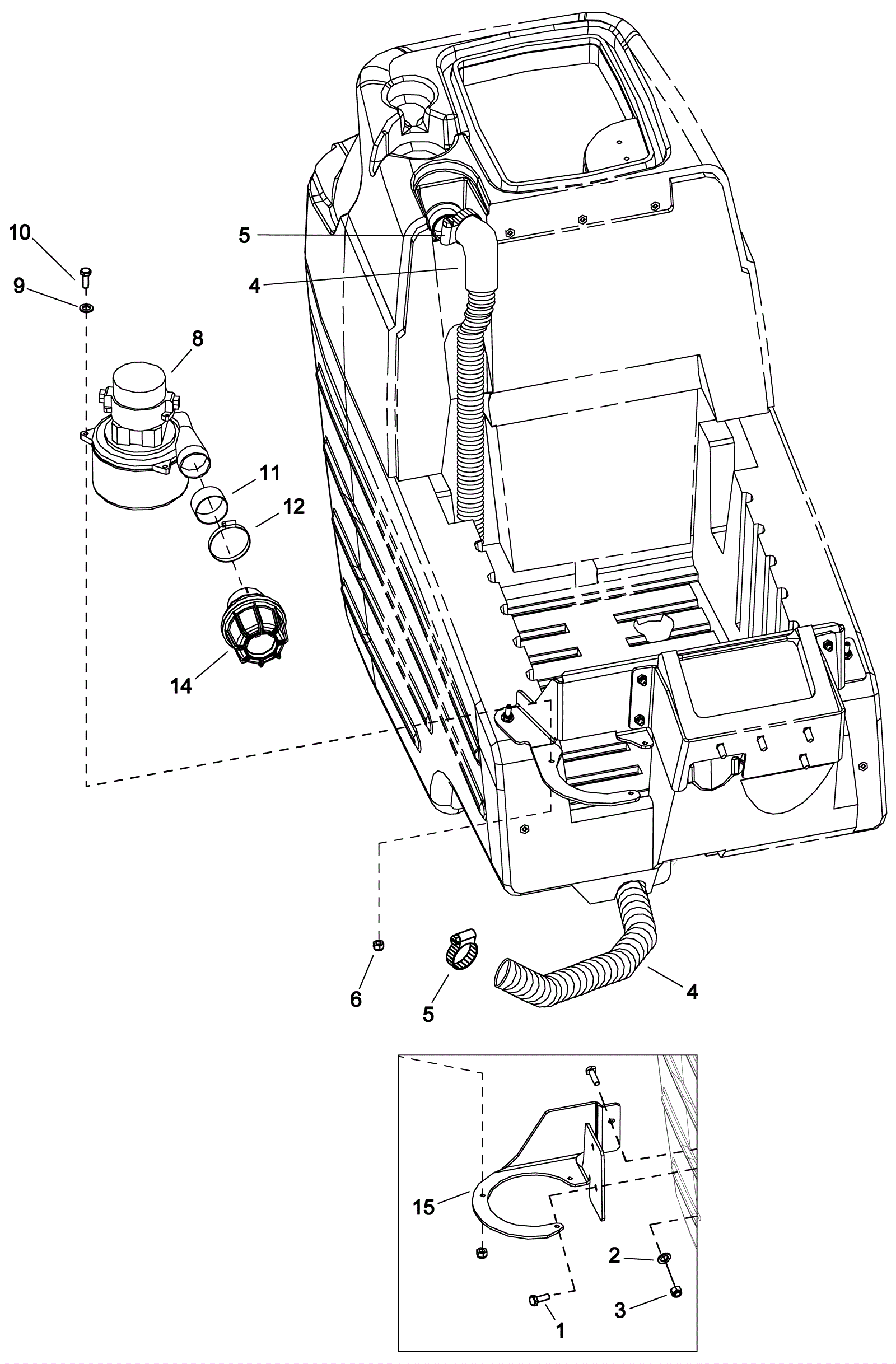

SABER CUTTER 32 Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 3 usually ships 11-14 days
2 999-0617 Washer 3/8 x 1 flat stainless steel 3 usually ships 11-14 days
3 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 3 usually ships 11-14 days
4 173-8338 Vacuum hose assembly 1 usually ships 14-20 days
5 189-0329 Hose clamp 2 usually ships 1-5 days
6 999-0304 Nut 1/4-20 nylon lock jam stainless steel 3 usually ships 11-14 days
8a 273-0917 24V 3 stage vacuum motor 1 (24V standard and deluxe) (OEM) usually ships 14-20 days
8b 991-1230 24V 3 stage vacuum motor tangential with snout 1 (24V standard and deluxe) (NON-OEM) usually ships 13-17 days
8c 173-0402 36V 3 stage vacuum motor assembly 1 (36V standard and deluxe) (OEM) usually ships 14-20 days
8d 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug 1 (36V standard and deluxe) (NON-OEM) usually ships 1-5 days
8e 173-8340 Carbon brush (pkg of 2) 1 (24V standard and deluxe) (before SN 1000122411) usually ships 14-20 days
8f 173-4347 Carbon brush (pkg of 2) (OBSOLETE) 1 (24V standard and deluxe) (after SN 1000122411) usually ships 14-20 days
8g 173-4105 Carbon brush 1 (36V standard and deluxe) usually ships 14-20 days
8h 991-1254 Carbon brush (set of 2) 1 (NON-OEM) usually ships 13-17 days
9 999-0123 Washer 1/4 SAE flat zinc plated 3 usually ships 11-14 days
10 999-9072 Bolt 1/4-20 x 1 hex head cap 3 usually ships 11-14 days
11 173-8341 Tube 1 usually ships 14-20 days
12 997-2003 Hose clamp 1 usually ships 7-8 days
14 173-4106 Vacuum motor muffler 1 usually ships 14-20 days
15a 173-8339 Vacuum mount bracket 1 (24V standard and deluxe) usually ships 1-5 days
15b 173-4300 Vacuum motor mounting bracket 1 (36V standard and deluxe) usually ships 1-5 days
