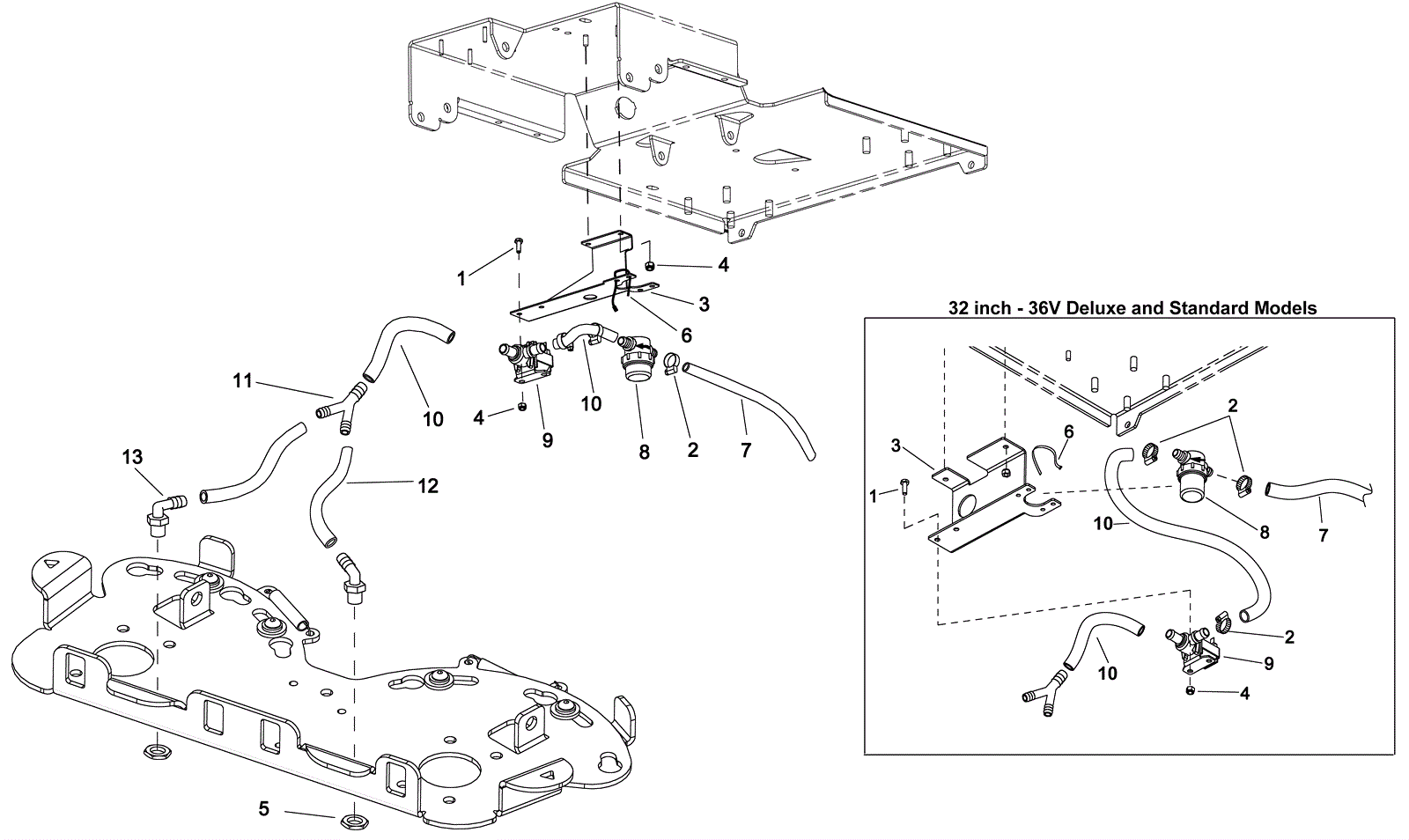

SABER CUTTER 32 Solution Assembly - Internal

#PartDescription ReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2 usually ships 11-14 days
2 173-1821 Hose clamp 3 usually ships 14-20 days
3a 173-8320 Filter/solution mount bracket 1 (26 inch and 32 inch - 24V deluxe and standard) usually ships 1-5 days
3b 173-4307 Filter/solenoid mount bracket 1 (32 inch - 36V deluxe and standard) usually ships 1-5 days
4 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4 usually ships 11-14 days
5a 173-4130 Nut 3/8 plastic nickel plated thread (OBSOLETE) 2 (24V and 36V standard) usually ships 14-20 days
5b 173-2823 Nut 10-24 joint connect black 2 (24V and 36V deluxe) usually ships 1-5 days
6 273-3820 11 inch cable tie 4 usually ships 14-20 days
7 173-8322 Wire bound hose 1/2 x 12 inch 1 usually ships 14-20 days
8a 173-8323 Solution filter assembly 1 usually ships 14-20 days
8b 173-3050 O-ring gasket 1 usually ships 14-20 days
8c 173-3051 Mesh strainer screen 1 usually ships 14-20 days
8d 273-6141 Strainer cap 1 usually ships 14-20 days
8e 991-8575 Short bowl (clear) 1 (NON-OEM) usually ships 13-17 days
9a 189-0343 24V solenoid valve with hosebarb 1 (26 inch and 32 inch - 24V deluxe and standard) usually ships 1-5 days
9b 173-1098 36V solenoid valve 1 (32 inch - 36V deluxe and standard) usually ships 1-5 days
9c 173-8324 Solenoid diaphragm 1 usually ships 14-20 days
9d 173-8325 Solenoid spring kit 1 usually ships 14-20 days
10 173-8326 Wire bound hose 1/2 x 8 inch 2 usually ships 14-20 days
11 173-1095 Tee fitting 1 usually ships 14-20 days
12 173-8327 Nylon braid 3/8 x 10 inch hose (OBSOLETE) 2 usually ships 14-20 days
13 173-1572 Hosebarb 3/8 x 3/8 inch 2 usually ships 14-20 days
