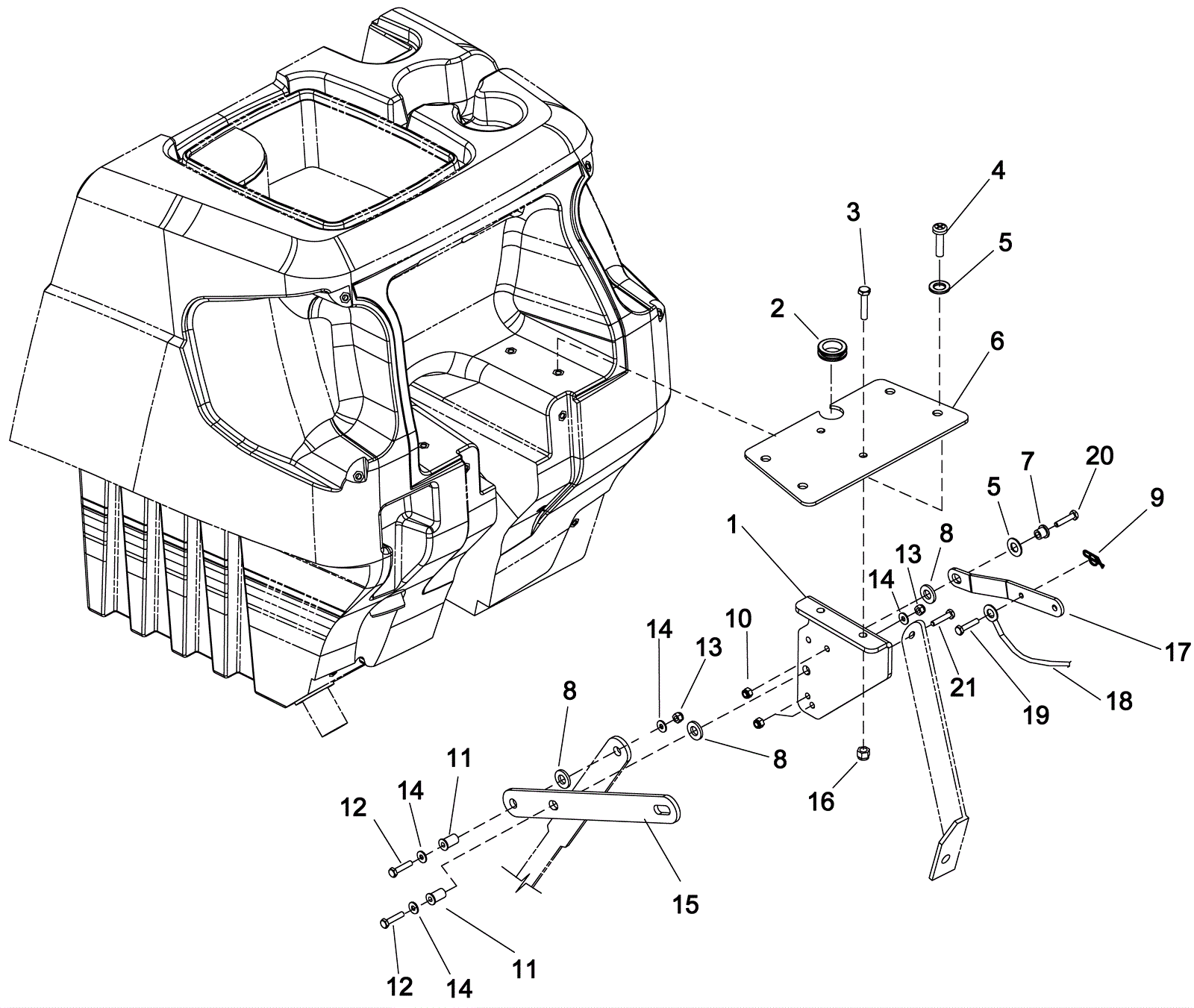

SABER CUTTER 32 Lift Handle Linkage Assembly - 32 inch - 36V Standard and Deluxe

#PartDescriptionPriceReqNotesAvailability
1 173-4329 Bottom pivot bracket lever $55.00 1 usually ships 1-5 days
2 173-1681 Grommet $0.99 1 usually ships 7-19 days
3 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
4a 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 5 (32 inch - 36V standard) ships same day
4b 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 4 (32 inch - 36V deluxe) ships same day
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
6 173-4330 Top pivot plate $77.00 1 usually ships 1-5 days
7 173-3116 Flanged bearing $8.47 1 usually ships 7-19 days
8 173-3963 Washer 1/2 thrust $7.32 3 usually ships 7-19 days
9 173-1130 Cotter ring $2.42 1 ships same day
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
11 173-8258 Flanged bearing $11.33 2 (32 inch - 36V standard) ships same day
12 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 (32 inch - 36V standard) ships same day
13 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 (32 inch - 36V standard) ships same day
14 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 (32 inch - 36V standard) ships same day
15 173-4331 Fixed deck lifting bar $51.59 1 (32 inch - 36V standard) usually ships 1-5 days
16 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
17 173-4332 Fixed squeegee lifting lever $48.73 1 usually ships 1-5 days
18 173-2848 Squeegee lift cable $108.35 1 usually ships 7-19 days
19 173-3153 Clevis pin $6.38 1 usually ships 7-19 days
20 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
21 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 (32 inch - 36V standard) ships same day
