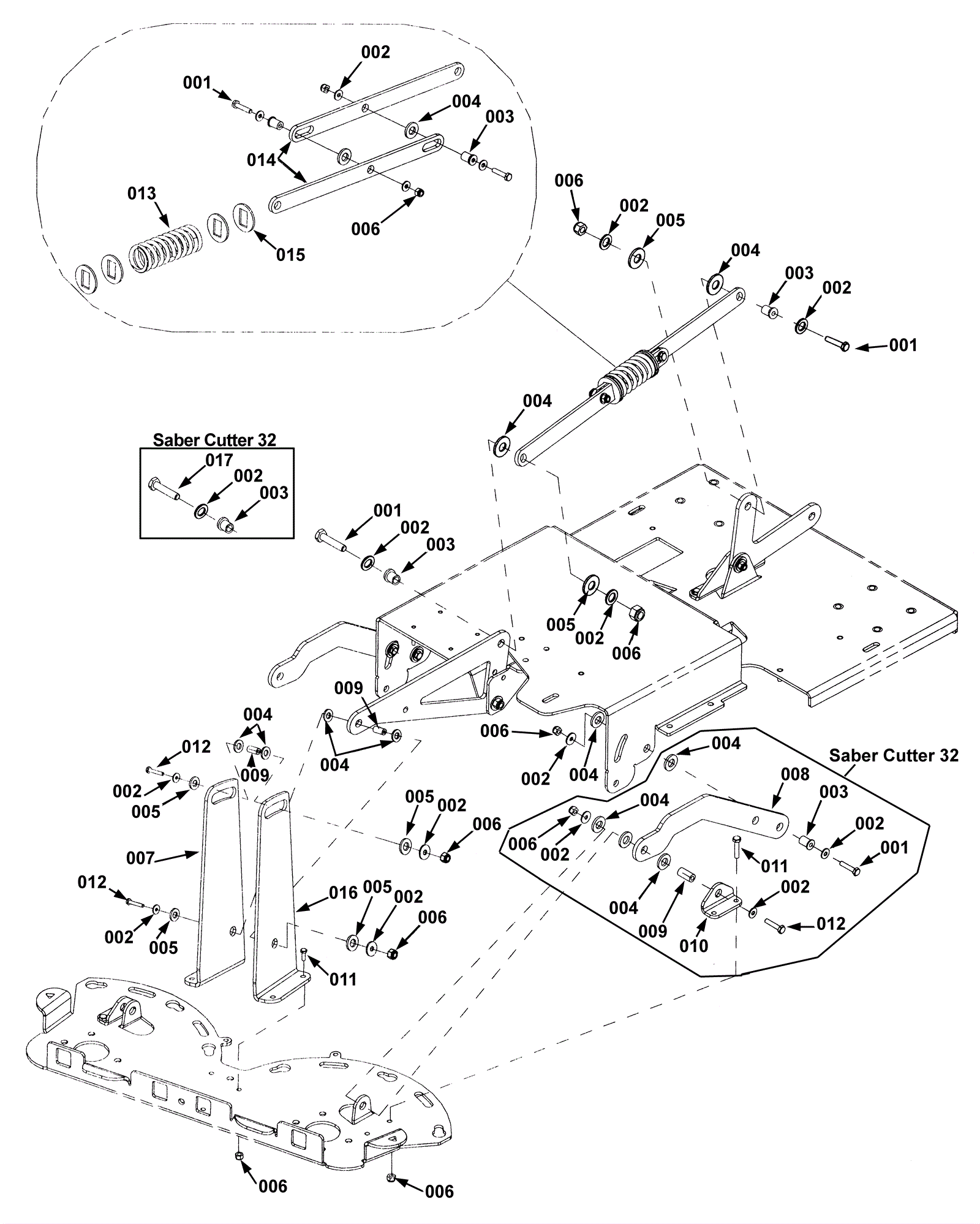

SABER CUTTER 32 Scrub Deck Lift Linkage Assembly - Center

#PartDescription ReqNotesAvailability
001a 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 7 Saber Cutter 32 usually ships 11-14 days
001b 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4 Saber Cutter 26 usually ships 11-14 days
001c 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1 Saber Cutter 32 usually ships 11-14 days
002a 999-0123 Washer 1/4 SAE flat zinc plated 24 Saber Cutter 32 usually ships 11-14 days
002b 999-0123 Washer 1/4 SAE flat zinc plated 12 Saber Cutter 26 usually ships 11-14 days
003a 173-8258 Flanged bearing 8 Saber Cutter 32 usually ships 14-20 days
003b 173-8258 Flanged bearing 4 Saber Cutter 26 usually ships 14-20 days
004a 173-3963 Washer 1/2 thrust 20 Saber Cutter 32 usually ships 14-20 days
004b 173-3963 Washer 1/2 thrust 8 Saber Cutter 26 usually ships 14-20 days
005 173-3964 Thrust washer 6 usually ships 14-20 days
006a 999-0304 Nut 1/4-20 nylon lock jam stainless steel 18 Saber Cutter 32 usually ships 11-14 days
006b 999-0304 Nut 1/4-20 nylon lock jam stainless steel 10 Saber Cutter 26 usually ships 11-14 days
007 173-8305 Right scrub deck lift bracket 1 usually ships 1-5 days
008 173-4314 Right bar linkage 2 usually ships 1-5 days
009a 173-8299 Bearing 4 Saber Cutter 32 usually ships 1-5 days
009b 173-8299 Bearing 1 Saber Cutter 26 usually ships 1-5 days
010 173-4315 Angle support bracket 2 usually ships 1-5 days
011a 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 8 Saber Cutter 32 usually ships 11-14 days
011b 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4 Saber Cutter 26 usually ships 11-14 days
012a 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 4 Saber Cutter 32 usually ships 11-14 days
012b 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2 Saber Cutter 26 usually ships 11-14 days
013 173-8308 Compression spring 1 usually ships 14-20 days
014 173-8306 Tensioner bar 2 usually ships 1-5 days
015 173-8307 Rectangular hole washer 4 usually ships 14-20 days
016 173-8304 Left scrub deck lift bracket 1 usually ships 1-5 days
017 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1 usually ships 11-14 days
