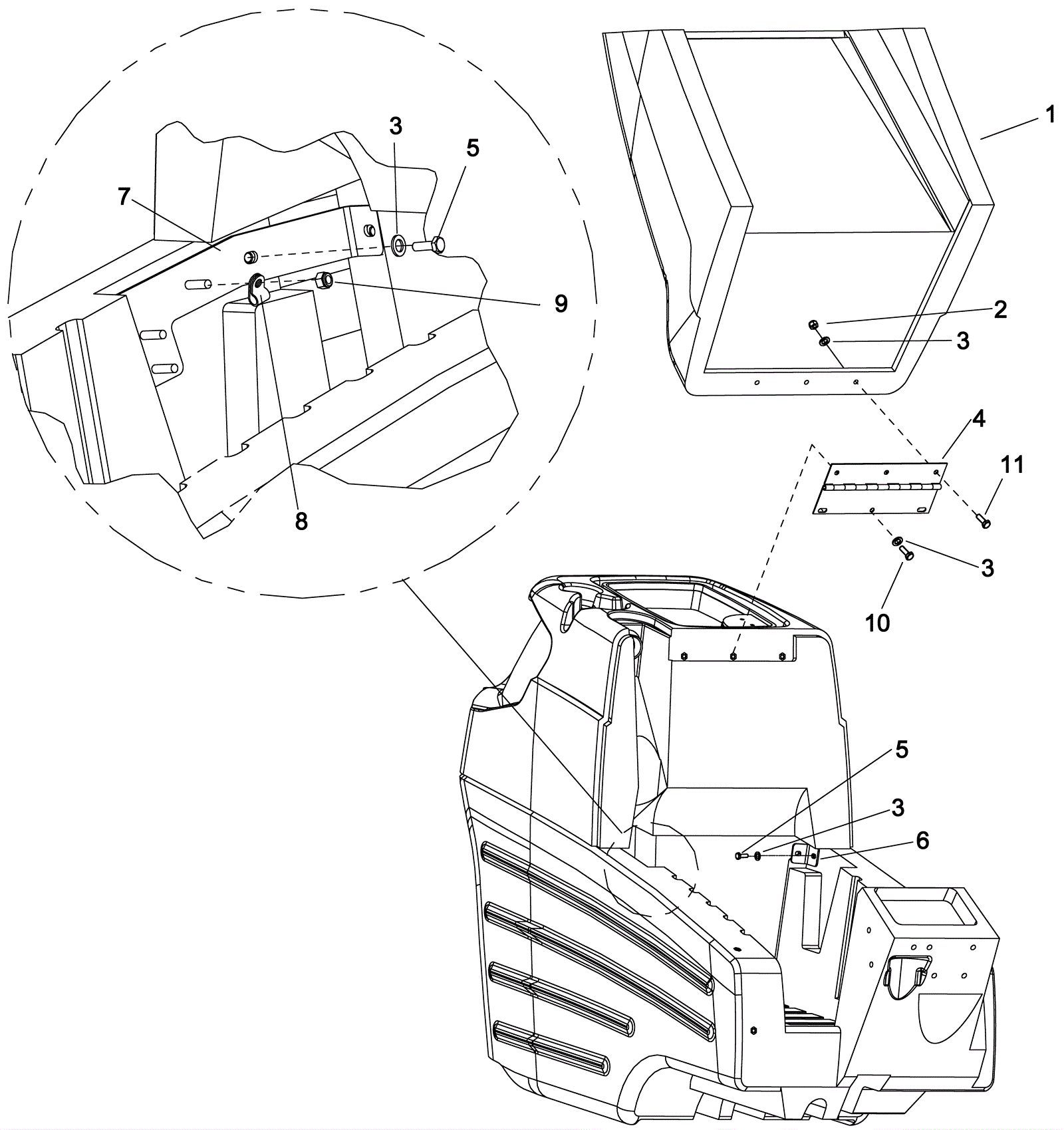

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
173-2873
|
Top cover (gray) |
$792.00
|
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
1b |
173-8233
|
Top cover (gray) |
$374.00
|
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 7-19 days |
2 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
3 |
|
ships same day |
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
10 |
|
ships same day |
4a |
173-2874
|
Hinge (cover to tank) |
$36.63
|
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
4b |
173-8234
|
Hinge (cover to tank) |
$119.90
|
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 1-5 days |
5 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
6a |
173-2875
|
Left tank bracket |
$34.32
|
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
6b |
173-8235
|
Left tank bracket |
$32.89
|
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 1-5 days |
7a |
173-2876
|
Right tank bracket |
$65.45
|
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
7b |
173-8236
|
Right tank bracket |
$73.15
|
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 1-5 days |
8 |
173-1772
|
P clamp |
$4.13
|
1 |
|
usually ships 1-5 days |
9 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
1 |
|
ships same day |
10 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
$1.25
|
3 |
|
ships same day |
11 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
3 |
|
ships same day |
N/S |
173-8237
|
Cargo net with hooks |
$92.40
|
1 |
|
usually ships 7-19 days |
