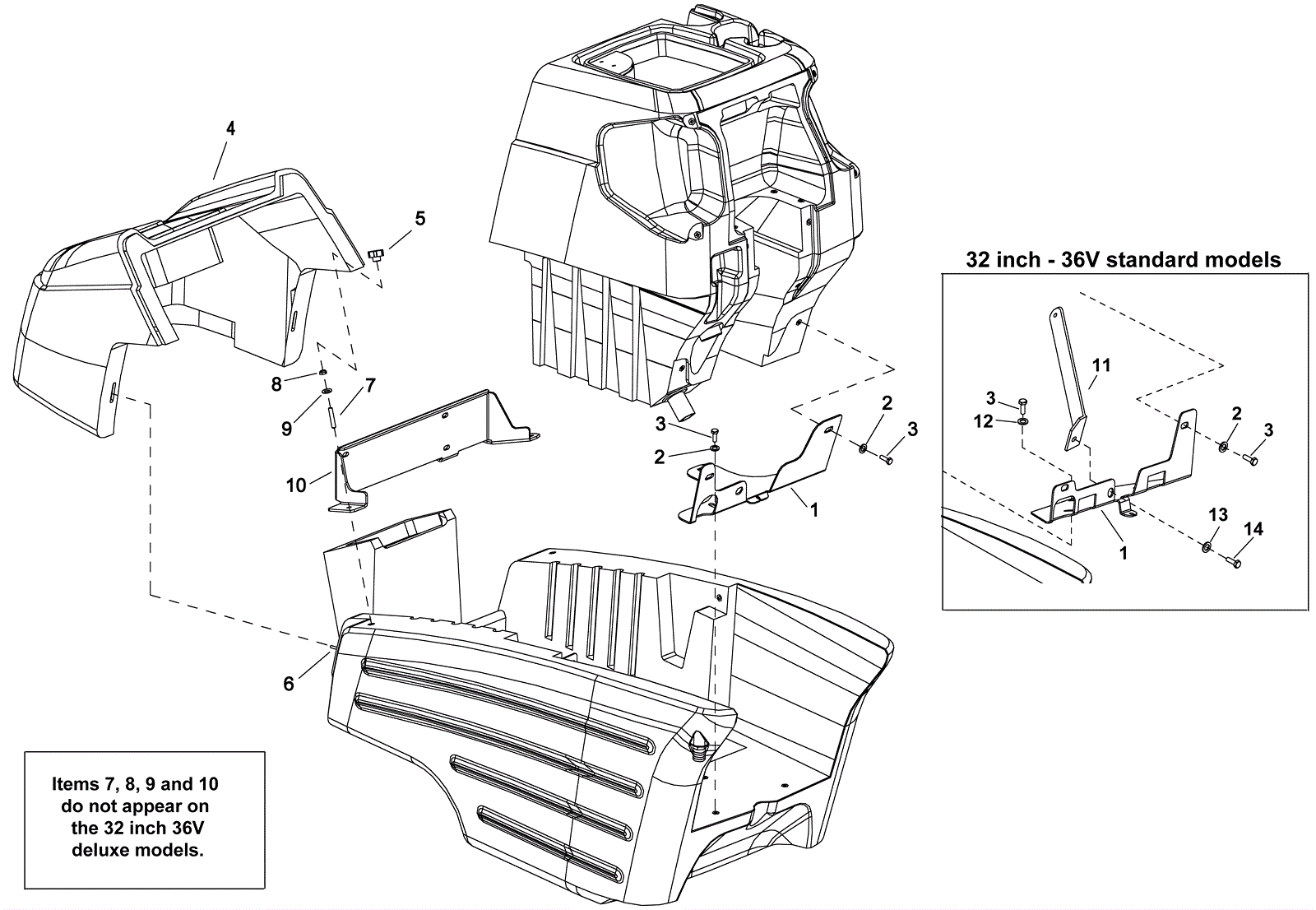

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
173-8359
|
Tank mounting bracket |
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 1-5 days |
1b |
173-2878
|
Tank mounting bracket with brake |
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
2a |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
(26 and 32 inch - 24V standard and deluxe and 32 inch - 36V standard) |
usually ships 11-14 days |
2b |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
4 |
(32 inch - 36V deluxe) |
usually ships 11-14 days |
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
4 |
|
usually ships 11-14 days |
4a |
173-8232
|
Front cover (gray) |
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 1-5 days |
4b |
173-2879
|
Front cover (gray) |
1 |
(32 inch - 36V standard and deluxe) |
usually ships 1-5 days |
5 |
173-1736
|
Knob |
2 |
|
usually ships 14-20 days |
7 |
273-0069
|
Screw 5/16-18 x 1 3/4 set stainless steel |
2 |
(26 and 32 inch - 24V standard and deluxe and 32 inch 36V standard) |
usually ships 1-5 days |
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 11-14 days |
9a |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 11-14 days |
9b |
173-2548
|
Washer M10 x 30mm plated |
2 |
(32 inch - 36V standard) |
usually ships 14-20 days |
10 |
273-0070
|
Tank support bracket |
1 |
(26 and 32 inch - 24V standard and deluxe) |
usually ships 14-20 days |
11 |
273-0045
|
Tank support arm |
1 |
(32 inch - 36V standard) |
usually ships 1-5 days |
12 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
3 |
(32 inch - 36V standard) |
usually ships 11-14 days |
13 |
173-2548
|
Washer M10 x 30mm plated |
1 |
(32 inch - 36V standard) |
usually ships 14-20 days |
14 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
(32 inch - 36V standard) |
usually ships 11-14 days |
