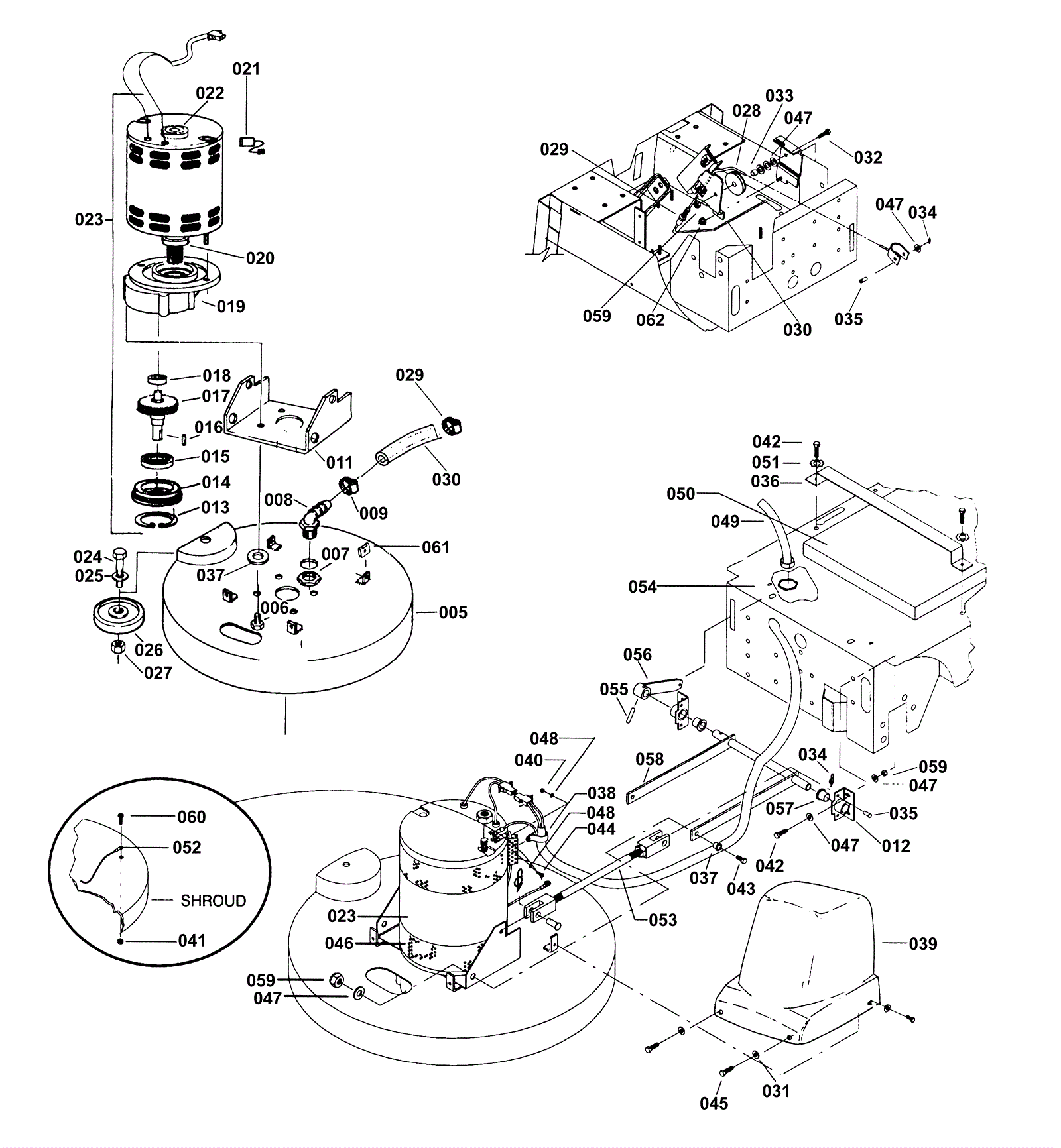

TRIDENT COMPACT 20 Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
001a 173-5112 Bumper strap assembly $169.00 1 usually ships 1-5 days
001b 173-1568 Worm clamp $59.00 1 usually ships 7-19 days
002 173-2483 Washer 1/4ID x 3/4OD plated $0.90 2 usually ships 1-5 days
003 173-1736 Knob $12.20 3 usually ships 7-19 days
004a 173-1027 Skirt $60.51 1 usually ships 7-19 days
004b 173-5113 Shroud skirt 3 1/4 x 49 $94.19 1 usually ships 1-5 days
005a 173-5114 Scrub deck TC17 (OBSOLETE) $160.69 1 usually ships 1-5 days
005b 173-5115 Scrub deck TC20 (OBSOLETE) $188.60 1 usually ships 1-5 days
006 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
007 173-2574 Nut 3/8 hex brass nickel plated thread $9.95 1 usually ships 1-5 days
008 173-1072 Hosebarb 3/8 x 1/2 inch $8.40 1 usually ships 7-19 days
009 173-1821 Hose clamp $5.81 2 ships same day
010 173-5116 1/2 x 22 inch Clear solution feed hose (OBSOLETE) $8.40 1 usually ships 1-5 days
011 173-5117 Scrub deck mounting bracket $106.00 1 usually ships 1-5 days
012 173-5118 Scrub deck collar assembly (OBSOLETE) $25.79 1 usually ships 1-5 days
013 173-3075 snap ring (OBSOLETE) $26.62 1 usually ships 1-5 days
014 173-5119 Bearing seat (OBSOLETE) Call for price 1 usually ships 1-5 days
015 173-3073 lower gearbox bearing (OBSOLETE) $29.36 1 usually ships 1-5 days
016 189-0323 Square keyway $32.47 1 ships same day
017 173-3072 brush motor gear (OBSOLETE) $195.95 1 usually ships 7-19 days
018 173-3071 upper gear box bearing (OBSOLETE) $26.49 1 usually ships 1-5 days
019 173-3070 brush motor gear housing (OBSOLETE) $227.03 1 usually ships 1-5 days
020 173-3069 lower brush motor bearing (OBSOLETE) $44.80 1 usually ships 1-5 days
021 173-1575 Carbon brush set $160.00 1 usually ships 1-5 days
022 173-3068 upper brush motor bearing (OBSOLETE) $31.19 1 usually ships 1-5 days
023 173-5120 Brush motor assembly (OBSOLETE) $908.64 1 usually ships 1-5 days
024 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
025 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
026 189-0326 Bumper wheel $26.40 5 usually ships 11-24 days
027 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
028 173-5121 Cable pulley $0.90 1 usually ships 1-5 days
029 173-5091 Scrub deck cable (OBSOLETE) $52.87 1 usually ships 7-19 days
030 173-2122 Vacuum motor bracket (OBSOLETE) $44.48 1 usually ships 1-5 days
031 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
032 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.90 1 usually ships 1-5 days
033 173-5123 Tube $14.50 1 usually ships 1-5 days
034 173-1130 Cotter ring $2.20 5 usually ships 7-19 days
035 173-1474 Clevis pin $0.90 5 usually ships 1-5 days
036 173-5124 Counter balance bracket (OBSOLETE) $19.63 2 usually ships 1-5 days
037 173-5125 Flanged bushing $5.60 2 usually ships 7-19 days
038 173-1139 5/8 nylon clamp $1.38 1 usually ships 1-5 days
039 173-5126 Cover motor (OBSOLETE) $76.05 1 usually ships 1-5 days
040 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
041 173-2472 Nut 10-32 with star washer $0.90 1 usually ships 1-5 days
042 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
043 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 2 ships same day
044 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 2 ships same day
045 173-2566 Screw #10 x 1/2 pan head $0.94 4 ships same day
046 173-5127 Brush motor screen (OBSOLETE) $27.11 2 usually ships 1-5 days
047 999-0123 Washer 1/4 SAE flat zinc plated $0.99 14 ships same day
048 999-1158 Washer #6 flat stainless steel $0.99 4 ships same day
049 173-5129 Brush motor wire assembly (OBSOLETE) $24.05 1 usually ships 1-5 days
050 173-5130 Counter balance weight (OBSOLETE) $113.32 1 usually ships 1-5 days
051 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
052 173-5131 18 inch green wire (OBSOLETE) $6.38 1 usually ships 1-5 days
053 173-5132 Rode linkage assembly $98.00 2 usually ships 1-5 days
054 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.90 1 usually ships 7-19 days
055 173-2880 Roll pin $2.42 1 usually ships 7-19 days
056 173-5133 Scrub deck arm assembly $187.00 1 usually ships 1-5 days
057 173-5134 Flanged bushing $10.80 2 usually ships 1-5 days
058 173-5135 Scrub deck rod assembly (OBSOLETE) $97.04 1 usually ships 1-5 days
059 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 7 ships same day
060 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
061 173-2576 Nut 10-24 tinnerman (OBSOLETE) $4.86 4 usually ships 7-19 days
062 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 1 ships same day
