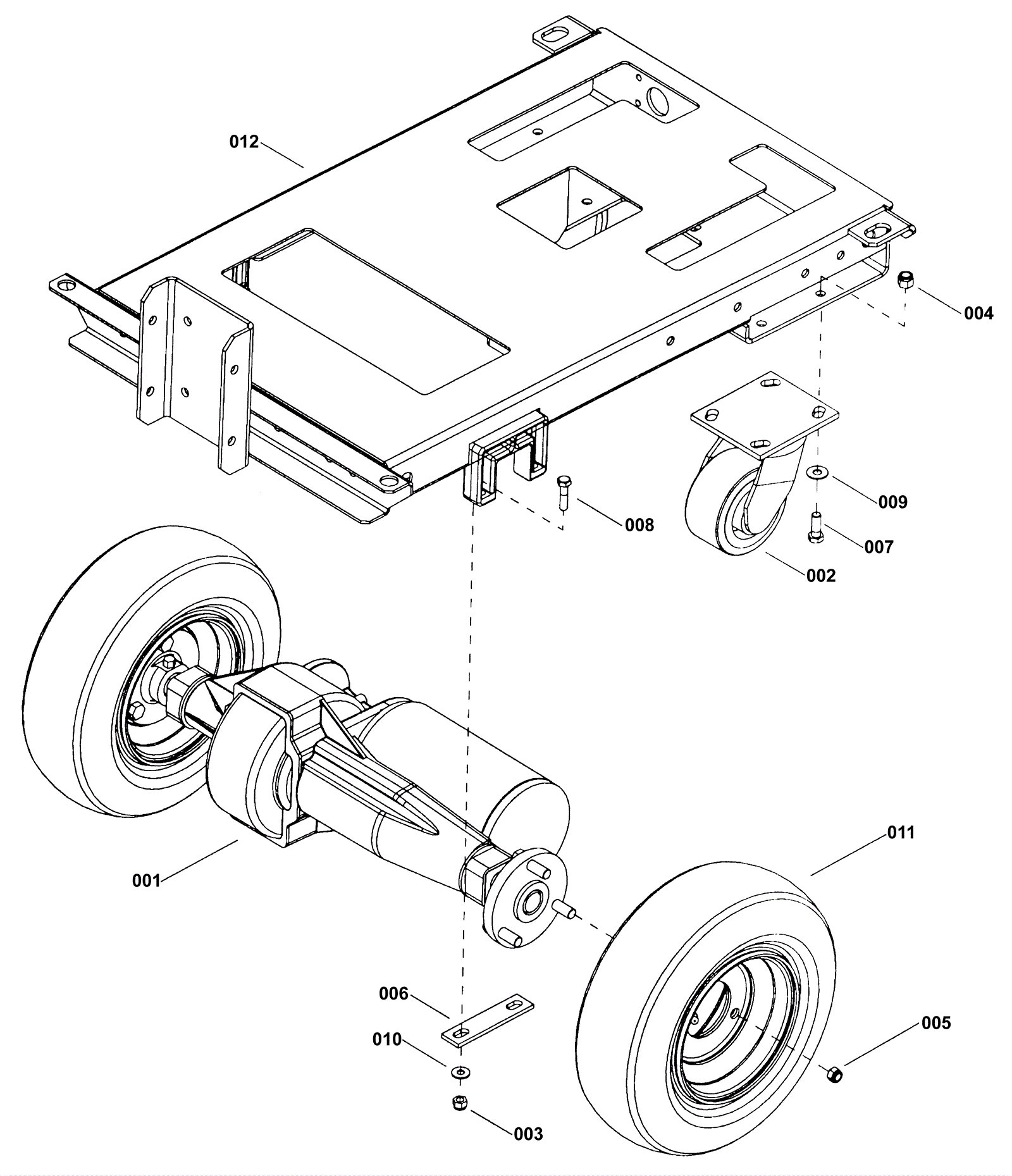

Saber Deluxe 34 Wheel and Frame Group

#PartDescriptionPriceReqNotesAvailability
001 173-1779 Drive motor axle $3,212.00 1 usually ships 1-5 days
002a 991-2006 Caster wheel assembly (red) $65.16 2 ships same day
002b 991-2008 4 inch caster wheel with bearings (red) $32.84 2 Can install if swivel is ok ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
004 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 8 usually ships 14-22 days
005 173-1694 Drive axle plate $58.85 2 usually ships 1-5 days
006 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
007 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
008 173-3990 Nut 7/16-20 wheel $5.50 6 usually ships 1-5 days
009 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
010 173-2483 Washer 1/4ID x 3/4OD plated $0.99 4 usually ships 1-5 days
011a 173-1780 Pneumatic knobby wheel (gray) $236.50 2 Includes tube usually ships 1-5 days
011b 173-1781 Pneumatic knobby wheel (black) $165.00 usually ships 1-5 days
011c 173-3290 12 inch solid wheel assembly (OBSOLETE) $920.65 usually ships 1-5 days
011e 173-3294 12 inch knobby foam filled wheel assembly (black) (OBSOLETE) $309.10 usually ships 14-22 days
012 173-2658 Frame weldment (OBSOLETE) $688.31 1 usually ships 1-5 days
N/S 173-1782 12 inch tire tube $44.33 usually ships 1-5 days
