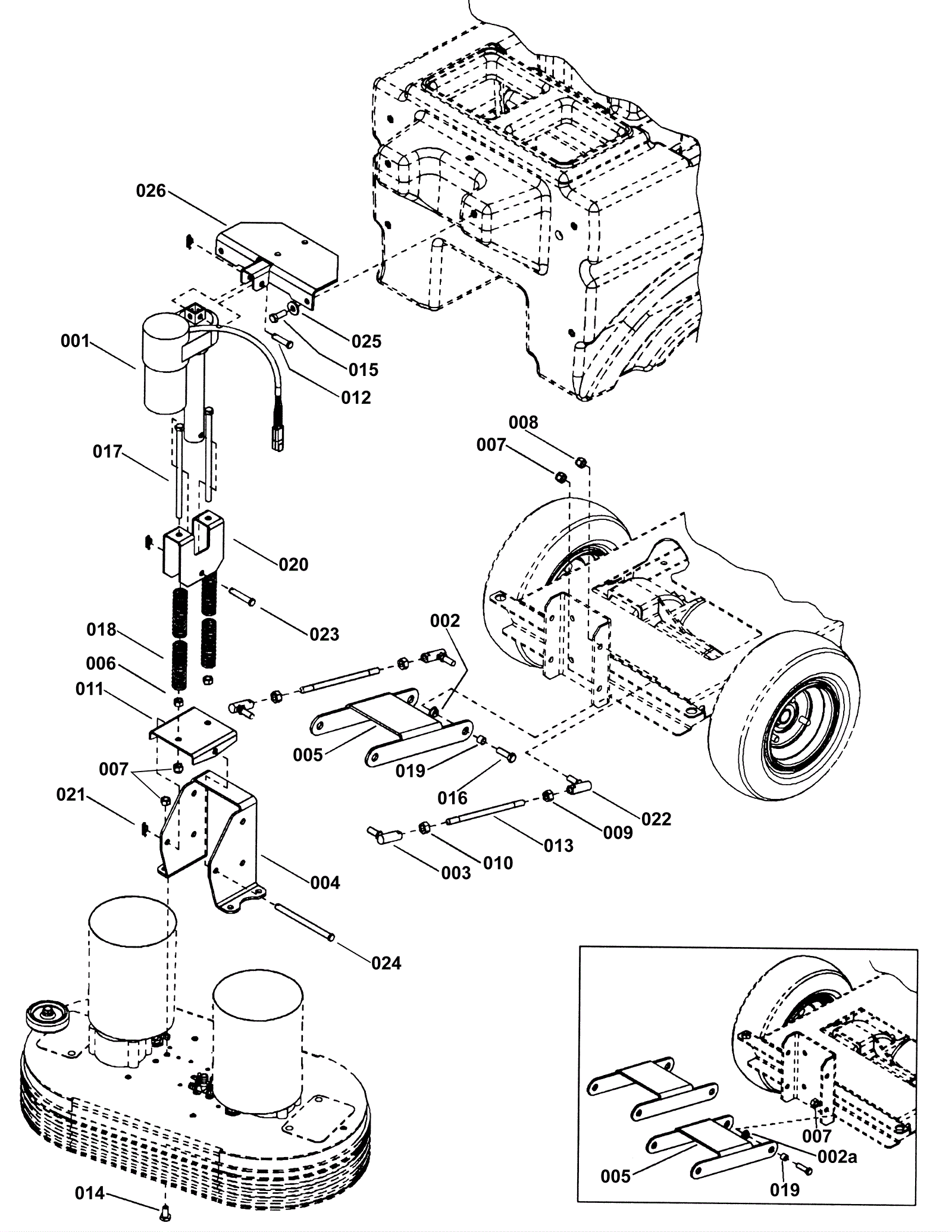

Saber Deluxe 34 Disk Scrubhead Lift Group

#PartDescriptionPriceReqNotesAvailability
001 273-0091 36V actuator $766.70 1 ships same day
002a 173-1582 Bearing $6.93 4 (from S/N 1000062420) usually ships 7-19 days
002b 173-1583 bearing $7.76 8 usually ships 1-5 days
003 173-1584 Left ball joint $41.47 2 (from S/N 1000039274) usually ships 7-19 days
004 173-1585 scrub head mount bracket $130.90 1 usually ships 1-5 days
005 173-1586 scrub deck linkage $96.25 1 (from S/N 1000039274) usually ships 1-5 days
006 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
007 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 10 usually ships 7-19 days
008 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 4 (from S/N 1000039274) ships same day
009 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 (from S/N 1000039274) ships same day
010 173-3927 Nut 3/8-24 $3.87 2 (from S/N 1000039274) usually ships 1-5 days
011 173-1587 spring support plate $45.10 1 usually ships 1-5 days
012 173-1588 Clevis pin $2.31 1 usually ships 1-5 days
013 173-1589 Scrub lift rod $68.20 2 (from S/N 1000039274) usually ships 1-5 days
014 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
015 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
016 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
017 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish $5.92 2 usually ships 1-5 days
018 173-1776 Compound spring $27.01 4 usually ships 1-5 days
019 173-1591 Spacer $45.21 4 usually ships 1-5 days
020 173-1592 spring retainer plate $123.20 1 usually ships 1-5 days
021 173-1593 Cotter ring (OBSOLETE) $0.99 3 usually ships 7-19 days
022 173-1594 Right ball joint assembly $35.20 2 (from S/N 1000039274) usually ships 7-19 days
023 173-1595 Clevis pin (OBSOLETE) $3.96 1 usually ships 5-16 days
024 173-1596 Clevis pin $19.58 1 usually ships 7-19 days
026 173-1597 weldment actuator bracket (OBSOLETE) $77.09 1 usually ships 1-5 days
