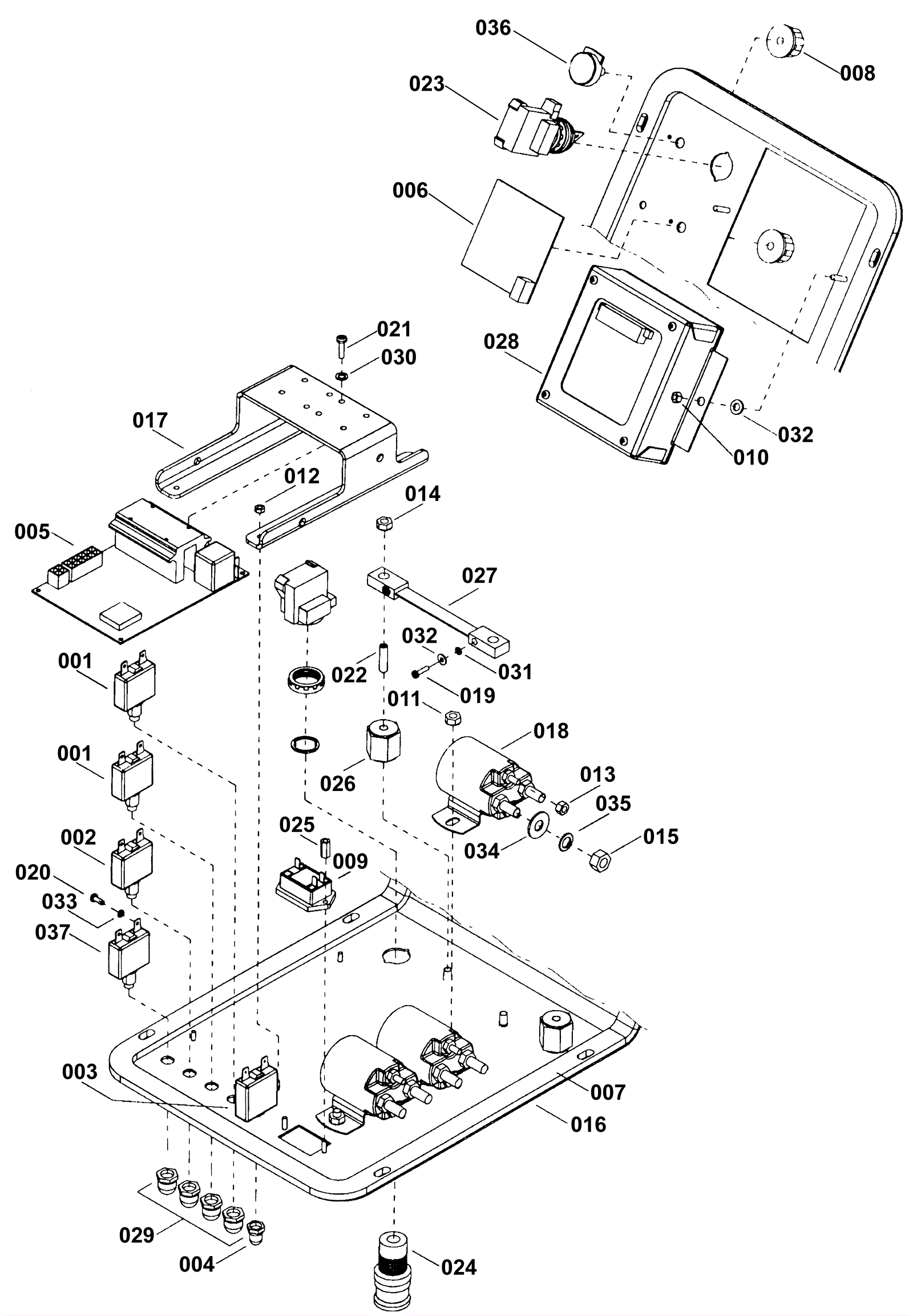

Saber Deluxe 34 Electrical Panel Group

#PartDescriptionPriceReqNotesAvailability
001 991-1629 35amp circuit breaker $11.54 2 ships same day
002 991-1632 25amp circuit breaker $7.91 1 ships same day
003 991-1624 3amp circuit breaker $15.51 1 ships same day
004 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
005 173-1783 controller $1,570.64 1 usually ships 1-5 days
006 173-1507 Circuit board $222.20 1 ships same day
007 173-1508 electrical panel gasket $12.76 1 usually ships 1-5 days
008 189-0315 Knob with set screw $69.54 2 usually ships 11-24 days
009 173-1160 LED hour meter $213.40 1 usually ships 7-19 days
010 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
012 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 4 usually ships 7-19 days
013 173-2472 Nut 10-32 with star washer $0.99 6 usually ships 1-5 days
014 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
016 173-2597 Electric panel plate (OBSOLETE) $172.70 1 usually ships 1-5 days
017 173-2598 Heat sink plate (OBSOLETE) $60.40 1 usually ships 1-5 days
018 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 3 ships same day
019 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
021 173-3978 Screw 4 x .7 x 10 pan head machine $0.99 4 usually ships 1-5 days
022 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
023a 189-0320 Key switch $51.92 1 usually ships 7-19 days
023b 173-3958 Key (pkg of 2) $29.81 ships same day
024 173-1531 Emergency stop switch $292.60 1 usually ships 1-5 days
025 173-1520 Nylon standoff $6.66 2 ships same day
026 173-1145 Insulated stand-off $22.55 2 usually ships 7-19 days
027a 173-1787 type A shunt $121.24 1 usually ships 1-5 days
027b 173-1788 type A shunt $115.73 1 usually ships 1-5 days
028 173-1789 Touch panel assembly $2,321.00 1 usually ships 1-5 days
029a 173-1522 3/8 inch circuit breaker boot $25.30 4 (OEM) ships same day
029b 991-5157 3/8 inch circuit breaker boot $2.11 4 (NON-OEM) ships same day
031 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
033 999-0051 Washer #6 medium split lock $0.99 8 ships same day
034 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 6 usually ships 7-19 days
035 999-0548 Washer 5/16 external star lock stainless steel $0.99 6 ships same day
036 173-1799 Potentiometer $23.54 usually ships 7-19 days
037 173-1795 breaker $23.21 1 usually ships 1-5 days
