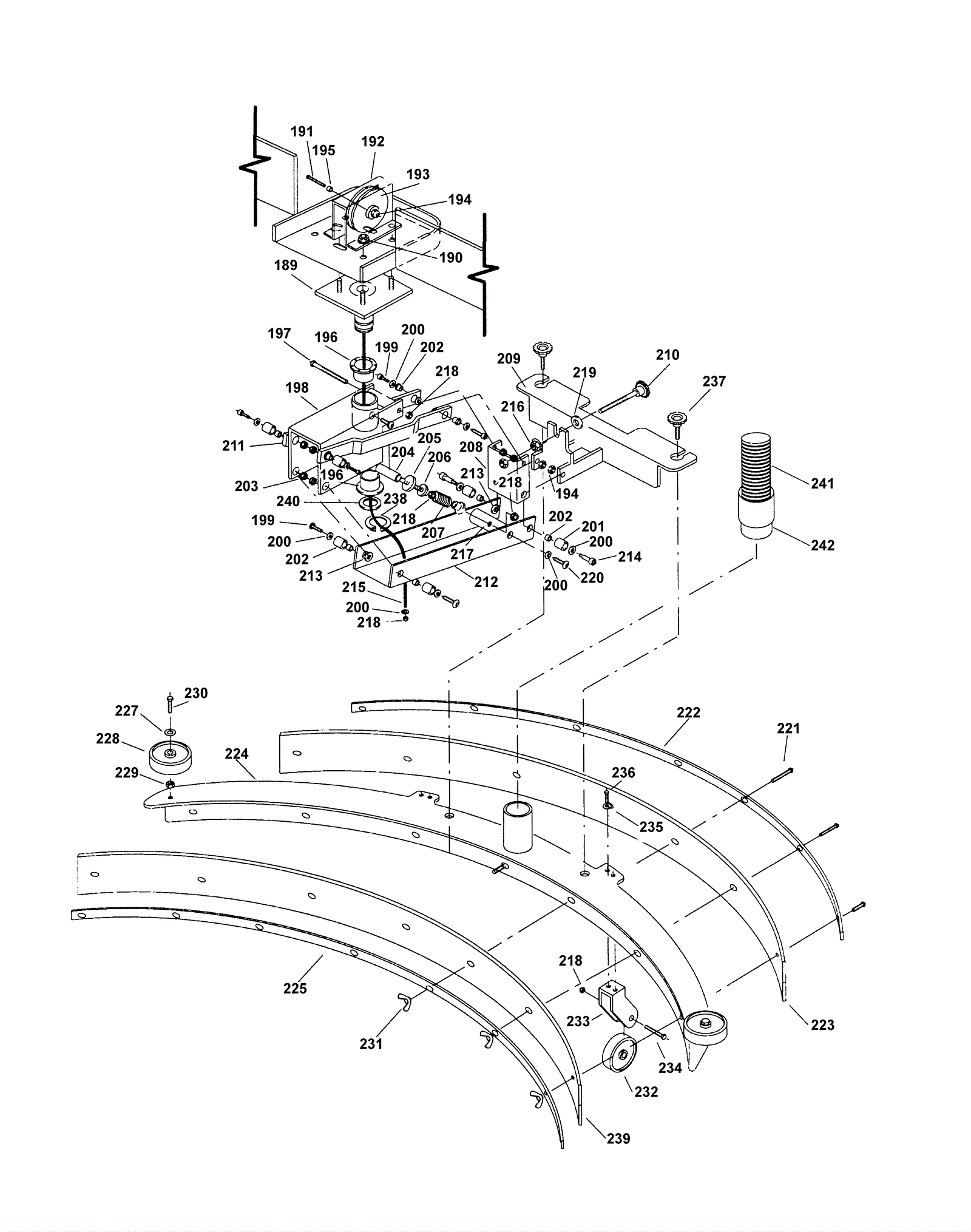

| # | Part | Description |
Req | Notes | Availability |
|---|
189 |
173-1222
|
Pivot caster plate assembly |
|
|
|
190 |
999-0460
|
Nut 10-32 hex |
|
|
|
191 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
|
|
|
192 |
173-1223
|
C17/20 lift cable pulley bracket |
|
|
|
193 |
173-1224
|
cable 1.7 inch x .45 inch pulley |
|
|
|
194 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
|
|
|
195 |
173-1141
|
Spacer |
|
|
|
196 |
173-1226
|
1. ID x 1.25 OD x 75 Long flange bearing (OBSOLETE) |
|
|
|
197 |
173-1146
|
1/4-20 x 1.25 stud |
|
|
|
198 |
173-1227
|
Squeegee pivot assembly |
|
|
|
199 |
173-1228
|
Bolt 5/16 OD x 1/2 long shoulder |
|
|
|
201 |
173-1229
|
7/16 OD x 5.16 ID x 21/64 long spacer |
|
|
|
202 |
173-1230
|
9/16 OD x 7/16 ID x 5/16 Long brushing |
|
|
|
203 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
|
|
|
205 |
173-3872
|
Squeegee camber lock nut |
|
|
|
206 |
173-1232
|
Squeegee spring cap |
|
|
|
207 |
173-1233
|
1.1 inch D x 1.35 inch Wide x 3.5 inch long Spring |
|
|
|
208 |
173-1234
|
Squeegee lift bracket (OBSOLETE) |
|
|
|
209 |
173-1235
|
Squeegee support assembly (OBSOLETE) |
|
|
|
210 |
173-1236
|
3/8-16 x 2.25 inch long knob |
|
|
|
211 |
173-1237
|
Squeegee lift linkage (OBSOLETE) |
|
|
|
212 |
173-1238
|
Squeegee linkage bracket (OBSOLETE) |
|
|
|
213 |
173-5026
|
Squeegee pivot linkage washer |
|
|
|
214 |
173-1239
|
Bolt 5/16 x 3/4 shoulder |
|
|
|
215 |
173-1165
|
Squeegee lift cable assembly (OBSOLETE) |
|
|
|
216 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
|
|
|
217 |
173-1241
|
spring adjust rod (OBSOLETE) |
|
|
|
218 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
|
219 |
173-2548
|
Washer M10 x 30mm plated |
|
|
|
220 |
999-0383
|
Screw 1/4-20 x 1/2 button head socket cap plain finish |
|
|
|
221a |
999-0383
|
Screw 1/4-20 x 1/2 button head socket cap plain finish |
|
|
|
221b |
173-2558
|
Bolt 1/4-20 x 2 1/2 hex head stainless steel |
|
|
|
221c |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
|
|
|
222a |
173-1242
|
Squeegee strap back 28 inch (OBSOLETE) |
|
|
|
222b |
173-1243
|
Squeegee strap back 34 inch (OBSOLETE) |
|
|
|
223a |
173-1015
|
Squeegee blade rear 28 inch |
|
|
|
223b |
173-1244
|
Squeegee blade rear 34 inch die cut |
|
|
|
224a |
173-1245
|
Squeegee assembly 28 inch (OBSOLETE) |
|
|
|
224b |
173-1246
|
Squeegee assembly 34 inch (OBSOLETE) |
|
|
|
225a |
173-1347
|
small wheel |
|
|
|
225b |
173-1248
|
Squeegee brace plate 34 inch |
|
|
|
227 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
|
|
|
228 |
189-0326
|
Bumper wheel |
|
|
|
229 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
|
|
|
230 |
999-0542
|
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
|
|
|
231 |
173-5027
|
Nut 1/4-20 wing locking |
|
|
|
232 |
173-1250
|
3 inch diameter cushion rubber wheel |
|
|
|
233 |
173-1251
|
caster bracket |
|
|
|
234 |
999-0108
|
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
|
|
|
235 |
999-0017
|
Washer 1/4 external star lock |
|
|
|
236 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
|
|
|
237 |
173-5069
|
2.25 OD 5/16-18 x 1.5 Stud Knob (OBSOLETE) |
|
|
|
238 |
173-1062
|
1.0 extension snap hd ring |
|
|
|
239a |
173-1016
|
Squeegee blade front 28 inch |
|
|
|
239b |
173-1254
|
Squeegee blade 34 inch front die cut |
|
|
|
240 |
173-5028
|
Washer 1.015 ID x 1.5 D x .055 (OBSOLETE) |
|
|
|
241 |
173-1255
|
Vacuum motor hose 1 1/2 x 45 inch (black) |
|
|
|
242a |
993-0014
|
CUFF, HOSE 1.5 inch BLK A 2161 |
|
|
|
242b |
999-0383
|
Screw 1/4-20 x 1/2 button head socket cap plain finish |
|
|
|
242c |
173-2558
|
Bolt 1/4-20 x 2 1/2 hex head stainless steel |
|
|
|
242d |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
|
|
|
242e |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
|
|
|
242f |
173-5027
|
Nut 1/4-20 wing locking |
|
|
|
