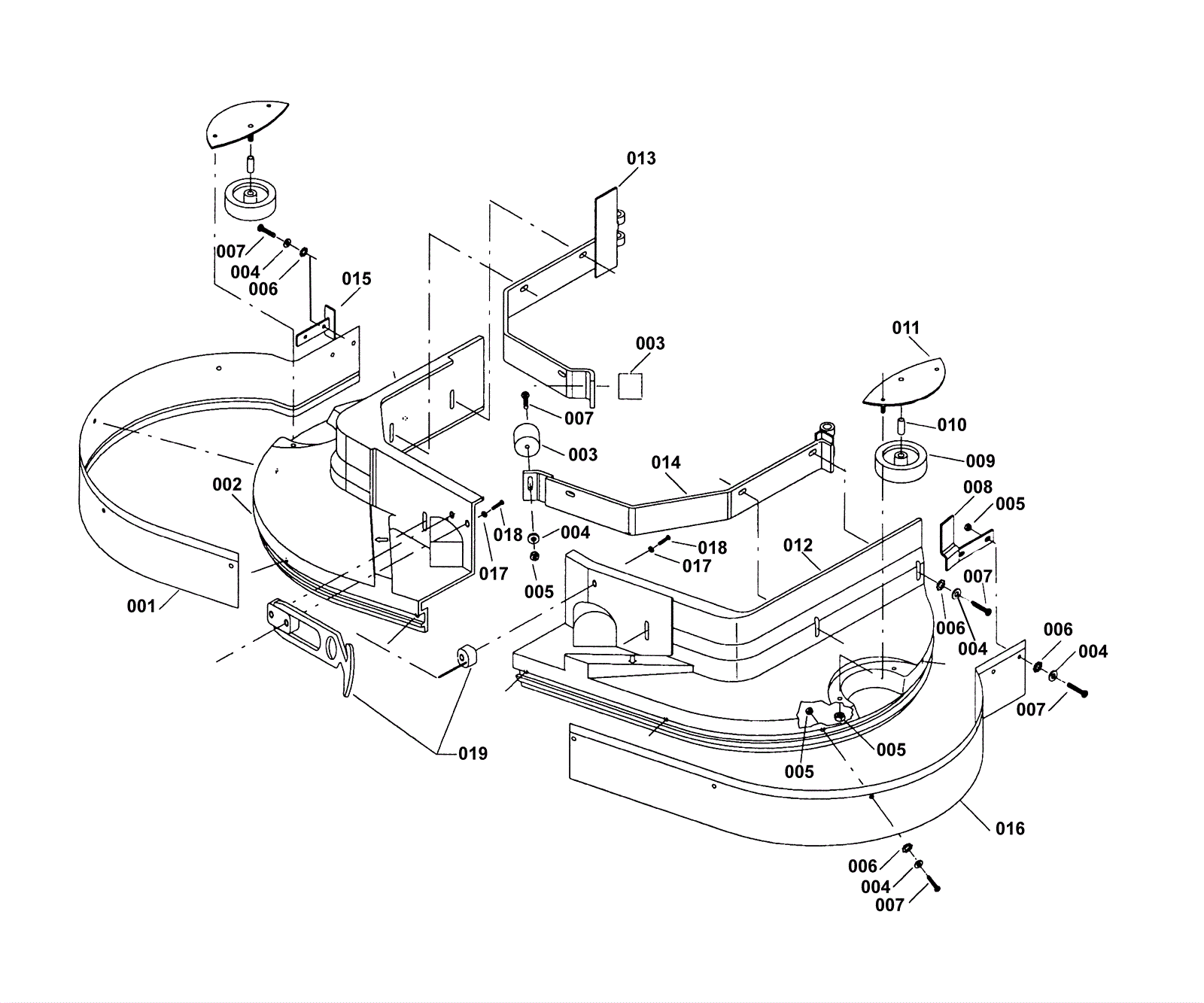

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-1200
|
shroud right skirt (OBSOLETE) |
|
|
|
002 |
173-1201
|
34 inch right shroud (OBSOLETE) |
|
|
|
003 |
173-1262
|
male & female side cover latch (OBSOLETE) |
|
|
|
004 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
|
|
|
005 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
|
|
|
006 |
999-0017
|
Washer 1/4 external star lock |
|
|
|
007 |
999-0229
|
Screw 1/4-20 x 1 button head socket plain finish |
|
|
|
008 |
173-1203
|
left skirt retaining plate (OBSOLETE) |
|
|
|
009 |
189-0326
|
Bumper wheel |
|
|
|
010 |
173-1205
|
.375 OD x .319 ID x 1 inch L plated spacer (OBSOLETE) |
|
|
|
011 |
173-1206
|
bumper roller plate assembly (OBSOLETE) |
|
|
|
012 |
173-1207
|
34 inch left shroud (OBSOLETE) |
|
|
|
013 |
173-1208
|
Shroud right hinge assembly (OBSOLETE) |
|
|
|
014 |
173-1209
|
shourd left hinge assembly (OBSOLETE) |
|
|
|
015 |
173-1210
|
Skirt extension right plate (OBSOLETE) |
|
|
|
017 |
999-0998
|
Washer #10 flat stainless steel |
|
|
|
018 |
999-0269
|
Screw 10-24 x 5/8 pan head phillips zinc plated |
|
|
|
019 |
173-1212
|
flexible draw latch set |
|
|
|
