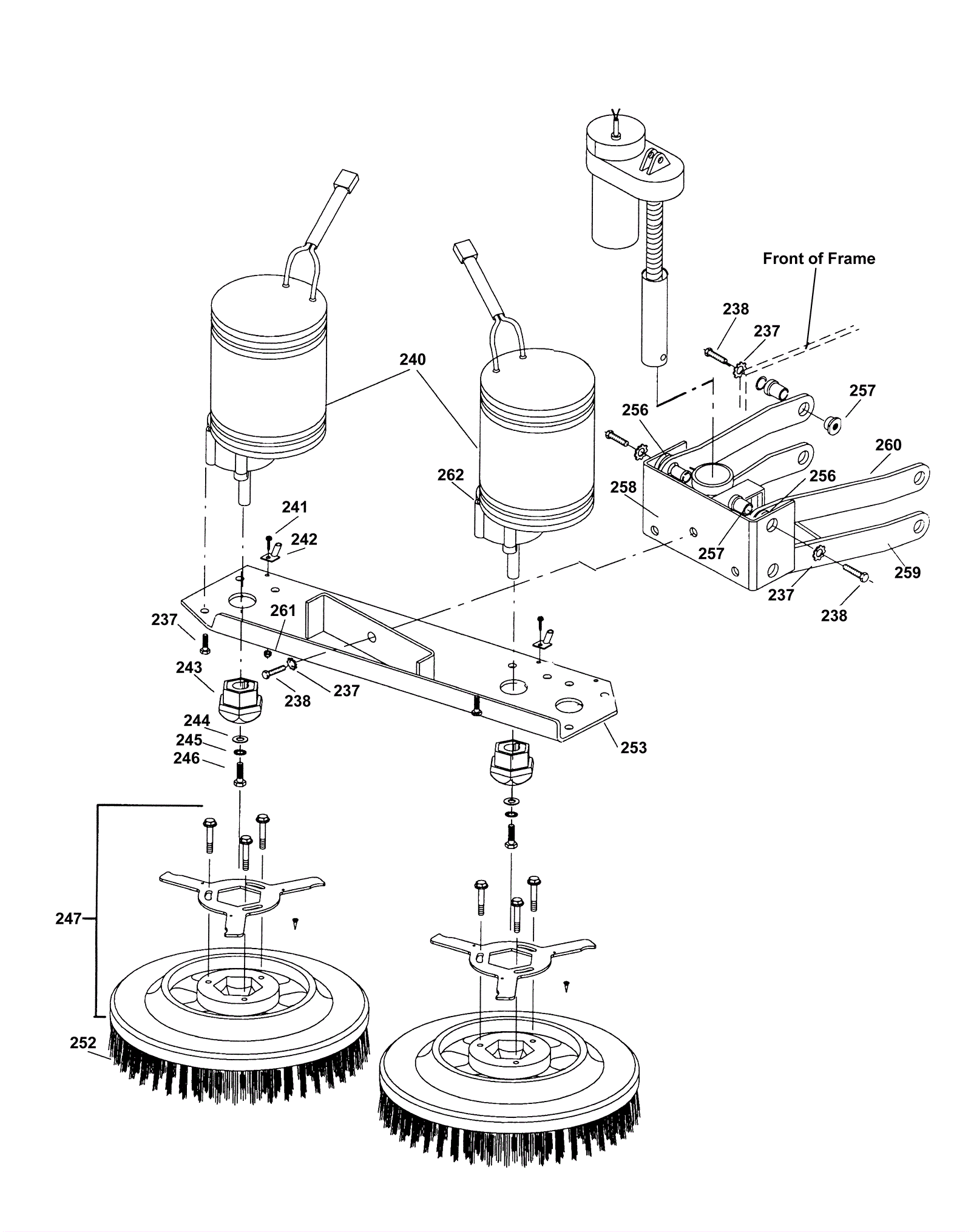

| # | Part | Description |
Req | Notes | Availability |
|---|
237 |
999-1144
|
Washer 3/8 external star lock stainless steel |
|
|
|
238 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
|
|
|
240 |
173-1180
|
Brush motor assembly ST28/34 |
|
|
|
242 |
173-1181
|
Solution hose mounting bracket assembly (OBSOLETE) |
|
|
|
243 |
189-0021
|
Hex drive hub (OBSOLETE) |
|
|
|
245 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
|
|
|
246 |
999-1052
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
|
|
|
247 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
|
253 |
173-1191
|
scrub deck plate assembly (OBSOLETE) |
|
|
|
256 |
999-9154
|
Washer 3/4 flat nylon |
|
|
|
257 |
173-1192
|
threaded .74 OD x 3/8-16 Br Brushing |
|
|
|
258a |
173-1193
|
scrub deck 28 inch bracket assembly (OBSOLETE) |
|
|
|
258b |
173-1194
|
scrub deck 34 inch bracket assembly (OBSOLETE) |
|
|
|
259a |
N/A
|
Not available |
|
(not available) |
|
259b |
173-1196
|
lower scrub deck 34 inch arm assembly (OBSOLETE) |
|
|
|
260 |
173-1197
|
scrub deck arm (OBSOLETE) |
|
|
|
261 |
173-2472
|
Nut 10-32 with star washer |
|
|
|
