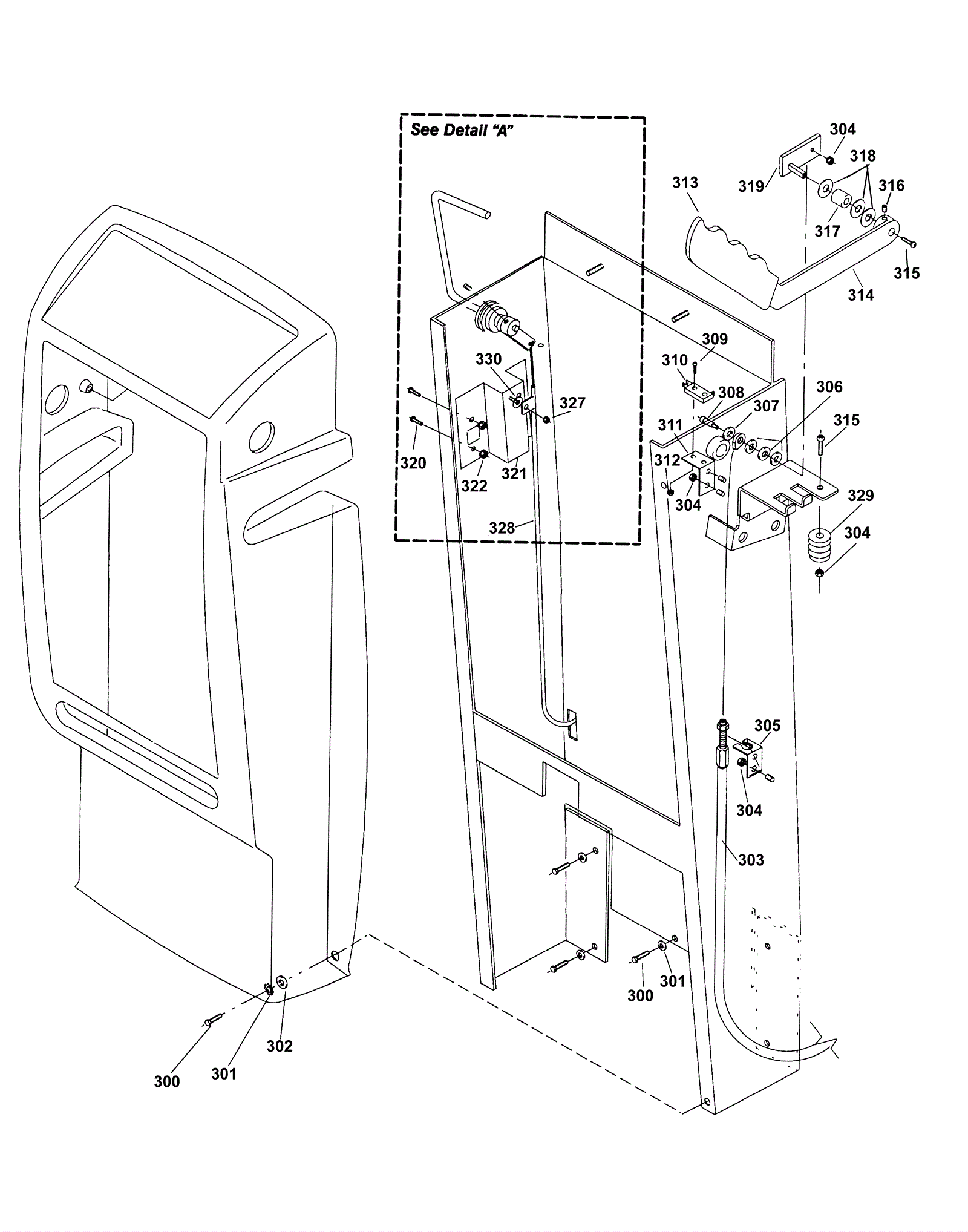

| # | Part | Description |
Req | Notes | Availability |
|---|
300 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
|
|
|
301 |
999-1144
|
Washer 3/8 external star lock stainless steel |
|
|
|
302 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
|
|
|
303 |
173-1165
|
Squeegee lift cable assembly (OBSOLETE) |
|
|
|
304 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
|
|
|
305 |
173-1166
|
Solution cable mounting bracket (OBSOLETE) |
|
|
|
306 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
|
|
|
308 |
173-1228
|
Bolt 5/16 OD x 1/2 long shoulder |
|
|
|
309 |
999-1059
|
Screw 4-40 x 3/4 pan head phillips zinc plated |
|
|
|
310 |
173-1167
|
Vacuum shutoff switch |
|
|
|
311 |
173-1168
|
Microswitch mounting bracket (OBSOLETE) |
|
|
|
312 |
173-2579
|
Nut 4-40 hex star lock |
|
|
|
313 |
173-1169
|
Flat bar grip 3/16 x 1 inch |
|
|
|
314 |
173-1170
|
Squeegee lift lever (OBSOLETE) |
|
|
|
315 |
999-0383
|
Screw 1/4-20 x 1/2 button head socket cap plain finish |
|
|
|
316 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
|
|
|
317 |
173-1171
|
.75 inchD x .376 inchsq brushing (OBSOLETE) |
|
|
|
318 |
189-1241
|
Washer 1/2 x 1 nylon |
|
|
|
319 |
173-1172
|
Squeegee cable pivot assembly (OBSOLETE) |
|
|
|
320 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
|
|
|
321 |
173-1173
|
Solution cable bracket S/N 4001224 & up (OBSOLETE) |
|
|
|
327 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
|
|
|
328 |
173-1174
|
Solution cable assembly S/n 4001224 & up (OBSOLETE) |
|
|
|
329 |
173-1175
|
Hosebarb |
|
|
|
330 |
999-0998
|
Washer #10 flat stainless steel |
|
|
|
