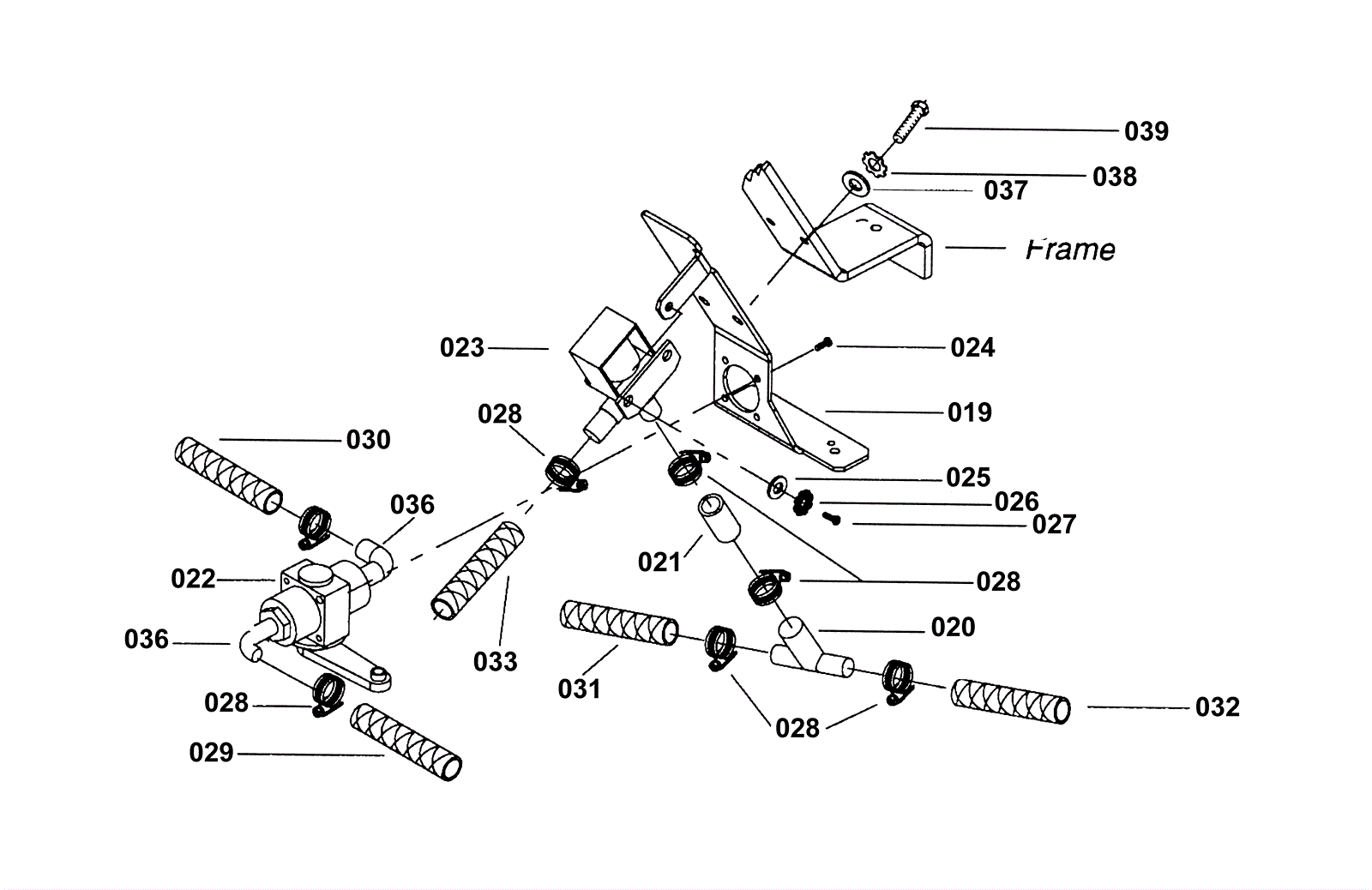

| # | Part | Description |
Req | Notes | Availability |
|---|
016 |
173-1088
|
Screen filter |
|
|
|
019 |
173-1094
|
Valve Kit TR/ST bracket S/N 4001398 & up |
|
|
|
020 |
173-1095
|
Tee fitting |
|
|
|
021 |
173-1682
|
1/2 inch nylobraid hose |
|
|
|
022 |
173-1097
|
ball metering valve S/N 4001398 & up (OBSOLETE) |
|
|
|
023 |
173-1098
|
36V solenoid valve |
|
|
|
024 |
999-1861
|
Screw 10-24 x 7/8 pan head phillips stainless steel |
|
|
|
025 |
999-0998
|
Washer #10 flat stainless steel |
|
|
|
026 |
999-0311
|
Washer #10 external star lock zinc plated |
|
|
|
027 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
|
|
|
028 |
173-1821
|
Hose clamp |
|
|
|
029 |
173-1099
|
3/8 Nylobraid x 22 hose S/N 4001398 & up |
|
|
|
030 |
173-1100
|
Hose 3/8 x 17 inch braided nylon |
|
|
|
031 |
173-3170
|
15 inch hose |
|
|
|
032 |
N/A
|
Not available |
|
|
|
033 |
173-5020
|
Hose 1/2 Nylobraid x 11 |
|
|
|
036 |
173-1101
|
1/2 NPT x 3/8 90 diameter hosebarb S/N 4001398 & up |
|
|
|
037 |
999-0017
|
Washer 1/4 external star lock |
|
|
|
038 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
|
|
|
039 |
999-0200
|
Bolt 1/2-13 x 1 1/4 hex head |
|
|
|
