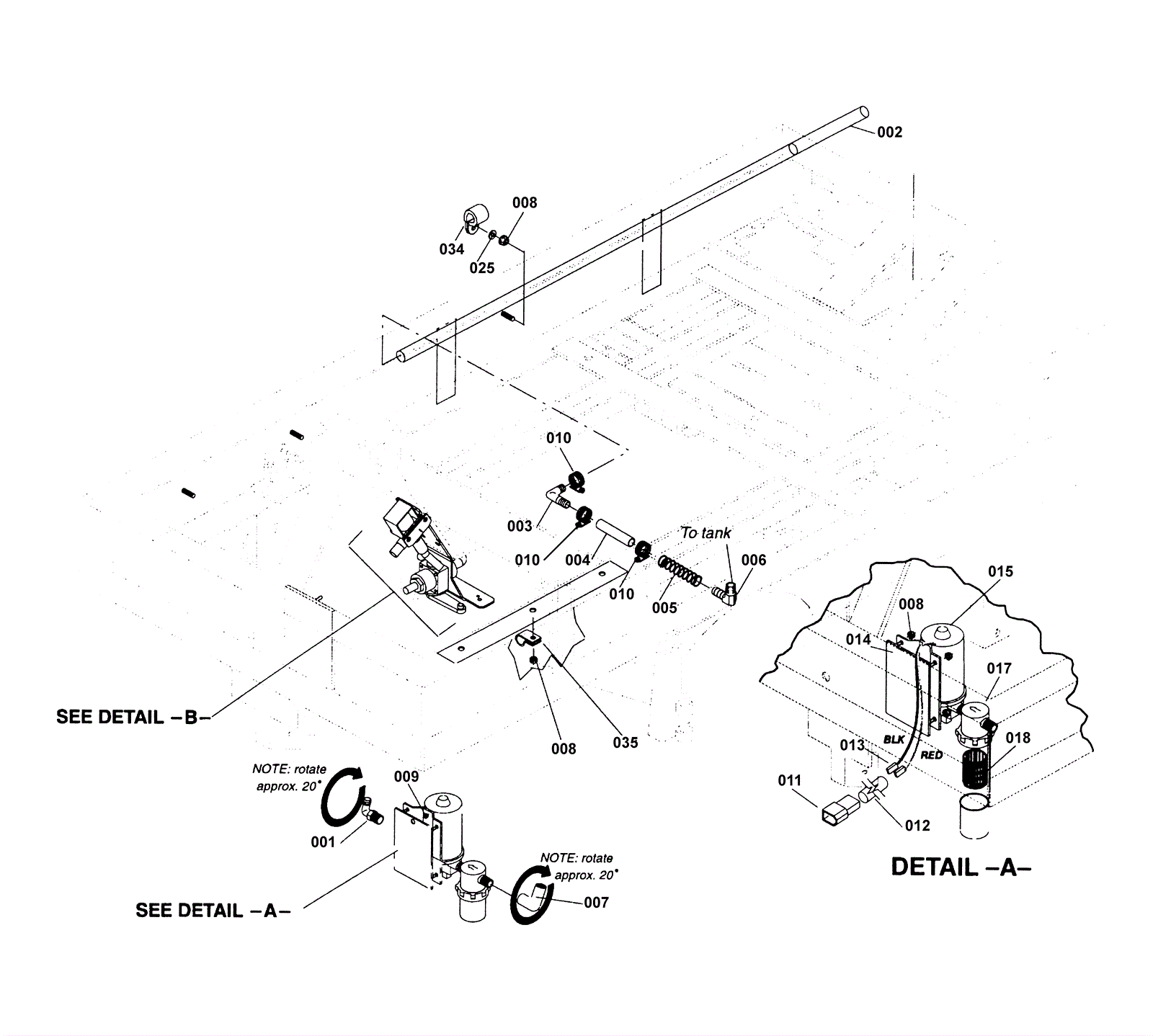

Hose Assembly Class

#PartDescription ReqNotesAvailability
001 173-1072 Hosebarb 3/8 x 1/2 inch
002 173-1073 1 inch ID x 1/8 wall x 59 inch clear S/N 4001398 (OBSOLETE)
003 173-1074 1.0 inch x 1.0 inch 90 S/N 4001398 Hosebarb
004 173-1075 1 inch ID x 1/8 wall x 20 inch clear S/N 4001398 Hose
005 173-0114 Combination nozzle
006 173-1077 1/2 MPT x 1.0 90 Hosebarb S/N 4001398
007 173-1078 3/8 inch elbow
008 999-0086 Nut 10-32 nylon insert lock zinc plated
009 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS
010 173-1079 Hose clamp (OBSOLETE)
011 173-1080 2 pin F-Molex connector S/n 4001398
012 173-1081 1/2 inch ID x 10 inchL Heat shrink S/N 4001398
013 173-1082 male pin Molex terminal S/N 4001398
014 173-1083 pump mounting plate S/N 4001398 (OBSOLETE)
015a 173-1084 TR 28/34 Pump assembly
015b 173-1085 Valve/diaphragm kit S/N 4001398
015c 173-1086 pumphead kit S/N 4001398
015d 173-1087 pump motor
016 173-1088 Screen filter
017 173-1089 Solution filter assembly
018 189-4023 Solution filter screen
025 999-0998 Washer #10 flat stainless steel
034 173-1091 1.5 inchP inch clamp S/N 4001398 (OBSOLETE)
035 173-1092 1 inch diameter nylon clamp S/N 4001398 (OBSOLETE)
