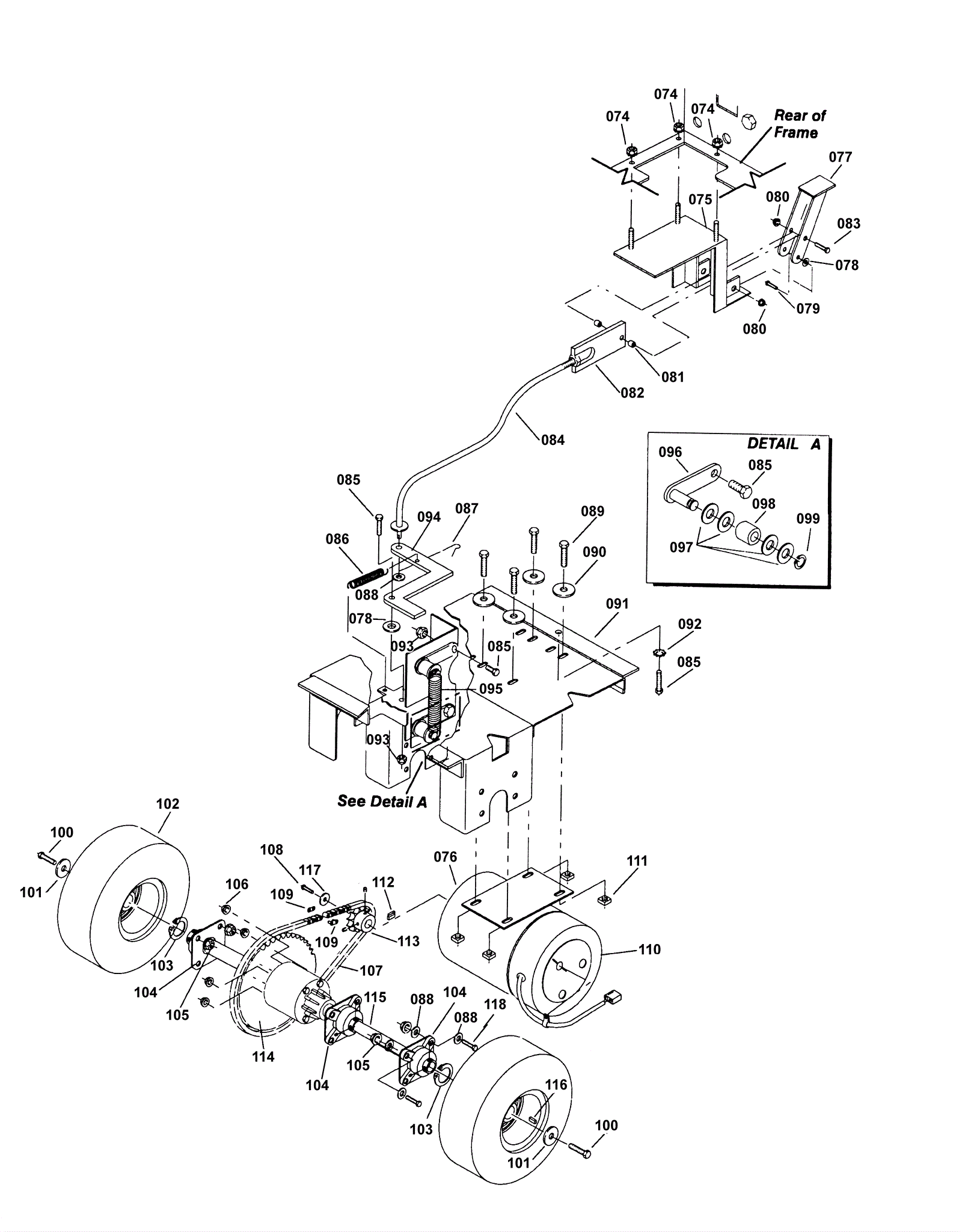

| # | Part | Description |
Req | Notes | Availability |
|---|
074 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
|
|
|
075 |
173-1046
|
Brake support 1vr. bracket assembly (OBSOLETE) |
|
|
|
076 |
N/A
|
Not available |
|
(not available) |
|
077 |
173-1048
|
Brake actuator lever (OBSOLETE) |
|
|
|
078 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
|
|
|
079 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
|
|
|
080 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
|
|
|
081 |
173-1049
|
.5 OD x .28 ID x .38 Lnyl Spacer |
|
|
|
082 |
173-1050
|
Brake actuator linkage assembly (OBSOLETE) |
|
|
|
083 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
|
|
|
084 |
173-1051
|
connecting brake rod (OBSOLETE) |
|
|
|
085 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
|
|
|
086 |
173-1052
|
.36 OD x 2.5 inchL x .041 ext. spring (OBSOLETE) |
|
|
|
087 |
173-1053
|
Cotter hair pin |
|
|
|
088 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
|
|
|
089 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
|
|
|
090 |
173-2473
|
Washer M8 x 25 plated |
|
|
|
091 |
173-1054
|
Motor plate assembly (OBSOLETE) |
|
|
|
092 |
999-1144
|
Washer 3/8 external star lock stainless steel |
|
|
|
093 |
173-3869
|
Nut 3/8-16 hex nylock (OBSOLETE) |
|
|
|
094 |
173-1055
|
Bellcrank brake plate (OBSOLETE) |
|
|
|
095 |
173-1056
|
2.75 L, 6.4 Extended 2.2 Extension spring |
|
|
|
096 |
173-1057
|
Tension arm plate (OBSOLETE) |
|
|
|
097 |
173-5015
|
Washer 9/16 x 1 1/2O teflon |
|
|
|
098 |
173-1058
|
Tension chain drive roller (OBSOLETE) |
|
|
|
099 |
173-1059
|
Snap ring (OBSOLETE) |
|
|
|
100 |
999-1143
|
Bolt 5/16-24 x 3/4 hex head stainless steel |
|
|
|
101 |
999-0024
|
Washer 5/16 flat stainless steel |
|
|
|
102a |
173-0011
|
Wheel |
|
|
|
102b |
173-1061
|
10 inch Air filled wheel |
|
|
|
103 |
173-1062
|
1.0 extension snap hd ring |
|
|
|
104 |
173-1063
|
Differential bearing |
|
|
|
105 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
|
|
|
106 |
173-2465
|
Nut 5/16 external snap (OBSOLETE) |
|
|
|
107 |
173-1064
|
28/34 61 pitches chain |
|
|
|
108 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
|
|
|
109 |
173-1065
|
Master link #40 1/2 chain |
|
|
|
110 |
173-1066
|
Drive motor ST28/34 (OBSOLETE) |
|
|
|
111 |
173-2506
|
Nut 1/4-20 captive |
|
|
|
112 |
173-1067
|
Step 3/16 x 1/4 x .88 L key (OBSOLETE) |
|
|
|
113 |
173-1068
|
Trident drive motor sprocket |
|
|
|
114 |
173-1069
|
#40 1/2 pitch 40 tooth sprocket (OBSOLETE) |
|
|
|
115 |
173-1070
|
Stride differential |
|
|
|
116 |
173-1071
|
6 x 6 x 28 mm key (OBSOLETE) |
|
|
|
117 |
999-0024
|
Washer 5/16 flat stainless steel |
|
|
|
118 |
999-0350
|
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
|
|
|
