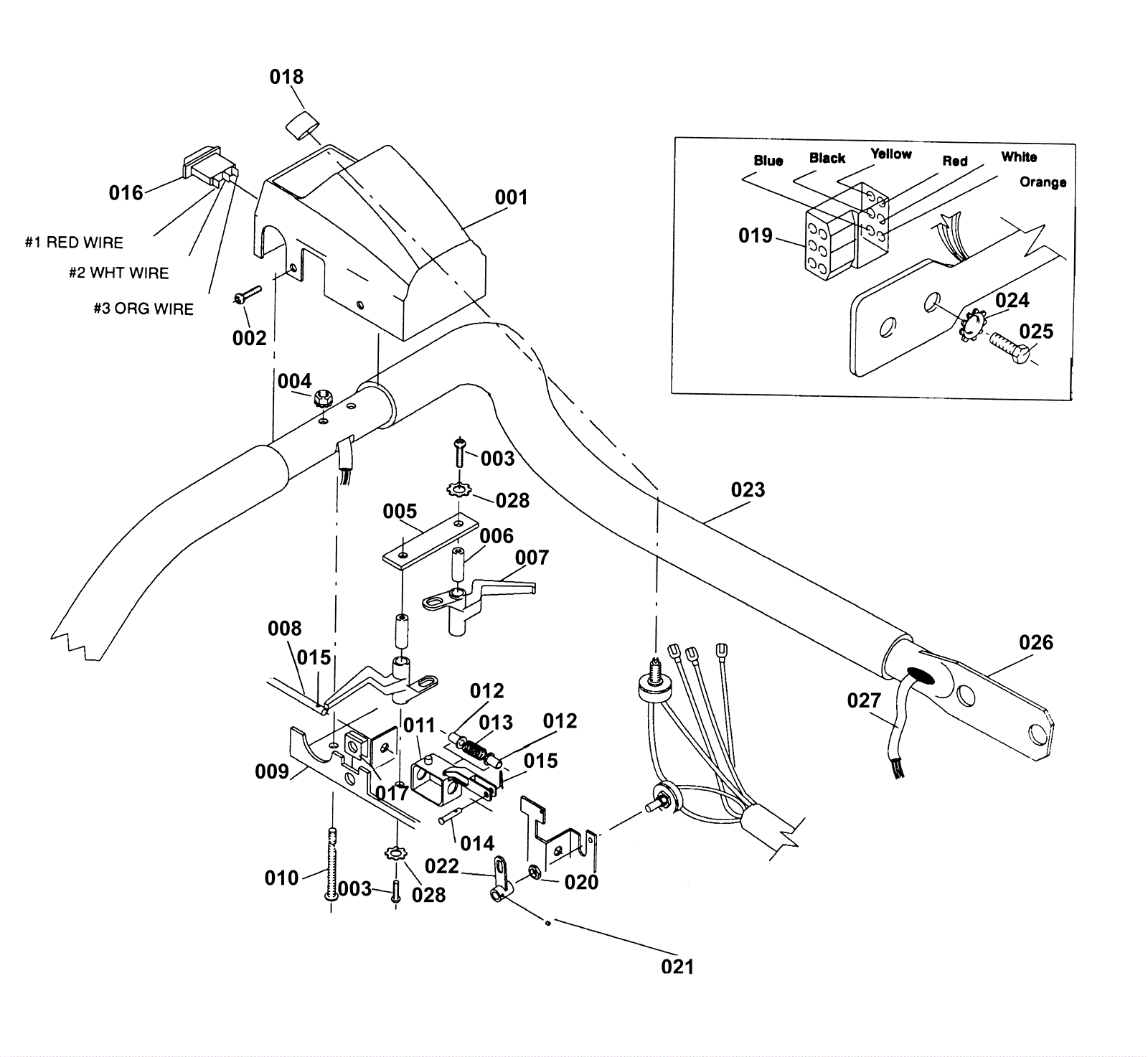

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
173-1029
|
Propel Handle Cover (OBSOLETE) |
1 |
|
|
002 |
173-2566
|
Screw #10 x 1/2 pan head |
4 |
|
|
003 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
4 |
|
|
004 |
173-2472
|
Nut 10-32 with star washer |
2 |
|
|
005 |
173-1030
|
Lever Pivot Support |
1 |
|
|
006 |
173-1031
|
Handle Lever Pivot Rod |
2 |
|
|
007 |
173-1032
|
Propel Control Handle Lever |
2 |
|
|
008 |
173-1033
|
Clevis Pin |
1 |
|
|
009 |
173-1034
|
Propel Control Plate Assembly |
1 |
|
|
010 |
999-0558
|
Bolt 1/2-13 x 1 1/2 hex head stainless steel |
2 |
|
|
011 |
173-1035
|
Lever Centering Guide |
1 |
|
|
012 |
173-1036
|
Propel control brushing |
2 |
|
|
013 |
173-1037
|
Comp..36 D x 1.12L x .04W Spring |
1 |
|
|
014 |
173-1038
|
Pin Clevis 3/16 x 1/12 |
1 |
|
|
015 |
173-1039
|
Cotter Pin 1/16 x 3/4 |
2 |
|
|
016 |
173-1040
|
36VDC SPST illuminated switch |
1 |
|
|
017 |
173-2576
|
Nut 10-24 tinnerman (OBSOLETE) |
4 |
|
|
018 |
173-1041
|
Speed control knob |
1 |
|
|
019 |
173-4052
|
Connector Molex 6 Pin receptacle |
1 |
|
|
020 |
173-3896
|
Nut 3/8-27 Pane (OBSOLETE)l |
1 |
|
|
021 |
999-0650
|
Screw 8-32 x 3/16 knurled point socket set plain finish |
1 |
|
|
022 |
173-1042
|
Potentiometer pivot (OBSOLETE) |
1 |
|
|
023 |
173-1043
|
Handle x 9.5 inch Grip |
2 |
|
|
024 |
999-1144
|
Washer 3/8 external star lock stainless steel |
4 |
|
|
025 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
026 |
173-1044
|
Propel 14-7/8 handle (OBSOLETE) |
1 |
|
|
027 |
173-1045
|
Propel wiring harness |
1 |
|
|
028 |
999-0311
|
Washer #10 external star lock zinc plated |
4 |
|
|
