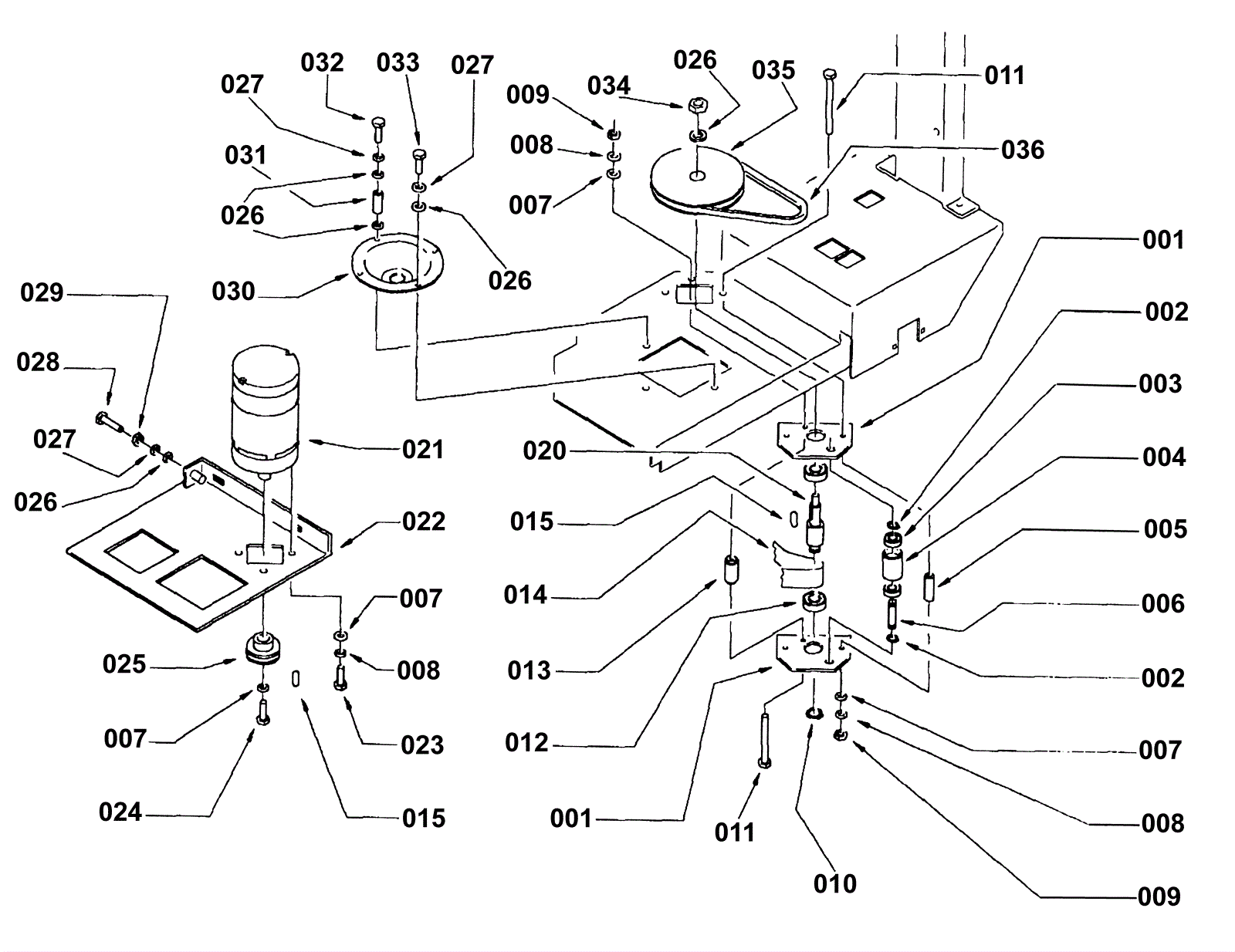

AXCESS ELECTRIC Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-1363 plaque $35.92 2 usually ships 1-5 days
002 173-1364 ring $2.90 2 usually ships 1-5 days
003 173-1365 bearing $42.46 2 usually ships 1-5 days
004 173-1366 pulley $50.49 1 usually ships 1-5 days
005 173-1367 bearing $22.66 2 usually ships 1-5 days
006 173-1368 pin/plug $24.53 1 usually ships 1-5 days
007 173-3785 Washer $4.73 8 usually ships 1-5 days
008 173-1005 Washer $5.28 7 usually ships 1-5 days
009 173-3831 Nut $3.74 3 usually ships 1-5 days
010 173-1369 ring (OBSOLETE) $4.42 1 usually ships 1-5 days
011 173-3832 Screw $9.46 3 usually ships 1-5 days
012 173-1370 bearing $43.78 2 usually ships 1-5 days
013 173-1371 bearing $35.20 1 usually ships 1-5 days
014 173-1372 Idler assembly with belt $412.50 1 usually ships 1-5 days
015 173-1373 tang/tongue $9.19 2 usually ships 1-5 days
020 173-1374 shaft $96.25 1 usually ships 1-5 days
021 173-1375 motor $2,271.50 1 usually ships 1-5 days
022 N/A Not available Call for price 1 (not available) usually ships 3-26 days
023 173-3786 Screw (OBSOLETE) $4.51 4 usually ships 1-5 days
024 173-3786 Screw (OBSOLETE) $4.51 1 usually ships 1-5 days
025 173-1377 pulley (OBSOLETE) $108.35 1 usually ships 1-5 days
026 173-3824 Washer (OBSOLETE) $2.97 8 usually ships 1-5 days
027 173-3833 Washer $5.17 5 usually ships 1-5 days
028 173-3834 Screw (OBSOLETE) $7.63 1 usually ships 1-5 days
029 173-3835 Nut $6.77 1 usually ships 1-5 days
030 N/A Not available Call for price 1 (not available) usually ships 3-26 days
031 N/A Not available Call for price 2 (not available) usually ships 3-26 days
032 173-3836 Screw (OBSOLETE) $6.25 2 usually ships 1-5 days
033 173-3837 Screw (OBSOLETE) $0.99 2 usually ships 1-5 days
034 173-3810 Nut $8.42 1 usually ships 1-5 days
035 173-1380 pulley $229.69 1 usually ships 1-5 days
036 173-1381 belt $79.20 1 usually ships 7-19 days
