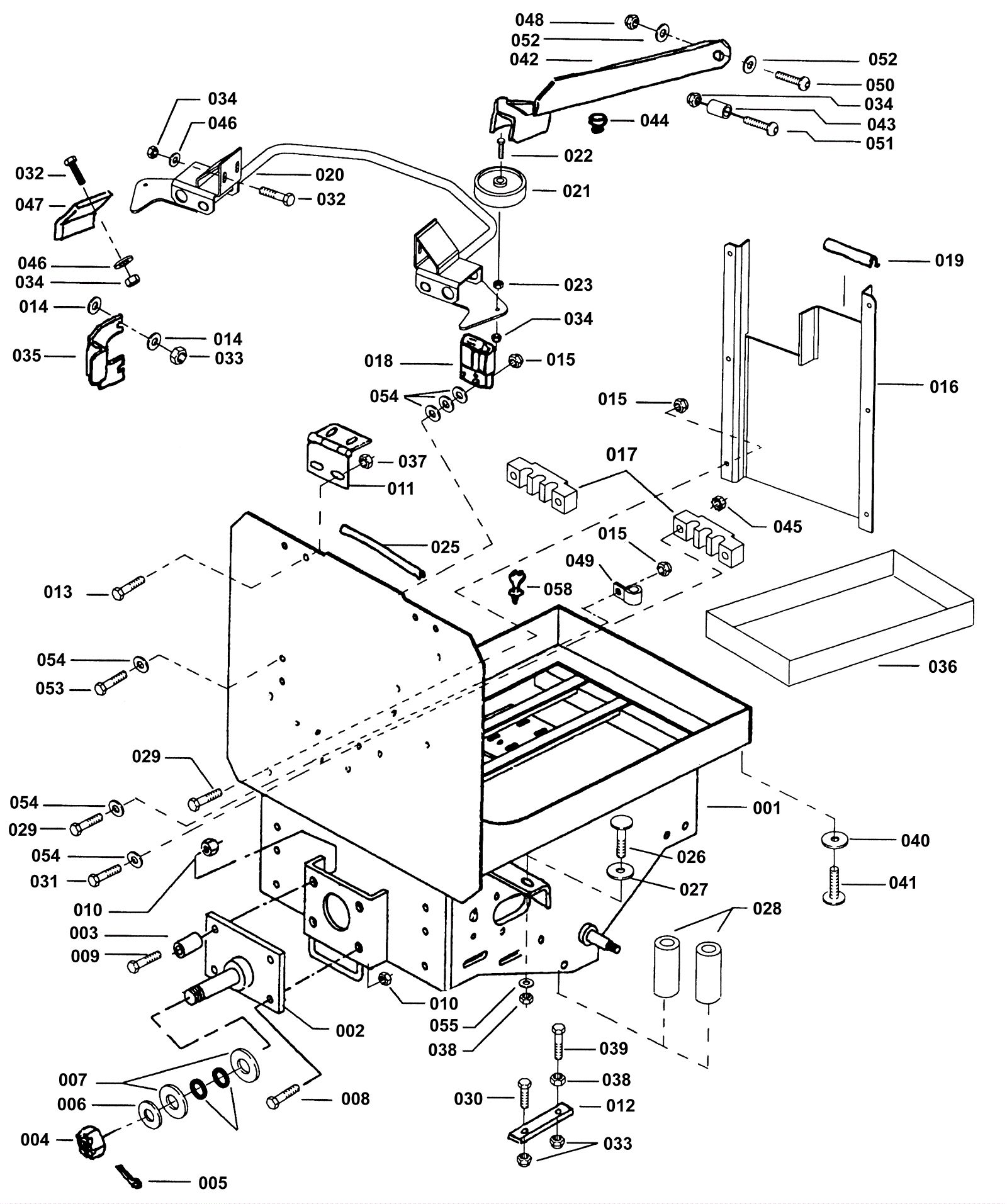

TRACKER SWIFT Rear Frame Group

#PartDescriptionPriceReqNotesAvailability
001 173-3583 Rear frame weldment (OBSOLETE) $2,434.14 1 usually ships 1-5 days
002 173-3584 Pivot plate weldment $330.00 1 usually ships 1-5 days
003 173-5045 Spacer $73.84 2 usually ships 1-5 days
004 173-5046 Nut slotted $20.39 1 usually ships 1-5 days
005 173-3585 Cotter pin $0.99 1 usually ships 1-5 days
006 173-5047 Washer thrust $1.10 1 usually ships 1-5 days
007 173-5048 Washer fiber glide $56.95 2 usually ships 1-5 days
008 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 $1.36 2 ships same day
009 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated $2.51 2 ships same day
010 173-5058 Nut 1/2-13 elastic stop $2.97 4 usually ships 1-5 days
012 173-3587 Motor locator bar $20.57 1 usually ships 1-5 days
013 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
014 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 4 usually ships 7-19 days
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 9 ships same day
016 173-3588 Cable cover channel $169.40 1 usually ships 1-5 days
017 173-3589 Cable retainer $9.24 2 usually ships 1-5 days
018 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
019 173-3591 Edging $3.30 1 usually ships 1-5 days
020 173-3592 Rear guard weldment $289.98 1 usually ships 1-5 days
021 189-0326 Bumper wheel $29.04 2 usually ships 11-24 days
022 173-3937 Bolt 3/8-16 x 2 hex head $1.98 2 usually ships 7-19 days
023 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
024 173-3593 O-ring (OBSOLETE) $2.66 2 usually ships 1-5 days
025 173-3594 Edging $3.30 1 usually ships 1-5 days
026 N/A Not available Call for price 2 (not available) usually ships 3-26 days
027 173-3596 Tank shim (OBSOLETE) Call for price 2 usually ships 1-5 days
028 173-3597 Vinyl tubing $0.99 usually ships 1-5 days
029 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 7 ships same day
030 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 1 ships same day
031 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
032 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
033 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
034 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 11 usually ships 7-19 days
035 173-3598 Guard harness plate $62.15 1 usually ships 1-5 days
036 173-3599 Battery tray $279.40 1 usually ships 1-5 days
037 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
038 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
039 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 1 ships same day
040 173-3600 Drain valve $13.31 1 usually ships 1-5 days
041 173-1577 Tree clip $5.61 1 usually ships 7-19 days
042 173-3601 Tank support weldment $363.00 1 usually ships 1-5 days
043 173-1591 Spacer $45.21 1 usually ships 1-5 days
044 173-3602 Rubber bumper (OBSOLETE) $5.62 1 usually ships 7-19 days
045 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
046 999-0033 Washer 7/16 SAE flat $0.99 8 ships same day
047 173-3603 Shim plate $40.37 2 usually ships 1-5 days
048 173-3886 Nut 1/2-13 lock thin $2.85 1 usually ships 1-5 days
049 173-3402 P clamp $1.43 1 usually ships 1-5 days
050 999-1917 Screw 1/2-13 x 1 button socket cap SS $12.85 1 ships same day
051 999-0592 Screw 3/8-16 x 1 button head socket plain finish $0.99 1 ships same day
052 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 2 usually ships 1-5 days
054 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
055 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
058 N/A Not available Call for price usually ships 3-26 days
