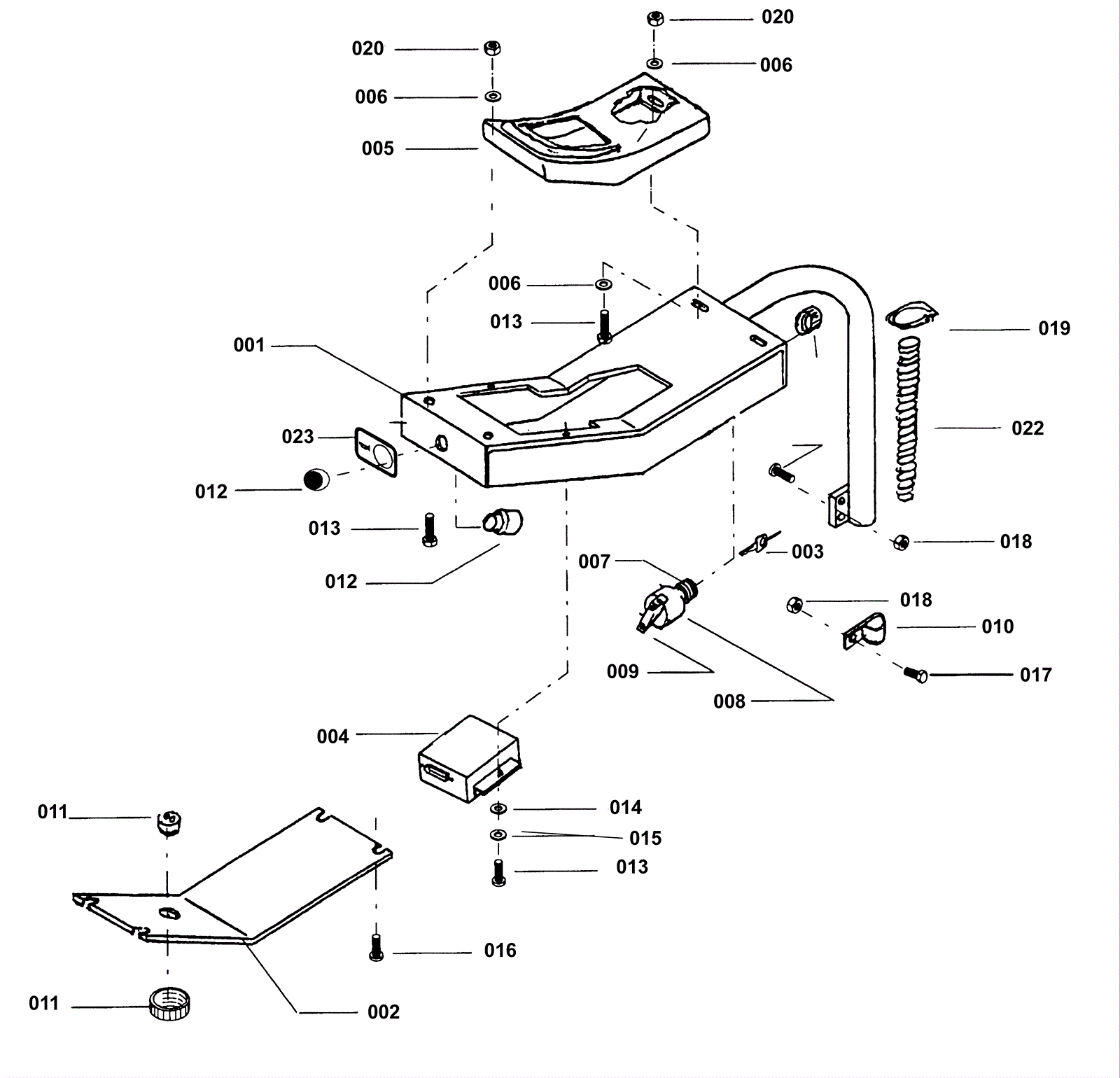

# | Part | Description | Price | Req | Notes | Availability |
001 |
173-3495
|
touch pad housing (OBSOLETE) |
$393.76
|
1 |
|
usually ships 1-5 days |
002 |
173-3496
|
touchpad cover |
$57.20
|
1 |
|
usually ships 1-5 days |
003 |
173-3497
|
Ignition switch key |
$80.85
|
1 |
|
usually ships 7-19 days |
004 |
173-3498
|
touch pad assembly |
$1,510.01
|
1 |
|
usually ships 1-5 days |
005 |
173-3499
|
switch machined panel from S/N1000017666 |
$61.60
|
1 |
|
usually ships 1-5 days |
006 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
6 |
|
ships same day |
007 |
173-1906
|
Main rotary key switch |
$47.63
|
1 |
|
usually ships 1-5 days |
008 |
173-3500
|
contract block clip switch (OBSOLETE) |
$9.32
|
1 |
|
usually ships 7-19 days |
009 |
173-3501
|
contact module N.O switch |
$53.64
|
1 |
|
usually ships 1-5 days |
010 |
173-3112
|
P clamp |
$9.74
|
1 |
|
usually ships 7-19 days |
011 |
173-3258
|
buzzer continuous |
$32.78
|
1 |
|
usually ships 1-5 days |
012 |
173-3502
|
Momentary switch |
$77.55
|
1 |
|
usually ships 7-19 days |
013 |
999-0322
|
Screw 10-24 x 1/2 socket head alloy plain finish |
$0.99
|
6 |
|
ships same day |
014 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
2 |
|
ships same day |
015 |
999-0053
|
Washer #10 split lock plain finish |
$0.99
|
2 |
|
ships same day |
016 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
017 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
$1.87
|
3 |
|
ships same day |
018 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
$0.99
|
3 |
|
ships same day |
019 |
173-3236
|
Wire tie |
$6.77
|
4 |
|
usually ships 7-19 days |
020 |
173-5033
|
Nut 10-24 elastic |
$0.99
|
4 |
|
usually ships 1-5 days |
021 |
173-1529
|
Windsor service card (OBSOLETE) |
$6.05
|
1 |
|
usually ships 1-5 days |
022 |
173-3503
|
loom sleeve |
$15.73
|
1 |
|
usually ships 1-5 days |
023 |
173-3504
|
Horn overlay |
$31.46
|
1 |
|
usually ships 1-5 days |
024 |
173-1530
|
Service card band |
$3.70
|
1 |
|
usually ships 1-5 days |
