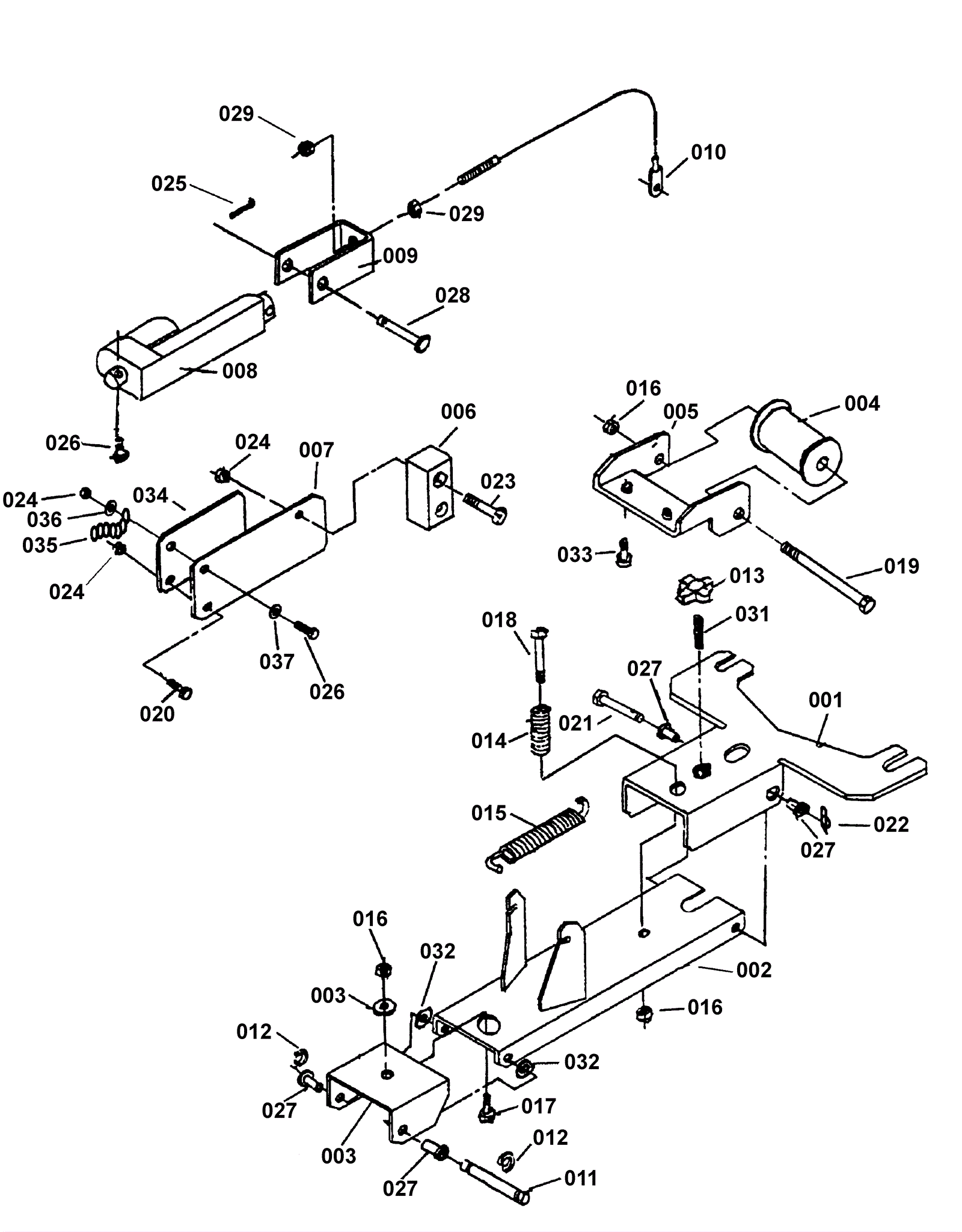

QUICK 32 Squeegee Lift Group

#PartDescriptionPriceReqNotesAvailability
001 173-3419 Squeegee mount weldment $130.90 1 usually ships 1-5 days
002 173-3420 Squeegee trailing arm weldment $187.37 1 usually ships 1-5 days
003 173-3421 pivot channel $56.65 1 usually ships 1-5 days
004 173-3423 Squeegee lift pulley $1.10 1 usually ships 1-5 days
005 173-3422 pulley mount $52.91 1 usually ships 1-5 days
006 173-3424 wear bar $61.72 2 usually ships 1-5 days
007 173-3425 centering spring $95.34 2 usually ships 1-5 days
008 173-1731 actuator assembly $1,243.00 1 usually ships 1-5 days
009 173-3426 cable end bar $44.55 1 usually ships 1-5 days
010 173-3427 Squeegee lift cable (OBSOLETE) $86.35 1 usually ships 7-19 days
011 173-3428 retaining rod $10.89 1 usually ships 1-5 days
012 173-3429 3/8 snap ring (OBSOLETE) $2.66 2 usually ships 7-19 days
013 173-3430 3/8-24 insert knob $32.78 1 usually ships 1-5 days
014 173-3431 Spacer $35.20 1 usually ships 1-5 days
015 173-3432 Extension spring $9.96 2 usually ships 1-5 days
016 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 3 usually ships 7-19 days
017 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
018 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
019 999-1406 Bolt 3/8-16 x 4 1/2 hex head zinc $1.90 1 usually ships 1-5 days
020 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
021 173-3401 Clevis pin $34.32 1 usually ships 7-19 days
022 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
023 173-2525 Bolt 1/4-20 x 1 1/4 hex head plated $0.99 4 usually ships 1-5 days
024 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
025 173-1108 Cotter 3/32 inch x 3/4 inch plated pin $0.99 1 usually ships 1-5 days
026 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
027 173-1665 Flanged bearing $6.11 4 usually ships 7-19 days
028 173-3433 Clevis pin $5.23 1 usually ships 1-5 days
029 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
030 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
031 173-3434 ss stud $26.64 1 usually ships 1-5 days
032 173-3995 Washer 1/2 Fiber Glide $20.79 2 usually ships 1-5 days
034 173-3435 backing spring $92.55 2 usually ships 1-5 days
035 173-1667 #10 7-links grounding chain (OBSOLETE) $18.87 1 usually ships 1-5 days
036 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
037 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
