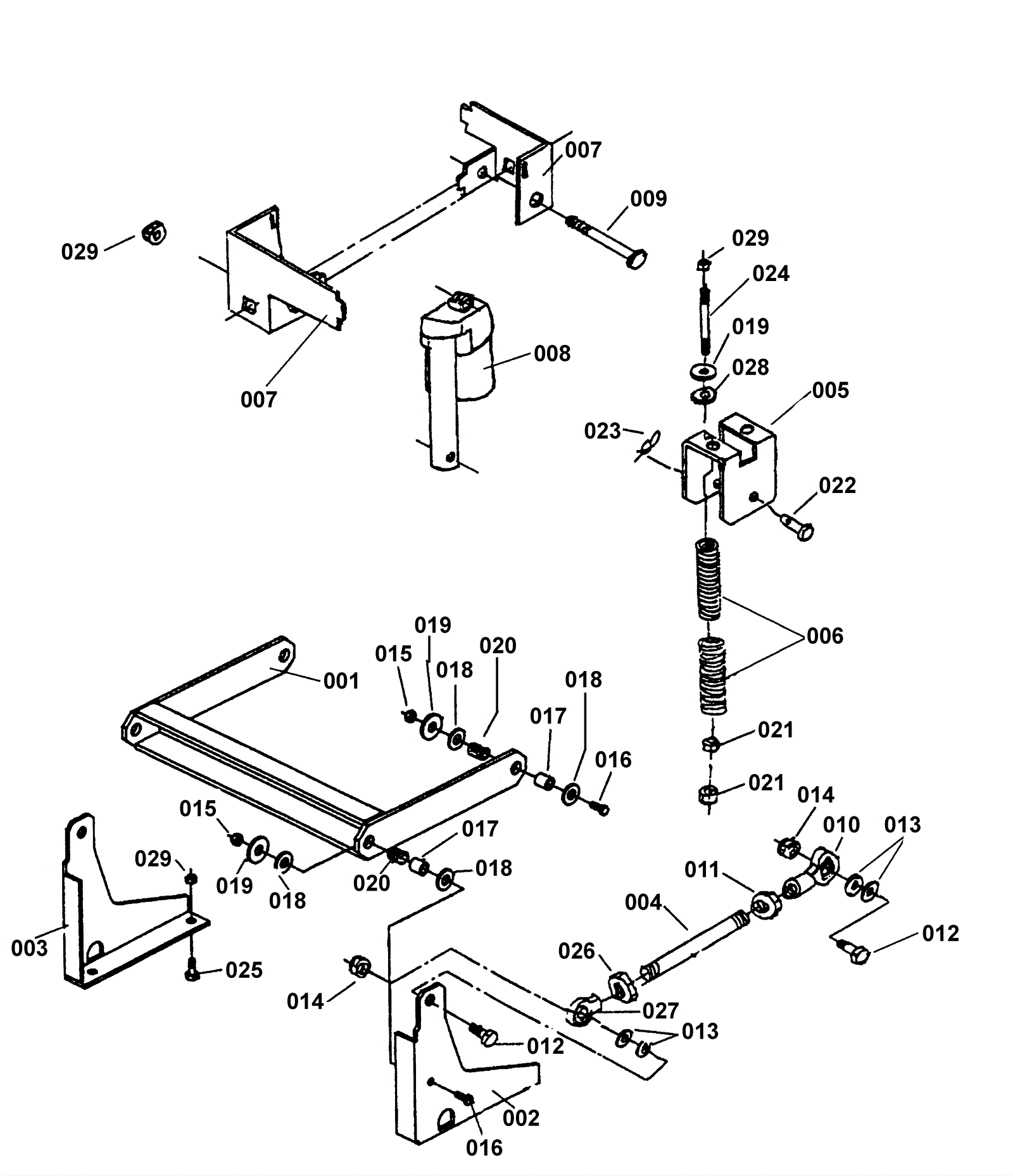

QUICK 32 Scrub Head Lift Group

#PartDescriptionPriceReqNotesAvailability
001 173-3348 scrub head trailing arm weldment (OBSOLETE) $189.37 1 usually ships 1-5 days
002 173-3349 scrub head mount left angle (OBSOLETE) $98.97 1 usually ships 1-5 days
003 173-3350 scrub head mount right angle (OBSOLETE) $98.97 1 usually ships 1-5 days
004 173-3351 trailing arm rod (OBSOLETE) $72.12 2 usually ships 1-5 days
005 173-3352 spring retainer channel (OBSOLETE) $45.49 1 usually ships 1-5 days
006 173-1776 Compound spring $27.01 4 usually ships 1-5 days
007 173-3353 actuator mount channel $60.50 2 usually ships 1-5 days
008 173-1598 24V actuator $750.20 1 usually ships 7-19 days
009 999-1406 Bolt 3/8-16 x 4 1/2 hex head zinc $1.90 1 usually ships 1-5 days
010 173-3354 1/2-20 UNF rod end $21.12 2 usually ships 1-5 days
011 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
012 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 4 ships same day
013 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 8 usually ships 1-5 days
014 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
015 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 4 usually ships 1-5 days
016 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
017 173-3355 Bearing fiber $23.21 4 usually ships 1-5 days
018 173-3995 Washer 1/2 Fiber Glide $20.79 8 usually ships 1-5 days
019 999-0033 Washer 7/16 SAE flat $0.99 6 ships same day
020 173-1591 Spacer $45.21 4 usually ships 1-5 days
021 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 4 ships same day
022 173-1595 Clevis pin (OBSOLETE) $3.96 1 usually ships 5-16 days
023 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
024 173-3356 scrub head lift rod (OBSOLETE) $32.64 2 usually ships 1-5 days
025 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
026 999-0134 Nut 1/2-20 hex jam plain finish $0.99 2 ships same day
027 173-3357 1/2-20 UNG rod end $20.24 2 usually ships 1-5 days
028 173-3996 Washer 3/8in ID x 1x 0.1 neoprene $3.96 2 usually ships 1-5 days
029 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 7 ships same day
030 173-3169 Wire tie $1.03 6 usually ships 1-5 days
